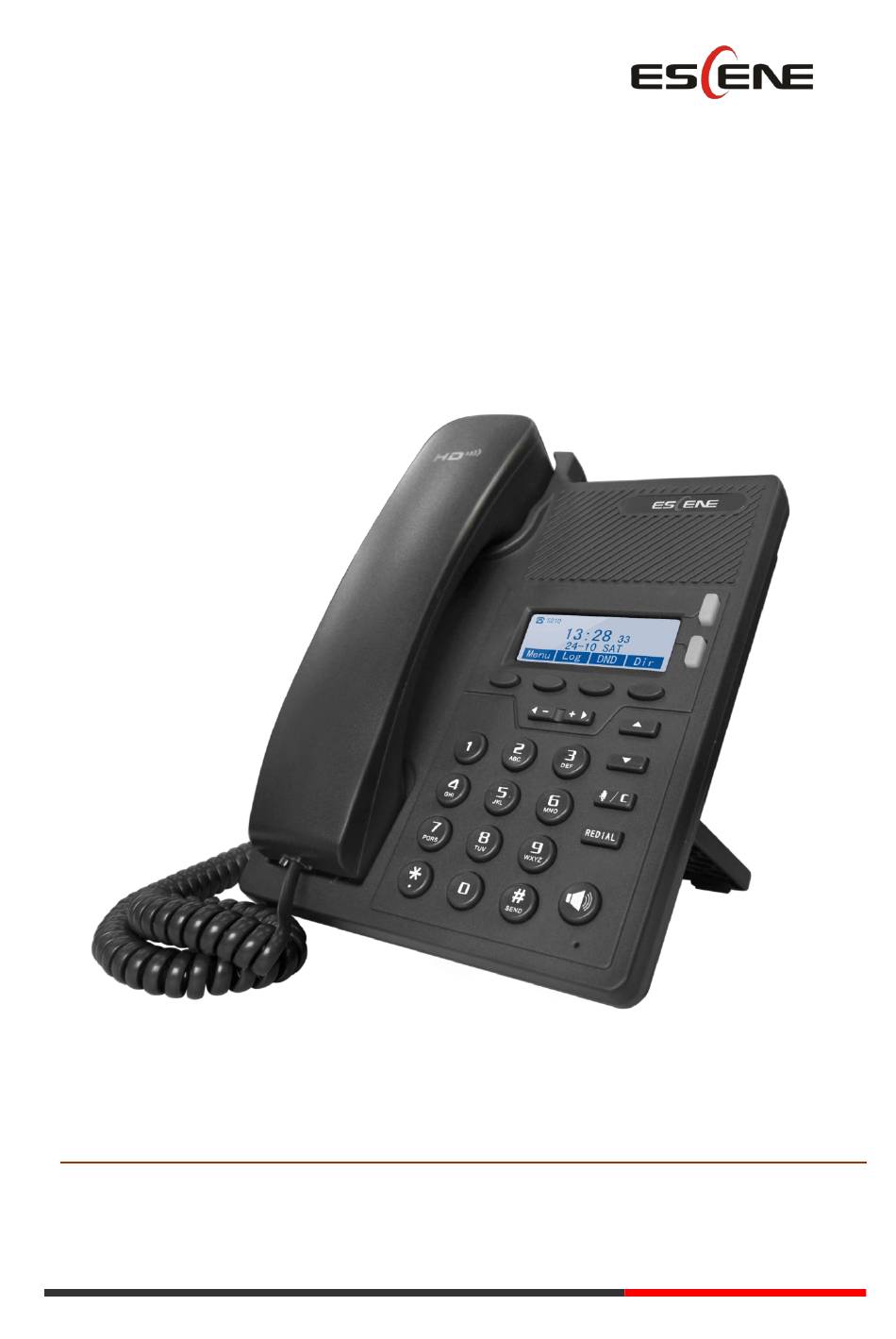

- Page 1 ES205 IP Smart VoIP Phone User Manual www.escene.cn/en/ Escene Communication...
-
Page 2: Table Of Contents
3.7.5 Searching Phone Book .................... 22 3.7.6 Cannot Set the Features with Keypad ..............23 4. WEB User Interface ........................23 Main Interface-Phone Status ....................23 4.1 Net Work ........................... 24 4.1.1 LAN Port ......................... 24 4.1.2 PC Port ........................26 www.escene.cn/en/ Escene Communication... - Page 3 8.2.1 Log .......................... 47 8.2.2 Auto Provision ......................47 9 Password ............................49 10 WEB Other Settings or Information - Appendix ................. 49 10.1 WEB User ......................... 49 10.2 Multi-Language ....................... 49 10.3 Note Tips ......................... 50 www.escene.cn/en/ Escene Communication...
-
Page 4: Getting Started
1. Getting Started About ESCENE ES205 is an compact office IP phone with rich features. It has 128*64 HD graphic LCD up to 4-line display; it also has HD Sound Quality, unique art design, dem ountable bracket to provide multi-angle, 4 programmable keys, and friendly user inte rface to satisfy users's communication needs. - Page 5 POE(Power over Ethernet) IEEE802.3af NOTES：Pls make sure your phone support POE feature. You can check the label on the back of the phone , for example "Model: ES205-PN Rev:2.1.0", the P means it support POE feature. www.escene.cn/en/ Escene Communication...
-
Page 6: Phone User Interface
Ethernet cable and switch/hub is POE compliant. 3. Phone User Interface 3.1 Hardware Component Instructions The main hardware components of the ES205 IP Phone are the LCD screen and the keypad. Hardware component instructions of the ES205 IP Phone are: ITEM DESCRIPTION www.escene.cn/en/... - Page 7 NOTE：MUTE&C key isn’t support programmable function. Speaker Key Toggles the hands-free speaker phone mode. Press and hold can change to headset mode High sensitive pickup Mic. Keypad Provides the digits, letters and special characters in context-sensitive applications. Speaker HD speaker. www.escene.cn/en/ Escene Communication...
-
Page 8: Phone Screen Display Features
Labels automatically to identity their context-sensitive features Screen Top Icon The Screen Top Icon from left to right is: : Handset Hand on status :Speaker Hand on status :Headset Hand on status :Call MUTE :Missed Call :Call Forward :Text Message www.escene.cn/en/ Escene Communication... -
Page 9: Basic Network Settings
Press LAN Port to login in to the menu Select "PPPoE" mode Press "Enter" key Set the User Name\Password\web port\telnet port Press "Save" key to make it work Tips "Network is changed, press OK reboot " www.escene.cn/en/ Escene Communication... -
Page 10: Sip Account Settings
3.4 SIP Account Settings ES205 IP phone makes calls based on sip accounts, It can support Single account or Multi-account, Each account can be configured to the different SIP server. If you want to… Then... Create an SIP account --1) Select “System setting” > “Advanced setting”；... -
Page 11: Basic Features
E.g, you want to call to consult some of the services, but you don't want to be harassed. Enable Anonymous Call Press MENU> Function Setting> Anonymous --Press Enter button , -You can select which Account want to use, enable/disable this feature and enable/disable reject anonymous www.escene.cn/en/ Escene Communication... -
Page 12: Redial
Phone Book", “Enterprise Phone Book”, “LDAP” and “Black List”, - or press Navigation UP/DOWN button (in idle status) > select the desired contact. --2) Then press button. NOTE: You also can press the "DIR" to login this menu when in the idle. www.escene.cn/en/ Escene Communication... -
Page 13: Multi-Lines To Answer The Call
To end a call, hang up. Here are some more details. NOTE: Press and hold the speaker key can change to Handset feature. Hang up while using the --Return the handset to its cradle, Handset -or press End Hang up while using the --Press Speaker button, www.escene.cn/en/ Escene Communication... -
Page 14: Using Hold And Recover (Switch Calling Line)
3.5.10 Transferring Calls Transfer redirects a connected call. The target is the number to which you want to transfer the call. Talk to the transfer --1) Press TRANSFER button or press XFER; recipient before --2) Enter number; www.escene.cn/en/ Escene Communication... -
Page 15: Using Mute
Enable DND on a Press MENU button > “Function setting” > “DND” > (select line) single line “Enable” Disable DND --Global DND enabled, press to disable global DND; --Line DND enabled, press twice www.escene.cn/en/ Escene Communication... -
Page 16: 3-Way Conference
You can setting Voice Mail function in Menu> Message. Voice Mail --1)Dial the voice mail number, e.g *97 --2)Enter the User Password --3)It will login into the voice mail server. You need to follow the IVR to do it. www.escene.cn/en/ Escene Communication... -
Page 17: Advanced Settings
-or press "OK" button > “Phone book”>“Personal phone book>View All”; --2) Select “Add contact”, press "OK" button; --3) Use the navigation keys to select content, press "OK" button to set and modify: -Name: set the name of contact, www.escene.cn/en/ Escene Communication... - Page 18 --3) Select the group you want to modify, press the "OK" button to set and modify, press "Save" to save the change Delete group --1) Press "DIR" soft key, -or press "MENU" button > “Phone book”>“Personal phone book>View All”, -or press "OK" button > “Phone book”>“Personal phone www.escene.cn/en/ Escene Communication...
- Page 19 --3) Press "Add" and input the name\office number\mobile number\other number\SIP account who what you want to add into the Black List. View the Contact --1) Press "DIR" in the idle, from Black List -or press "MENU" or "OK" button > “Phone book”>“Black List”, www.escene.cn/en/ Escene Communication...
-
Page 20: Using Call Logs
SayHi series IP Phone can through two ways configuration it, one is setting in MENU, another is setting in website. Here just description in MENU. NOTES: When you want to input the IP address like ".", it was replaced by the "*". www.escene.cn/en/ Escene Communication... -
Page 21: Language Setting
English\French\Italian\Polish\Protuguese\Runssian\Spanish\Turki sh\Chinese --3) After you finish select, press Save to make it work. 3.7.2 Message ES205 have Message feature. It will display in the LCD when it has a New Message. --1）Press MENU button； Create a Message --2）Select "Messaging" --3）Voice Message: Setting the Voice Message code in here. -
Page 22: Ring Tone And Volume Setting
“Function Setting”, you can select " T9 search" > --2) Then press Enable/Disable and Save. --3) When you back to idle, you can use the digital keypad to search the contact. NOTES: The Search Phone Book setting default is Accurate Search. www.escene.cn/en/ Escene Communication... -
Page 23: Cannot Set The Features With Keypad
(case-sensitive) and the password is root (case-sensitive). Main Interface-Phone Status Here you can see as below information: System Run Time, Register Status, Network Status, System Information, ITEM DESCRIPTION System Run Time The phone system normal running time. www.escene.cn/en/ Escene Communication... -
Page 24: Net Work
Hardware ID, Kernel Version, Auto-Provision Server URL, TFTP Server IP. 4.1 Net Work 4.1.1 LAN Port Basic ITEM DESCRIPTION Network Connection Mode Network Connection Mode has DHCP, Static IP, PPPoE. DNS Settings Select the DNS mode that you want. www.escene.cn/en/ Escene Communication... - Page 25 The default Telnet port is 23,if you want to change it(for example change it to 2003). You must input IP and Telnet port to login the manage page (for example telnet 192.168.0.200:2003).It will take effect on next reboot. www.escene.cn/en/ Escene Communication...
-
Page 26: Pc Port
Router feature is for the phone PC Port. You must input IP address (it’s equivalent to a gateway) and Net mask. If you want to use DHCP function, please turn it on, input start IP and end IP. www.escene.cn/en/ Escene Communication... -
Page 27: Advanced
When using VLAN Setting option, you can set several parameters as follow: VLAN Setting Enable VLAN You can enable/disable vlan for phone and pc The vlan ID you want the phone or pc to join [LAN/PC Port] www.escene.cn/en/ Escene Communication... -
Page 28: Sip Account
Pls contact us to buy another model that can supports PSTN. Amount Of Line The line key of account used, default is 2 Account Used Display Name It is showed as Caller ID when making a phone call www.escene.cn/en/ Escene Communication... -
Page 29: Call
Share with the line. BLA Number BLA Number Subscribe Period Subscribe expire time. Register Expire Time IP phone automatically registered every time SIP Transport There are UDP/TCP/TLS three options Ring Type Select this account ringing type. 5.2 Call www.escene.cn/en/ Escene Communication... -
Page 30: Security
UDP Keep-alive Interval Default is 30 second. 5.3 Security ITEM DECSRIPTION Security SIP Encryption Enable/Disable SIP encryption. RTP Encryption Enable/Disable RTP encryption. Encryption Algorithm The encryption algorithm at this time we only have RC4. Encryption Key The key with encryption. www.escene.cn/en/ Escene Communication... -
Page 31: Phone Setting
Call List Save You can choose to save the call list into the phone or not. Network Packet When select on, then you can capture the phone’s packet use notebook Mirroring which connect to pc port of the phone www.escene.cn/en/ Escene Communication... -
Page 32: Time Settings
You can use 24 hour time format or 12 hour time format Time Format You can choose the appropriate time format. Date Format Time Zone-GMT You can select different time zone for the phone Manual Setting Setting time manually. www.escene.cn/en/ Escene Communication... -
Page 33: Call
Open this feature, the phone light(Message) will be bright when it get message. Open this feature, it will be ringing when it get message. Play Voice Mail Tone Turn on or off the display with Miss call in the phone LCD. Miss Call Display www.escene.cn/en/ Escene Communication... -
Page 34: Voip Call Forward
If the phone was busy working, the call will be transfer to others. If No Answer If the phone was no answer, the call will be transfer to others. Ring Frequency The ring frequency with the VOIP Call Forward. www.escene.cn/en/ Escene Communication... -
Page 35: Qos
Ring Volume The ring volume default is Lv3, the range is 0~9. Handset Volume The handset volume default is Lv5, the range is 1~9. Speaker Phone Volume The speaker volume default is Lv5, the range is 1~9. www.escene.cn/en/ Escene Communication... - Page 36 Please upload a ring tone with G711A audio coding, Maximum 10 rings and the total sizes must less than 150k. Audio Codec Use the navigation keys to highlight the desired one in the Enabled/Disable Codes list, and press the to move to the other list. Jitter Buffer www.escene.cn/en/ Escene Communication...
-
Page 37: Line Keys
You can use multicast paging to quickly and easily forward time sensitive announcements out to people within the multicast group. Call Park You can use call park feature to place a call on hold, and then retrieve the call www.escene.cn/en/ Escene Communication... -
Page 38: Function Keys
Soft Keys: Soft key is the key with below display in the LCD. You can change it for your mind to the other features in many all kinds of status. As below example, when you dialing with someone, the LCD display soft key is Send \Del \Empty\End, Empty means nothing in it. www.escene.cn/en/ Escene Communication... -
Page 39: Dial Plan
Enable this feature will limit the dial length. Default is 25. No Dial Timeout Setting the range with no dial timeout, default is 5. Dial Rule Select the Add Rule button to add dial rule, pls see as below detail. www.escene.cn/en/ Escene Communication... -
Page 40: Ip Strategy
There have two option, Enable or Disable. NOTES: If you want to know more detail about Dial Rule, pls find it in the official website to download the specific document. HTTP://www.escene.cn/en. 6.7 IP Strategy You can use IP Strategy feature to make a list which can be set to only allow the incoming call on the list. -
Page 41: Contact
You can edit or move this contact to Ban List after you select You can download and save this contact to PC after you select 7.3 LDAP NOTES: If you want to know more detail about LDAP, pls find it in the office website to www.escene.cn/en/ Escene Communication... -
Page 42: Ban List
HTTP://www.escene.cn/en. As below figure is an example. e.g. LDAP Name Filter:(sn=%s) LDAP Number Filter:(telephoneNumber=%s) Server Address:192.168.0.65 BASE:DC=ldap,DC=escene,DC=com User Name：bb@ldap.escene.com Pass Word：escene_2012 LDAP Name Attributes 1:sn LDAP Name Attributes 2:cn LDAP Number Attributes 1:telephoneNumber 7.4 Ban List You can add, edit and delete contact in a Ban List on this web page . -
Page 43: Phone Maintenance
You can edit or move this contact to Contact after you select 8 Phone Maintenance 8.1 Basic NOTES: Don't cut off the electricity or network cable when doing upgrade in the below ways! 8.1.1 HTTP Upgrade You can upgrade the software, kernel and configuration etc. files by HTTP. www.escene.cn/en/ Escene Communication... -
Page 44: Ftp Upgrade
Used for the administrator to find out or making sure the problem with this equipment. All Config File All Config File includes: Configuration, Extern, Log, XML Phone book, Enterprise Phone Book. 8.1.2 FTP Upgrade You can upgrade the software, kernel and configure files by FTP. www.escene.cn/en/ Escene Communication... -
Page 45: Tftp Upgrade
Used for updating/backup the expansion of the phone [NOTES：The mode doesn't support this feature] NOTES: It's not necessary to input filename when doing backup Configuration, Phone Book, EXT Module. 8.1.3 TFTP Upgrade You can upgrade the software, kernel and configure files by TFTP. www.escene.cn/en/ Escene Communication... -
Page 46: Default Setting
You can load the phone to the factory default setting in default setting option. Press the ‘Reset to Factory Setting’ option, the phone will load to factory default setting on next reboot. 8.1.5 Reboot You can use reboot option to reboot the phone. www.escene.cn/en/ Escene Communication... -
Page 47: Advanced
When you open this auto provision feature, the phone will do auto provision after it detect a different software or kernel (Higher or Lower) which are putted on the TFTP,HTTP,HTTPS,FTP, server. For the detailed information about auto provision, you can find it in the official website: HTTP://www.escene.cn/en www.escene.cn/en/ Escene Communication... - Page 48 Enable/Disable the booting checking feature. booting checking Auto Provision Frequency Used for setting the time interval for auto provision Auto Provision Time Used for the specific time for auto provision Auto Provision Next Time Reset the Auto Provision Next Upgrading time. www.escene.cn/en/ Escene Communication...
-
Page 49: Password
10.1 WEB User In the upper right corner of the website page, you can select the user or logout. 10.2 Multi-Language In the upper right corner of the website page, you can select the language in the below list. www.escene.cn/en/ Escene Communication... -
Page 50: Note Tips
10.3 Note Tips In the right middle of the website page, there is a Note tips in every function page. Hope it can help you to know something about that. www.escene.cn/en/ Escene Communication...
