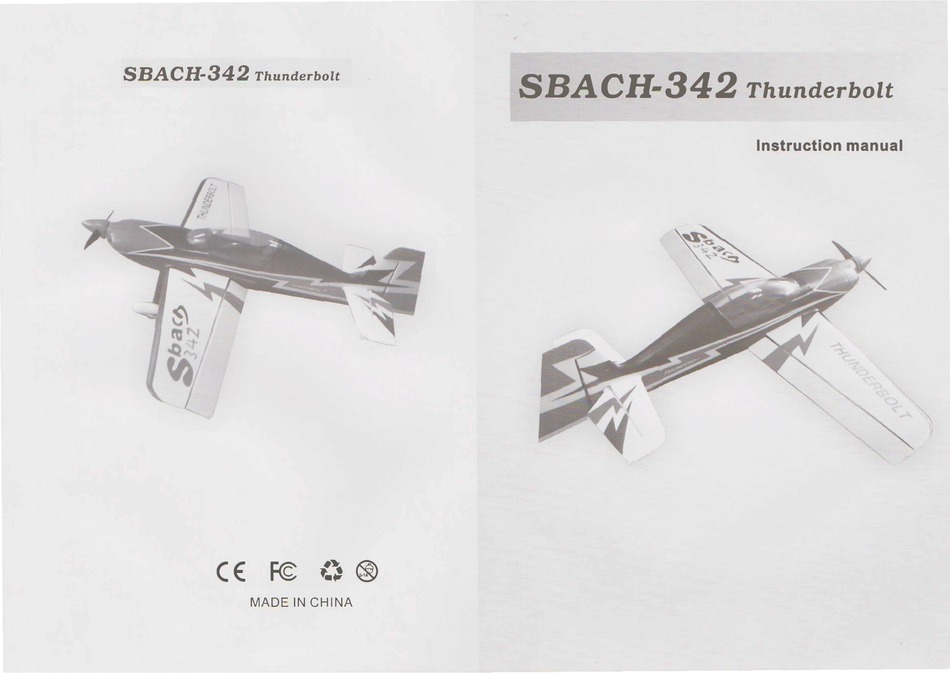

SBACH-342 SBACH-342 Thunderbolt Thunde1°bolt Instruction manual CE � t.l ® MADE IN CHINA...
Page 2
SBACH-342 Thunderbolt CONTENTS Brief introduction....... Ma in specifications ..........2 Product components ..........2 lPCS Elevator Servo 180mm Forward lPCS Rudder Servo 180mm Forward...
Page 3
SBACH-342 Thunderbolt Spare parts list Brief introduction High scaled design , removable horizontal tail, vertical tail an d main wing, making it very easy to assemble and transport. Easy operation, easy to control, so just enjoy yourself and have fun. Landing Gear Set Vertical Fin Horizontal Tail...
SBACH-342' Thunderbolt -----� 'Possible problems and solutions Statement Problem Diagnosis Solution 1.The "SBACH-342 Thunderbolt" is not a toy, it is only suitable for experienced pilots.Please keep in mind that you are responsible for the safe operation of this model , and any damage or harm you may cause while using it. 2.Please adjust and set up this plane correctly according to the instructions.
Page 5
Charger Indicator Status: Power light red: This indicates that power is connected. Charge light red: This indicates that the battery is charging. Charge light green: This indicates that the battery is fully charged. 1. Connect the charger to the 12v power supply, the power light indicator should now show red.
Page 6
Aileron reversing switch Elevator reversing switch Throttle reversing switch Power Switch Aileron reversing switch Elevator revering switch Throttle reversing switch...
