EPSON Stylus CX3100/3200

4.4.9 Power Unit Removal

1. Remove the Middle Housing. (See
2. Remove the ASF Unit. (See "ASF Unit Removal" on page
3. Remove the Main Board. (See "Main Board Removal" on page
4. Remove the three screws, namely, one C.B.S. 3x6 F/Zn and two C.B.P-TITE 3x8 F/Zn,
securing the Power Supply Unit to the Porous Pad Tray.
C.B.P-TITE 3x8 F/Zn
Power Unit

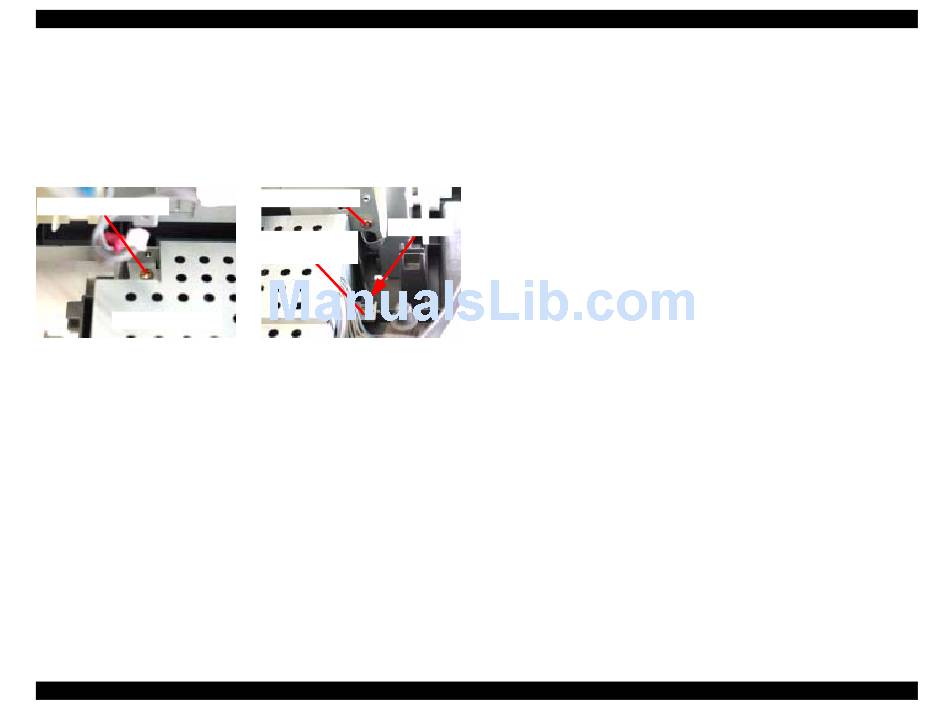

Figure 4-38. Power Supply Unit Removal
5. Remove the Power Supply Unit by detouring the hook on the Porous Pad Tray.
NOTE: Screw tightening torque: C.B.P-TITE 3x8 F/Zn (2 pcs.): 0.5-0.7Nm
C.B.S. 3x6, F/Zn (1 pc.): 0.5-0.7Nm
Disassembly and Assembly
"Middle Housing Removal" on page 44.)
48)
54)
C.B.S. 3x6 F/Zn
C.B.P-TITE 3x8
F/Zn
Hook
Disassembly of Printer
Revision A
56
