Once the Holder Shaft Unit has been removed or replaced, make
A D J U S T M E N T
R E Q U I R E D
adjustments in the order specified below:
1. Bi-D Adjustment (See p.63)
2. First Dot Position Adjustment (See p.67)
Disassembly and Assembly

4.4.7 Front Frame Unit Removal

1. Remove the Middle Housing. (See
2. Move the Carriage Unit to the home position by hand.
3. Remove the two screws (C.B.S. 3x6 F/Zn) securing the Front Frame Unit.
4. Lift the left end of the Front Frame Unit and move it to the left carefully for removal.
Spur Gear 60

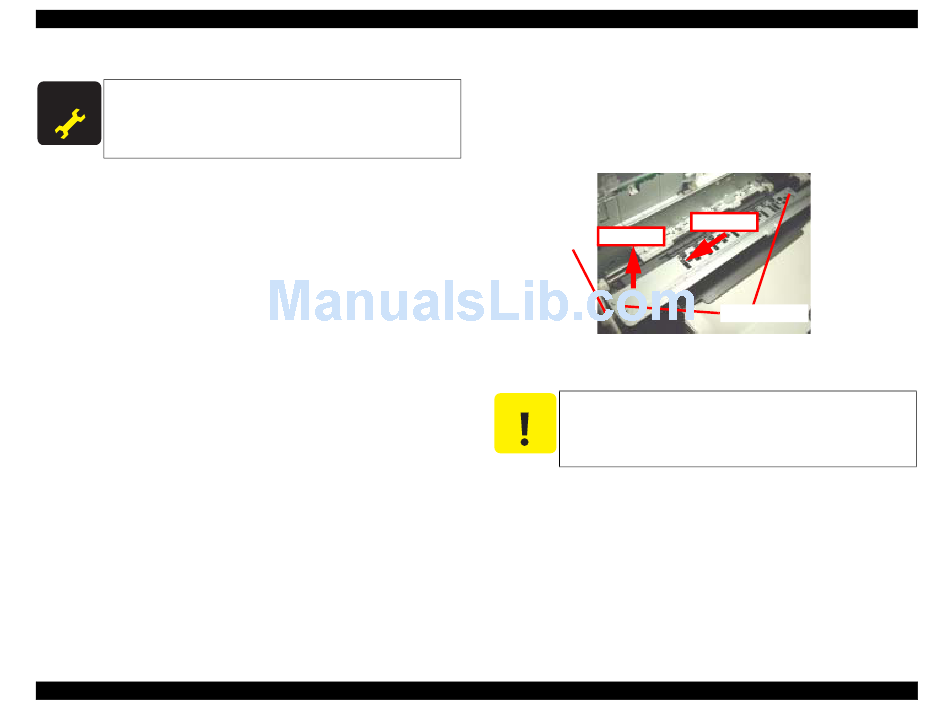

Figure 4-35. Removing the Front Frame Unit
When removing and installing the Front Frame Unit, take care not
C A U T I O N
to damage the Spur Gear 60.
Disassembly of Printer
"Middle Housing Removal" on page
Step 2
Step 1
C.B.S. 3x6
