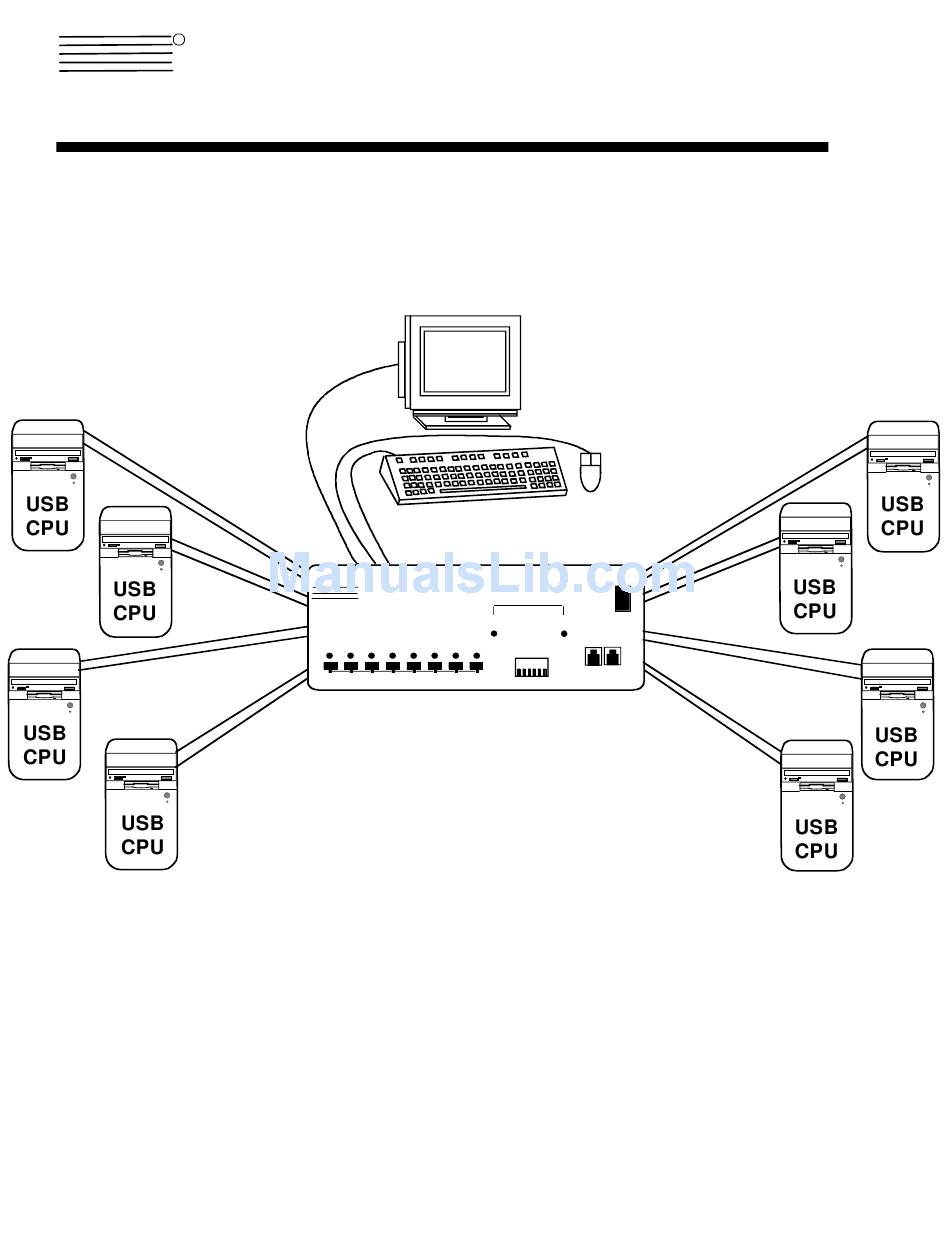

KEEMUX-USBV-xU (USB KVM Switch)
INSTALLATION / USER GUIDE
MAN035
Rev Date 1/7/2002
1275 Danner Dr
Tel:330-562-7070
Aurora, OH 44202
Fax:330-562-1999
www.nti1.com
VGA
Multi-Scan
Monitor
USB KEYBOARD
NTI
NETWORK
TECHNOLOGIES
INCORPORATED
KEEMUX-USBV-8U
SCAN
2
3
4
5
6
7
8
1
USB MOUSE
MODE
COM
MAND
1 2 3 4 5 6
ON
OFF
REMOTE
REMOTE
OUT
IN
