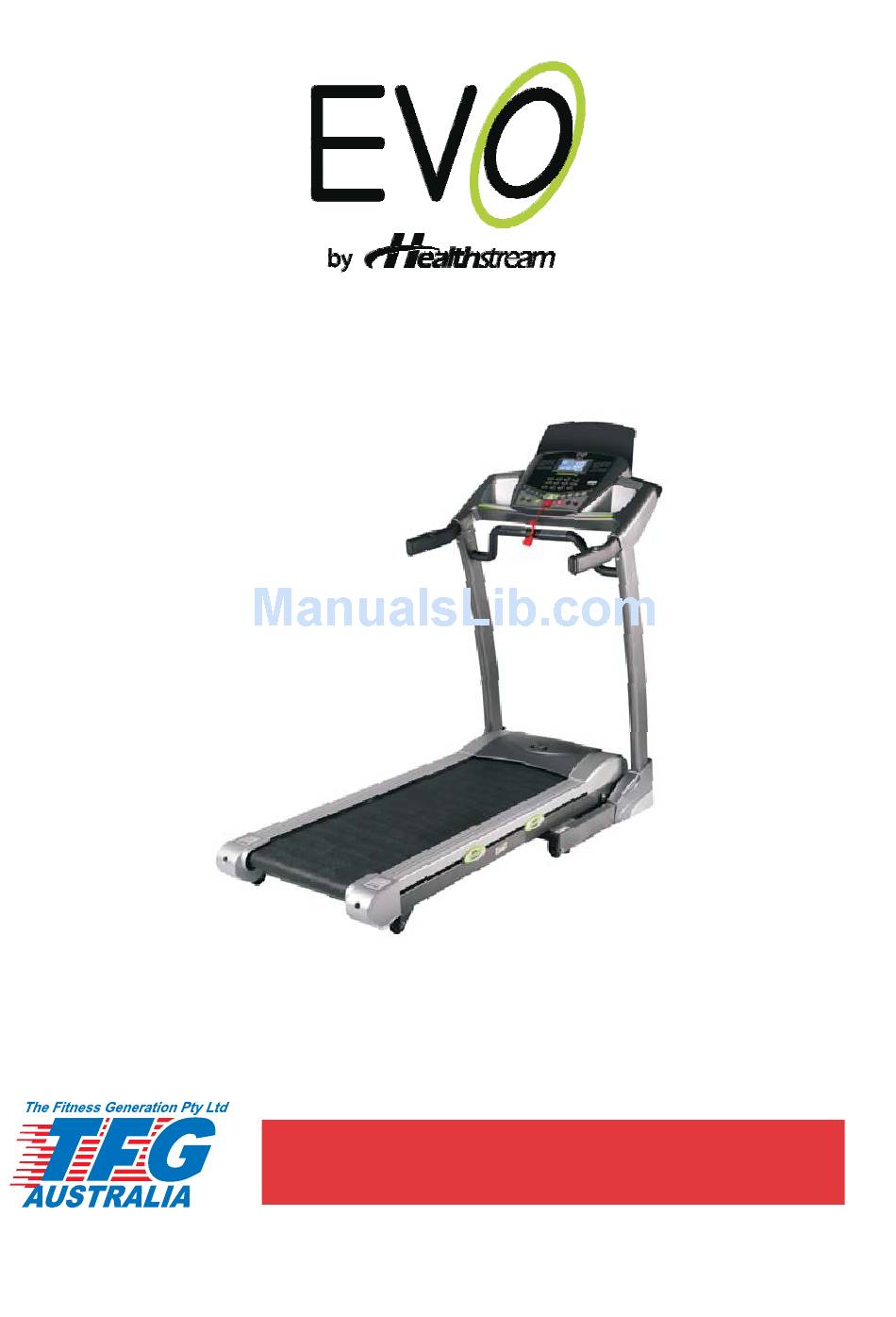

OWNER'S MANUAL
EV524T
RETAIN OWNER'S MANUAL
FOR FUTURE REFERENCE
Service call 1300 796 636
www.evofitness.net.au

Advertisement

Table of Contents
loading

Related Manuals for Evo EV524T

Summary of Contents for Evo EV524T

  • Page 1 OWNER’S MANUAL EV524T RETAIN OWNER'S MANUAL FOR FUTURE REFERENCE Service call 1300 796 636 www.evofitness.net.au...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ------------ p1~p2 WARM-UP & COOL DOWN ------------ UNPACKING & ASSEMBLY ------------ ASSEMBLY DRAWING ------------ p5-p6 FOLDING INSTRUCTION ------------ INCLINE MANUAL ------------ COMPUTER OPERATIONS ------------ p9-p13 Control panel function, control panel operation BELT ADJUSTMENT ------------- CARE & MAINTENANCE ------------- LUBRICATION MAINTENANCE ------------...

  • Page 3: Safety

    SAFETY IMPORTANT: Read all instructions and warnings before using the treadmill WARNING! : Do not attempt to use this treadmill with a voltage adapter. Do not attempt to use this treadmill with an extension cord. CONSULT A PHYSICIAN IMMEDIATELY Warning: before starting any exercise program consult your physician. This is especially important for individuals over the age of 35 or persons with pre-existing health problems.
  • Page 4 SAFETY TARGET HEART RATE ZONE You do not want to workout at your maximum heart rate. The recommended Heart Rate Zone is a percentage of your maximum heart rate. Between 60% and 75% of your maximum heart rate. Lower limit of Target Heart Rate Zone =maximum heart rate X 0.6 Upper limit of Target Heart Rate Zone =Maximum heart rate X0.75...

  • Page 5: Warm-Up & Cool Down

    WARM-UP & COOL DOWN WARM- UP& COOL-DOWN A successful exercise program consists of a warm up, aerobic exercise, and a cool down. Warming up is an important part of your workout, and should begin every session. It prepares your body for more strenuous exercise by heating up and stretching out your muscles.

  • Page 6: Unpacking & Assembly

    UNPACKING & ASSEMBLY WARNING!: Use extreme caution when assembling the treadmill. Failure to do so could result in injury NOTE: Each step number in the assembly instructions tells you what you will be doing. Read and understand instructions thoroughly before assembling the treadmill. 1.

  • Page 7: Assembly Drawing

    ASSEMBLY DRAWING Step 1 Step 2...
  • Page 8 Step 3 STEP 4 Note:Please check that all of the parts are assembled correctly and the plug is fitted into wall correctly...

  • Page 9: Folding Instruction

    Folding instruction Step 1 Lift up the machine deck and push forward until you hear a “click” which means that the safety casing has locked into the pneumatic cylinder. Unfolding instruction ruction Step 2 Push the deck slightly forward and STEP 2 kick lightly on the center of the pneumatic cylinder.
  • Page 10 INCLINE INSTRUCTION PICTURE 1 PICTURE S： INCLINE INSTRUCTION " 、 " “+”、“-” INCLINE+” INCLINE-” and on left handrail are the incline increase and decrease buttons . To adjust the incline while the treadmill is running you can also press the incline shortcut keys on the console.

  • Page 11: Computer Operations

    COMPUTER OPERATIONS CONTROL PANEL FUNCTION Window display:1 LCD window CALORIES: Indicates START: Start the treadmill STOP: Stop the treadmill estimated calories burnt SPEED: Indicates kph in 0.1 PULSE: estimated heart rate increments INCLINE: Indicates incline in percent of grade in 1% increments DISTANCE: Indicates km travelled in 0.1 increment,can be set to countdown TIME: Indicates time you workout,...
  • Page 12 By Pressing mode key under manual mode you can enter into time count down mode Time window lights up and indicates preliminary time 30:00. Press start to run the machine Press mode key under time count down mode enter into distance count down mode Window lights up and indicates preliminary distance 1.0 Pressing speed +/-...
  • Page 13 PROGRAM EXERCISE CHART...
  • Page 14 6.User programs . Programs setting: To start press the program until it shows the user program(U1,U2) choose one and enter into setting. . Press“Mode” enter into time set,the range is 5:00-99:00 : Press “Mode” again and Go straight to the quick speed or quick set incline button and select your desired speed or incline , press mode and your choice will be set, the next workout segment will flash, go through the same setup as you completed with segment “...
  • Page 15 11.Body Fat tester “ ” ， At the beginning state, press PROGRAM continue entering FAT body fat tester “ ”. “ ” window display FAT Press MODE enter (F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 )， “ ”,“ ” “ ”...

  • Page 16: Belt Adjustment

    BELT ADJUSTMENT BELT ADJUSTMENT You may need to adjust the running belt during the first few weeks of use. All running belts are properly set at the factory. It may stretch or be off-center after use. Stretching is normal during the break-in period.

  • Page 17: Care & Maintenance

    CARE & MAINTENANCE WARNING!:To prevent electrical shock, be certain the treadmill is turned off and unplugged before cleaning or routine maintenance. RUNNING BELT AND RUNNING DECK LUBRICATION For maximum treadmill life, this treadmill needs a routine lubrication as part of a general maintenance for the machine.

  • Page 18: Lubrication Maintenance

    LUBRICATION MAINTENANCE It is important to take good care of your treadmill deck (the walking surface underneath the belt). A good silicone lubrication will also improve the performance of your treadmill. NOTE: Use the silicone that is supplied with the treadmill. Additional HEALTHSTREAM silicone lubricant can be purchased from your retail store.
  • Page 24 HEX BOLT BOLT...
