Summary of Contents for Evo 425T

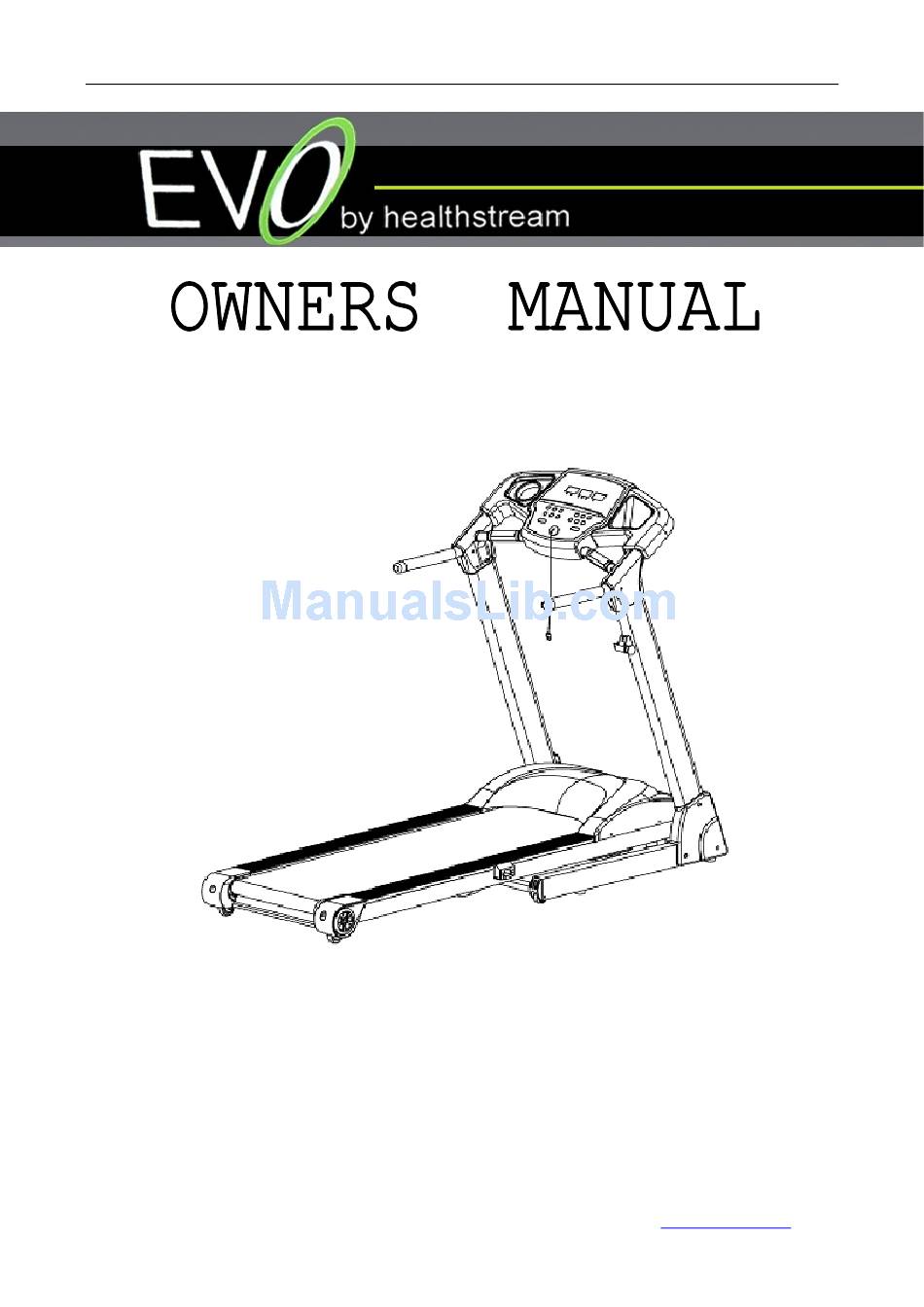

  • Page 1 425T TREADMILL www.evofitness.net.au...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Important-: Please read all instructions carefully before using your treadmill. Retain this owner’s manual for your future reference: WARNING: 1. Position the treadmill on a clear level surface. Do not place the treadmill on thick carpet as it may interfere with correct ventilation.

  • Page 3: Assembly Step

    TOOLS: 5# ALLEN WRENCH 5mm 1pcs 6# ALLEN WRENCH 6 mm 1pcs WRENCH W/SCREW DRIVERS= 13, 14, 15 1pcs Note: Do not plug into the mains power before completing the assembly ASSEMBLY STEP 1: Open the carton and remove all foam and cardboard packaging.
  • Page 4 ASSEMBLY STEP 4: 1. Connect the strand wire (101) from the computer (97) with wire (102) from right post. And slide the computer (97) into post (3 and 4). Do as the label (9) shows 2. To attach the computer (97) onto the post (3 and 4) use bolt (73) and (116) using the 5# Allen wrench.
  • Page 5 ASSEMBLY STEP 6: 1. Slide the left handlebar covers R (19) onto computer (97) handlebar, and then slide the left handlebar covers L (18) in. Put the left handlebar covers L and left handlebar covers R together 2. Repeat the same steps above with the right handlebar covers ASSEMBLY STEP 7: 1.
  • Page 6 ASSEMBLY STEP 8: 1. Bolt the left and right handlebar onto the computer with the bolt (87). ASSEMBLY STEP 9: 1. Slide the support (14) into the holes on console (97) www.evofitness.net.au...

  • Page 7: Folding Instruction

    FOLDING INSTRUCTION Pulling up: Mainframe as the picture show. Pulling up: www.evofitness.net.au...
  • Page 8 Pull the main frame up as the arrow shows until the lock (54) locates into the holes. Note: Do as the small pictures show. Pulling down: 1. Pull the locking system out, and hold (A) and push a little bit as the arrow shows.

  • Page 9: Technical Parameter

    Pulling down: 1. The main frame will fall down as the picture shows. TECHNICAL PARAMETER ASSEMBLED SIZE INCLINE LEVELS 1870*800*1400 (mm) 1-18KM/h SPEED RANGE FOLDABLE SIZE (mm) 900*800*1670 RUNNING BOARD 1380*450 140KG Max user weight SIZE (mm) NET WEIGHT 90KG MAX WEIGHT 0%-15% www.evofitness.net.au...

  • Page 10: Led Display

    SPEED TIME DISTANCE CALORIES PULSE INCLINE 3 LED DISPLAY OPERATION GUIDE www.evofitness.net.au...

  • Page 11: Window Display

    WINDOW DISPLAY: 1. “INCL/PULSE” window: This will display the user’s incline level and user’s pulse; the incline range is from 0 to 15%. The default setting will start at 0%. When the user places both hands over the palm pulse, it can track and display the user’s pulse after 5 seconds, the LED screen will indicate the pulse function.

  • Page 12: Start-Up Quickly (Manual)

    4. “STOP” button: This can be pressed during any program or alternatively pull safety key from unit. 5. “SPEED+” “SPEED-” Button: This will adjust your speed during any program setting in 0.1km/h intervals. 6. “INC+” “INC-” Button: This will adjust your incline during any program setting in 1-section intervals. 7.

  • Page 13: User Programs

    Time Interval Mode Time SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE USER PROGRAMS U1, U2. Besides the 16 preset programs, we also set up another 2 user’s programs for the user’s needs: U1, U2.

  • Page 14: Body Fat Program

    Press the “PROGRAM” button until it shows the users program（U1-U2）, then press the “mode” then enter the set-up for the first time. “SPEED+”, “SPEED-” is to change the speed, and the “INCLINE+” “INCLINE-” is to change the incline. Pressing “mode” means the completion of the first time setup and then enters to the second time setup until the ten setups are done.

  • Page 15: Safety Function

    Press “SPEED+” “SPEED -” to set F-1 – F4 (refer to the following chart), after that, press “MODE” to set F-5, grasp the palm pulse, the window will then display your body fat index (BMI) after 3 seconds. The body fat index is testing the relationship between height and weight. The body FAT test is suited to males and females.
  • Page 16 This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP.

  • Page 17: Maintenance Instructions

    more strain on our leg muscles and may mean you cannot train for as long as you would like. If you are also trying to improve your fitness you need to alter your training program. You should train as normal during the warm up and cool down phases, but towards the end of the exercise phase you should increase resistance, making your legs work harden than normal.

  • Page 18: Walking Belt And Deck Lubrication

    motorized treadmill frame or from underneath the belt. Warning：Always unplug the treadmill from the electrical outlet before removing the motor cover. At least once a year remove the motor cover and vacuum under the motor cover. Be careful not to interfere with any of the wires or circuits.

  • Page 19: Parts List

    PARTS LIST DESCRIPTION SPEC DESCRIPTION SPEC MAIN FRAME CUSHION PAD 3 BALCK MOVING WHEEL END BASE FRAME www.evofitness.net.au...

  • Page 20: Motor Base

    LEFT UPRIGHT FLAT FOOT PAD RIGHT UPRIGHT BLACK CUSHION PAD MIDDLE-EMPTY INNER MOTOR BASE TUBE CAP ADJUST BRACKET PLASTIC BEARING SUPPORTING BRACKET SLIDE BLOCK COMPUTER SUPPORT DRIVING BELT LABEL SAFETY LOCK Regular Washer LEFT END CAP COMPUTER COVER RIGHT END CAP COMPUTER PANEL TRANSFORMER LOWER CONTROL...
  • Page 21 BOLT M5*12 BOLT M5*16 BOLT M6*16 BOLT M4*6 BOLT M3*8 BOLT ST2.9*6.5 BOLT ST4.2*9.5 WASHER WASHER WASHER BOLT ST4.2*35 WASHER FLAT WASHER SCREW SCREW SCREW COMPUTER PULSE PULSE TOP WIRE PULSE MIDDLE WIRE COMPUTER TOP WIRE COMPUTER MIDDLE WIRE COMPUTER BOTTOM WIRE MAGNETIC SENSOR DC MOTOR INCLINE MOTOR...

  • Page 22: Troubleshooting Guide

    TROUBLESHOOTING GUIDE 1. Probable reason for the computer not working: The wire from computer to bottom control board is not correctly connected. Check that each wire from computer to control board, make sure they are connected correctly. If the wire is destroyed, change it. If the above cannot fix the problem call our service center on 1300 796 636.
