Assembly

For equipment that is shipped overseas, some assembly is
required. Follow the steps below for assembly.
Required Tools:
Required Parts:
Item Qty.
1 6 3/8" x 1" Socket HD Cap Bolt
2 6 3/8" Split Lock Washer
3 6 3/8" Flat Washer
SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT
Long Needle Point Center Punch
5/16" Allen Drive Socket
Ratchet
Torque wrench
Description
(B)
3
(C)
2
1
ASSEMBLY

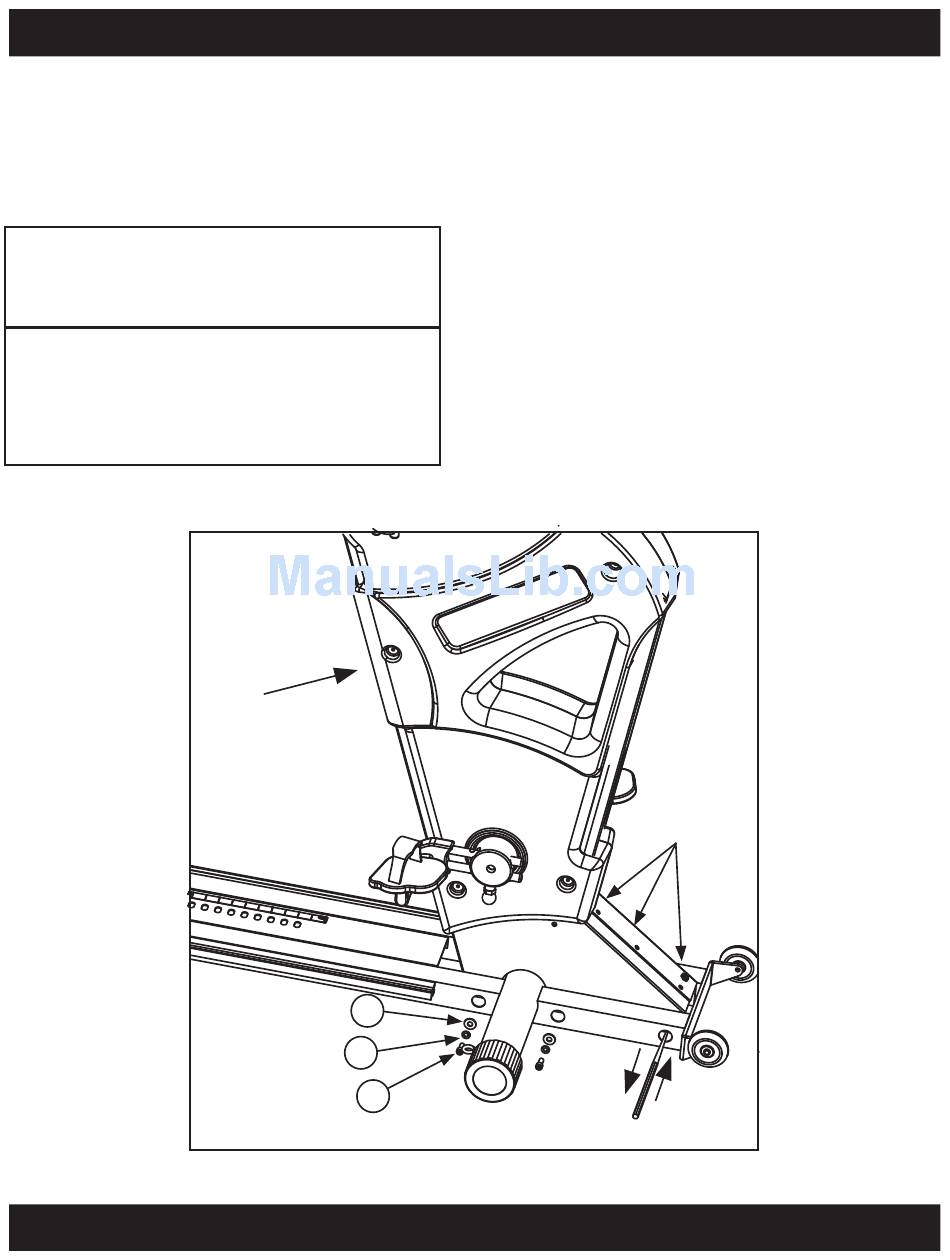

Assemble Monocoque Frame to Base Frame
With the aid of a second person, align bottom mounting
threaded nutserts of Monocoque Frame with the Base
Frame mounting holes.
Starting on the right side,
(A) Insert a long needle point center punch through the
front threaded mounting hole of the base frame.
(B) Push up on the frame until the nut-serts are aligned
with the mounting holes
(C) Slide (Qty.1) 3/8" split washer and (Qty.1) 3/8" flat
washer onto three 3/8" bolts, align and loosely thread
two of the bolts into remaining open mounting holes.
Part #
(D) Remove the center punch and loosely thread in the
N/A
third bolt.
N/A
(E) Repeat step A-D for the left side.
N/A
(F) Tighten all bolts to 48 ft/lbs or 576 in/lbs (65 nm).
5
(E)
(A)
(D)
