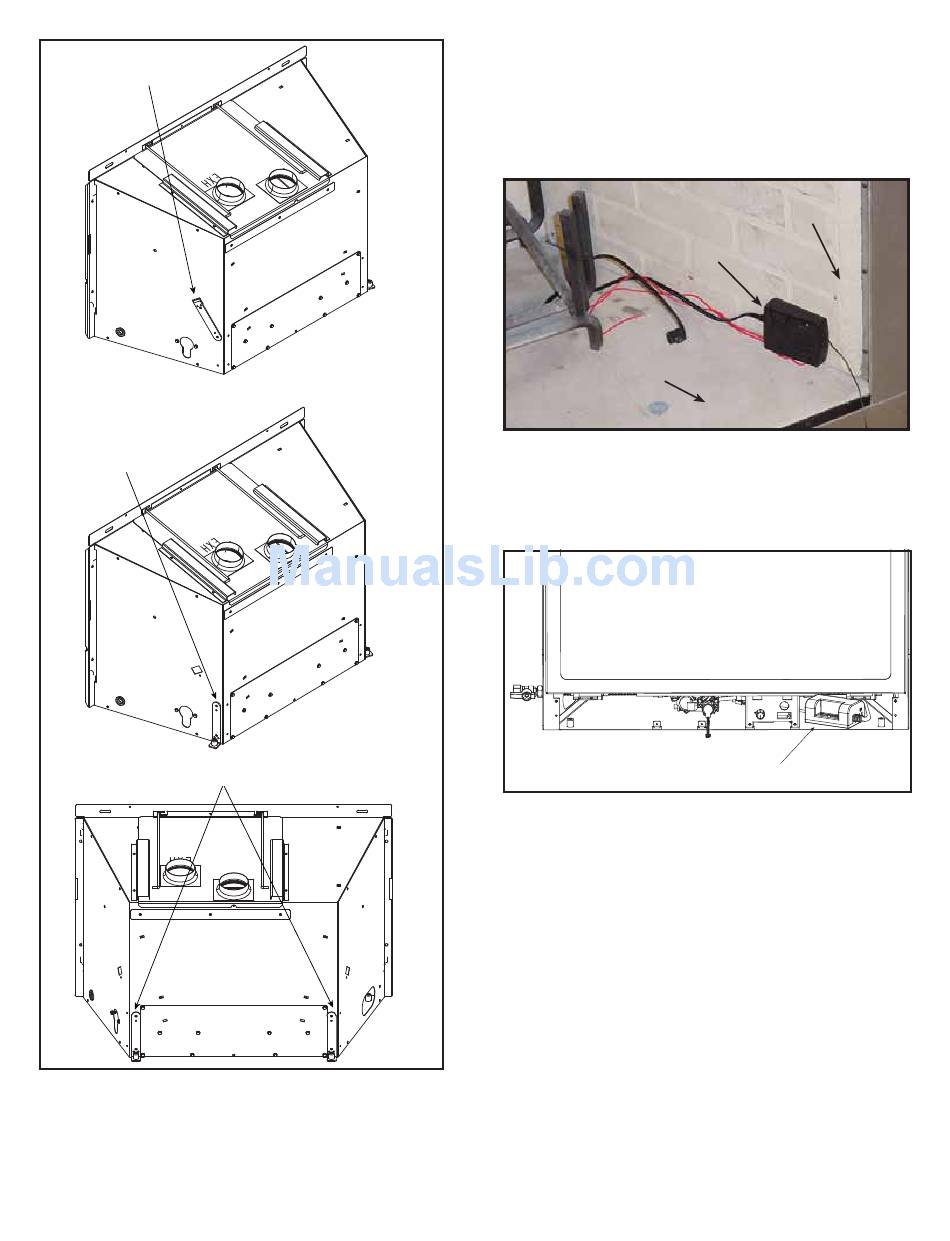

REAR LEVELING LEGS
SHIPPED IN THIS POSITION
REAR LEVELING LEGS MAY BE RELOCATED
TO LOCATION A OR LOCATION B
LOCATION A
LOCATION B
Figure 8.3
Heat & Glo • Grand-I35-C, Grand-I35-SP, Supreme-I30-C, Supreme-I30-SP • 2206-901 Rev. P • 6/14
E. Remote Control
Standing Pilot Models:
The receiver for the remotes may be installed between
the base pan of the insert and the fi rebox of the wood-
burning fi replace or in the control cavity of the insert. See
Figure 8.4.
REMOTE
RECEIVER
UNIT
EXISTING BOTTOM OF
FIREPLACE
Figure 8.4 Location of Remote Receiver - Standing PIlot
IPI Models:
If a remote control kit is used to control blower function,
the Auxiliary 300 module can only be placed in the control
cavity to the right of the control panel. See Figure 8.5.
AUXILIARY 300 MODULE
Figure 8.5 Location of AUX300 for Remote Control
Blower Function - IPI
EXISTING SIDE
REFRACTORY
