Models: SL-5, SL-7, SL-9, SL-3X, SL-5X, SL-7X, SL-9X, 350X-AU, 550X-AU
Leave this manual with party responsible for use
and operation.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
CAUTION! Do not install damaged components.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
NOTICE: Handle refractory panels with care. Refractory
may chip or crack if dropped or impacted.

TOOLS

Screw gun equipped with 1/4 in (6 mm). socket or
1/4 in. (6 mm). wrench or socket

KIT COMPONENTS

(1) Left Glass Panel
(1) Right Glass Panel
(1) Rear Glass Panel
(2) Lower Glass Brackets (1 left, 1 right)
(1) Rear Lower Glass Bracket
(2) Upper Glass Brackets (1 left, 1 right)
(2) 3/8 in. (9.5 mm) Sleeves
(4) 1/2 in. (13 mm) self-tapping Screws
(2) 1-1/4 in. (32 mm) screws
(1) Top Refractory Panel (SL-X series only)
Heat & Glo • GLASS-5/7/9, GLASS-3X/5X/7X/9X Installation Instructions • 2372-951 Rev. F • 11/18
GLASS-5, GLASS-7, GLASS-9
GLASS-3X, GLASS-5X, GLASS-7X, GLASS-9X

Installation Instructions

HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
UPPER GLASS BRACKETS
REAR GLASS
BRACKET
LOWER GLASS BRACKETS
BEND CLEARANCE NOTCH
NOTE: Install the lower glass bracket so the bend
clearance notch faces the front of the appliance.

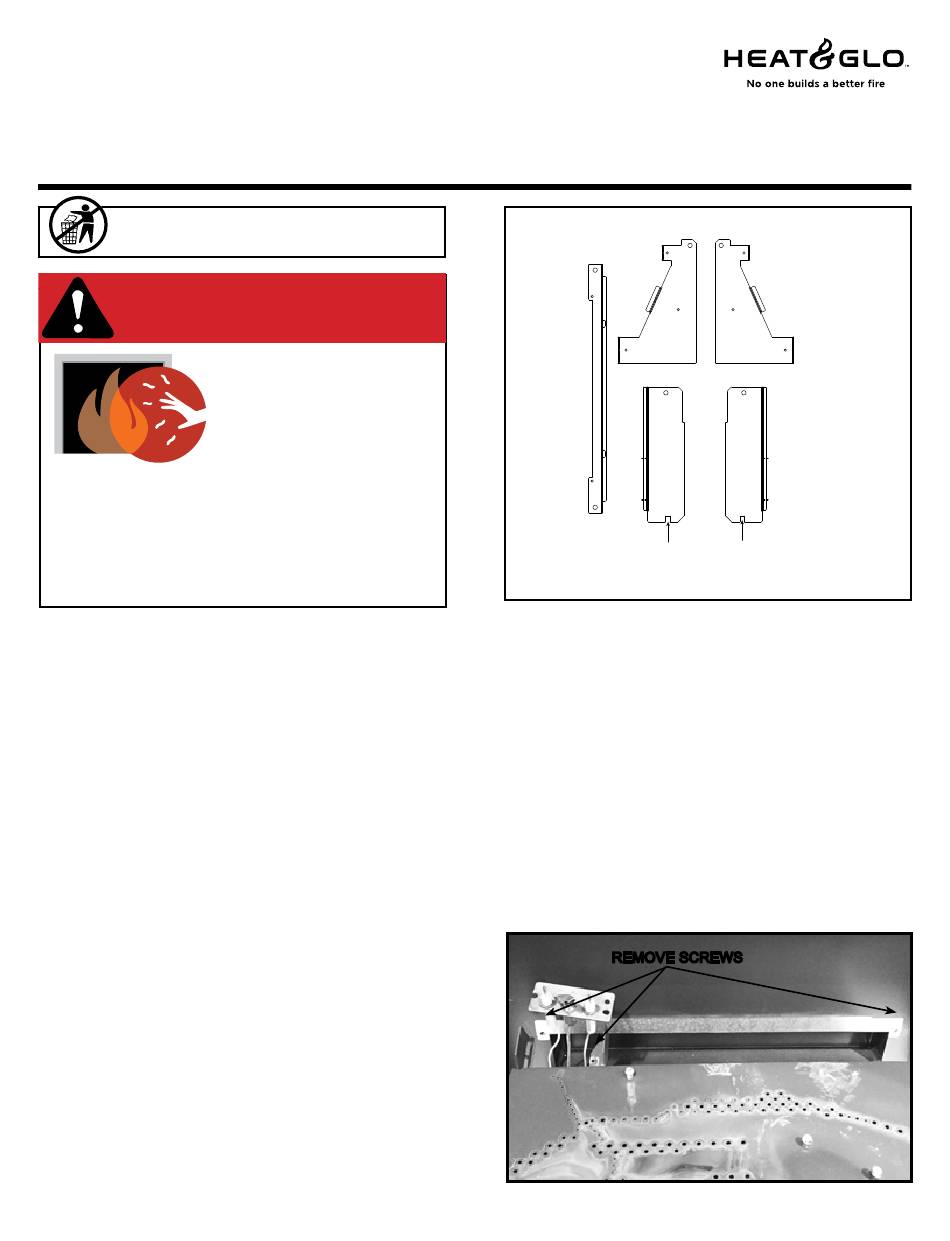

Figure 1. Metal Components - Components Shown Bent
Installation Instructions
1. Remove existing brick kit liner and logs from appliance,
if installed. The SL-X series ships standard with a four
piece refractory kit.
2. All Models:
Remove the screw that secures the pilot assembly to
the pilot bracket and gently pull the pilot upward about 2
inches (51 mm).
3. SL-X Series with Standard Refractory Installed:
Locate and remove the two screws that secure the rear
refractory bracket in place. See Figure 2. Retain these
screws for later use.
SL-5, SL-7, SL-9, 350X-AU, 550X-AU: Remove the two
screws adjacent to the air passage as shown in Figure 2.
REMOVE SCREWS
Figure 2. Remove Screws that Secure Rear Bracket to Firebox
1
