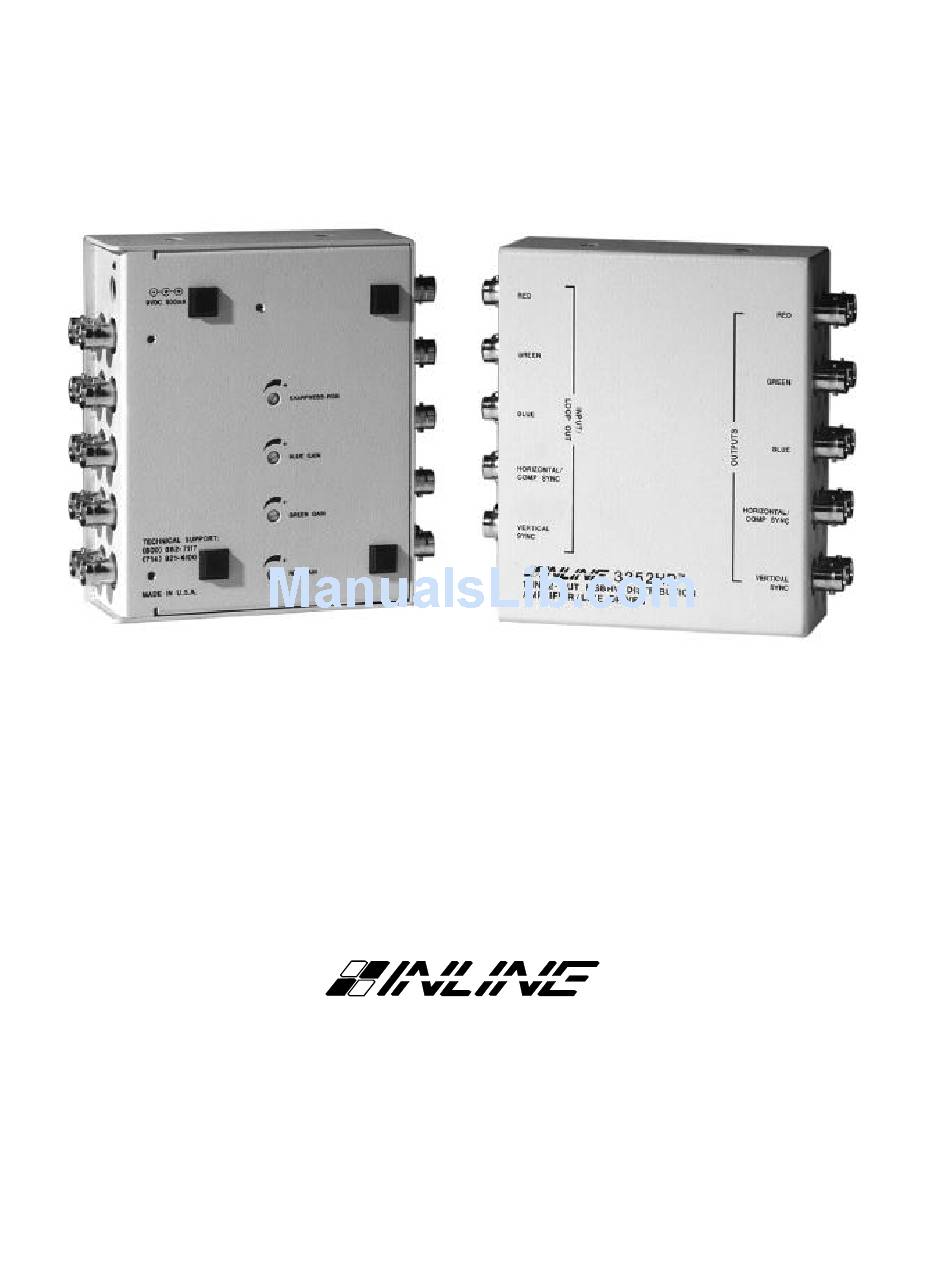

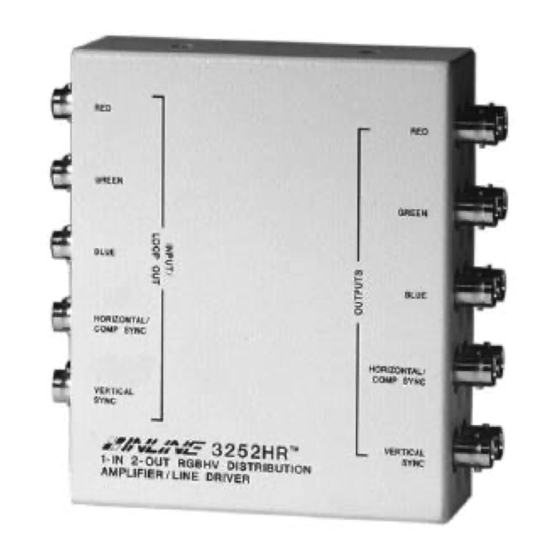

    Operation Manual IN3252HR 1-In 2-Out RGBHV Distribution Amplifier / Line Driver ®...
  • Page 2 Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.
  • Page 3 Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.

  • Page 4: Fcc Compliance

    CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92...

  • Page 5: Product Features

    3 and set jumpers as appropriate. 2. Connect the red, green, blue, and sync signals from the source to the input of the IN3252HR (see the Compatibility section for details on Sync on Green and Sync on All signals.) 3.

  • Page 6: Operation

    OPERATION The IN3252HR has external gain / sharpness controls and internal jumpers which may be used to customize the IN3252HR for specific needs (see diagram on page 3.) While the internal controls need not be changed from the factory default settings for most installations, this section describes how to change the jumper settings for unique applications.
  • Page 7 *Input is Terminated to 75ohms Closed (Loop Through Not Used) Input is Unterminated (High Z) Open (Loop Through Connected to a Local Monitor or Another Amplifier ) *Factory Default Settings © 1997 - INLINE, INC. IN3252HR OPERATION MANUAL - REV. 1 12/01/98...

  • Page 8: Specifications

    Available in Lengths from 3’ to 250’ or in Bulk IN9128 Mounting Brackets UL1950, CAN/CSA-22.2 No.950, Third Edition Regulatory Approvals CE: EN5502 (1987), EN50081-1 (1991), EN50082-1 (1992 and 1994), EN0950-92 IN3252HR OPERATION MANUAL - REV. 1 12/01/98 ©1997 - INLINE, INC.

  • Page 9: Troubleshooting

    IN3252HR, joining the input and output cable for that one color together with a BNC barrel. If the problem goes away, the IN3252HR may be faulty. If the problem persists, one of the input/output cables or the graphics source is faulty.

  • Page 10: Warranty

    The information in this manual has been carefully checked and is believed to be accurate. However, Inline, Inc. assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Inline, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
