Summary of Contents for Inline DAT104
- Page 1 DAT104 1–INPUT, 4–OUTPUT DFP / DVI DISTRIBUTION AMPLIFIER DAT1 04 OPERATION MANUAL...
-
Page 2: Fcc Compliance
Para prevenir un incendio, reemplace solo con el mismo tipo de fusible. CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following... -
Page 3: Product Overview

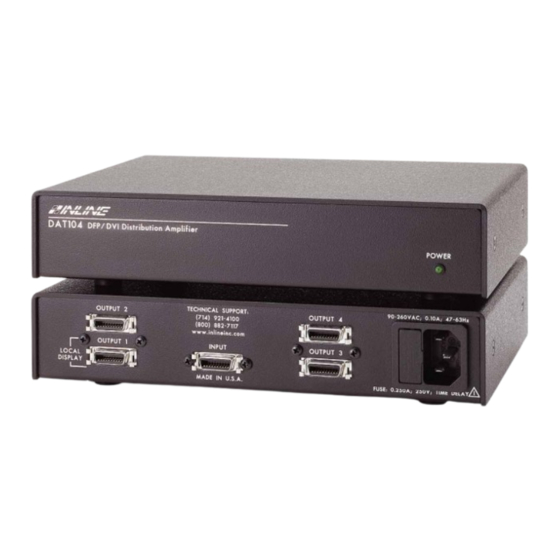

Product Overview The DAT104 is a high-resolution video distribution amplifier designed to split and buffer the digital signals from a single computer graphics card to four flat panel displays, plasma monitors, LCD projectors or other display devices that feature DFP or DVI digital video inputs. The DAT104 features DFP (Digital Flat Panel) connectors for input and outputs, allowing for direct connection to digital video sources and displays. - Page 4 Compatibility INPUT The DAT104 will accept a single link TMDS signals with at resolutions up to 1280 x 1024 (SXGA). The unit accepts the signal on a 20-pin DFP connector. The DAT104 will also accept single link TMDS based signals from DVI ports when used with the appropriate video adapter cable (see the list on page 6).
-
Page 5: Installation
Note: Read the instructions carefully before initiating the installation procedure. Make sure there is no power connected to the DAT104 and all power switches are in the OFF position. 1. Place / Install the DAT104 - at the desired location. Make sure that the distribution amplifier is seated on a flat surface or is securely installed in a standard 19”... -
Page 7: Specifications
Mounting Hardware IN9080 Rack Shelf: mounts two units side-by-side in a 1U rack space IN9088B Blank Plate: fills the empty space on the rack shelf when mounting only one DAT104 © 2000 - INLINE, Inc. DAT104 Operation Manual - V1.0 12/1/00... - Page 8 DVI Digital Video Cable, DVI Male to Male, 6’ DVIM-DVIM-15: DVI Digital Video Cable, DVI Male to Male, 15’ DFP / DVI Adapters IN9280: Digital Video Adapter, MDR20 Female to DVI Male DAT104 Operation Manual - V1.0 12/1/00 © 2000 - INLINE, Inc.
-
Page 9: Troubleshooting
A/C source. Solution 2: Make sure the A/C source is live. Solution 3: The DAT104 contains a 0.250A / 250V time delay fuse. To change the fuse, remove power from the unit, slide out the fuse holder (located on the rear panel to the left of the IEC cable receptacle) using the INLINE alignment tool. -
Page 10: Warranty
If equipment fails because of such defects and INLINE is notified within two (2) years from the date of shipment, INLINE will, at its option, repair or replace the equipment at its plant, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
