Page 1: Operation Manual

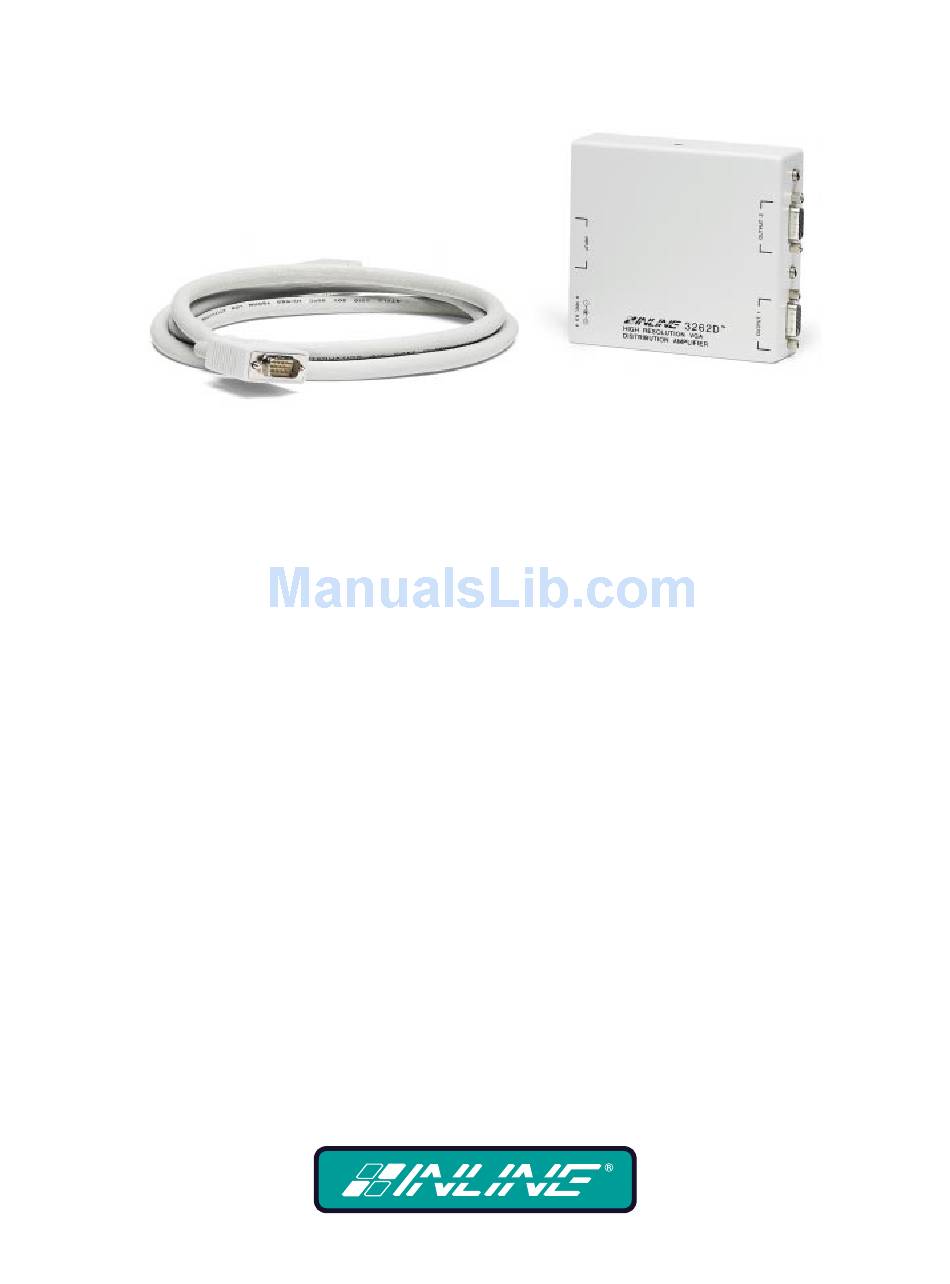

OPERATION MANUAL IN3262D High Resolution VGA Distribution Amplifier IN3262DS High Resolution VGA & Stereo Audio Distribution Amplifier... - Page 2 Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.
- Page 3 Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.
- Page 4 CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92...
-
Page 5: Product Overview
OUTPUT The IN3262D / IN3262DS offer two buffered video output signals in the same format and use the same connector as the original input signal. This is ideal for use with devices such as LCD projectors and proprietary data monitors which often must see a certain type of connector and sync format in order to recognize and lock up to various frequencies. -
Page 6: Installation
15-Pin HD connector, which looks like this: 3. Connect the local computer monitor (if present) to Output #1 on the IN3262D / IN3262DS distribution amplifier. VGA local monitors can be connected directly to the output. If no local monitor is connected to Output #1, a termination plug is required. - Page 7 OUTPUT 1 OUTPUT 2 INPUT IN9204P 9V 500MA Power Supply CPU with VGA Port 6’ Detacable Cable Provided with Unit IN9106 Audio Cable IN8000 series VGA Extension Cable ©1999 - INLINE, INC. IN3262D / IN3262DS OPERATION MANUAL - REV 1.1 12/03/99...
-
Page 8: Specifications
Shipping Weight 2 lb. / 1 kg. Regulatory Compliance UL 1950. 3 Ed.: CE: EN 60950-92 Safety CAN/CSA-22.2 No. 950 3 FCC class A; CE: EN50081-1, EN550022, EN50082-1 IN3262D / IN3262DS OPERATION MANUAL - REV 1.1 12/03/99 ©1999 - INLINE, INC. - Page 9 ADAPTER / EXTENTION CABLES FOR INPUT AND LOCAL MONITOR OUTPUT The IN3262D / IN3262DS has 15-Pin HD VGA-type connectors for input and local monitor output. The following input and local monitor output cables are available: Computer 3’...
-
Page 10: Troubleshooting
Solution: There needs to be a termination on output #1. Use a local monitor or the IN9031 termination plug. The output image of the IN3262D / IN3262DS is visible but has poor quality / low definition. Solution: The output cable may be too long or of poor quality. INLINE offers several high-resolution mini-coax cables for analog signals and a series of shielded twisted pair cables designed specifically for digital video signal transmission. -
Page 11: Warranty
INLINE warrants the equipment it manufactures to be free from defects in materials and workmanship. • If equipment fails because of such defects and INLINE is notified within two (2) years from the date of shipment, INLINE will, at its option, repair or replace the equipment at its plant, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
