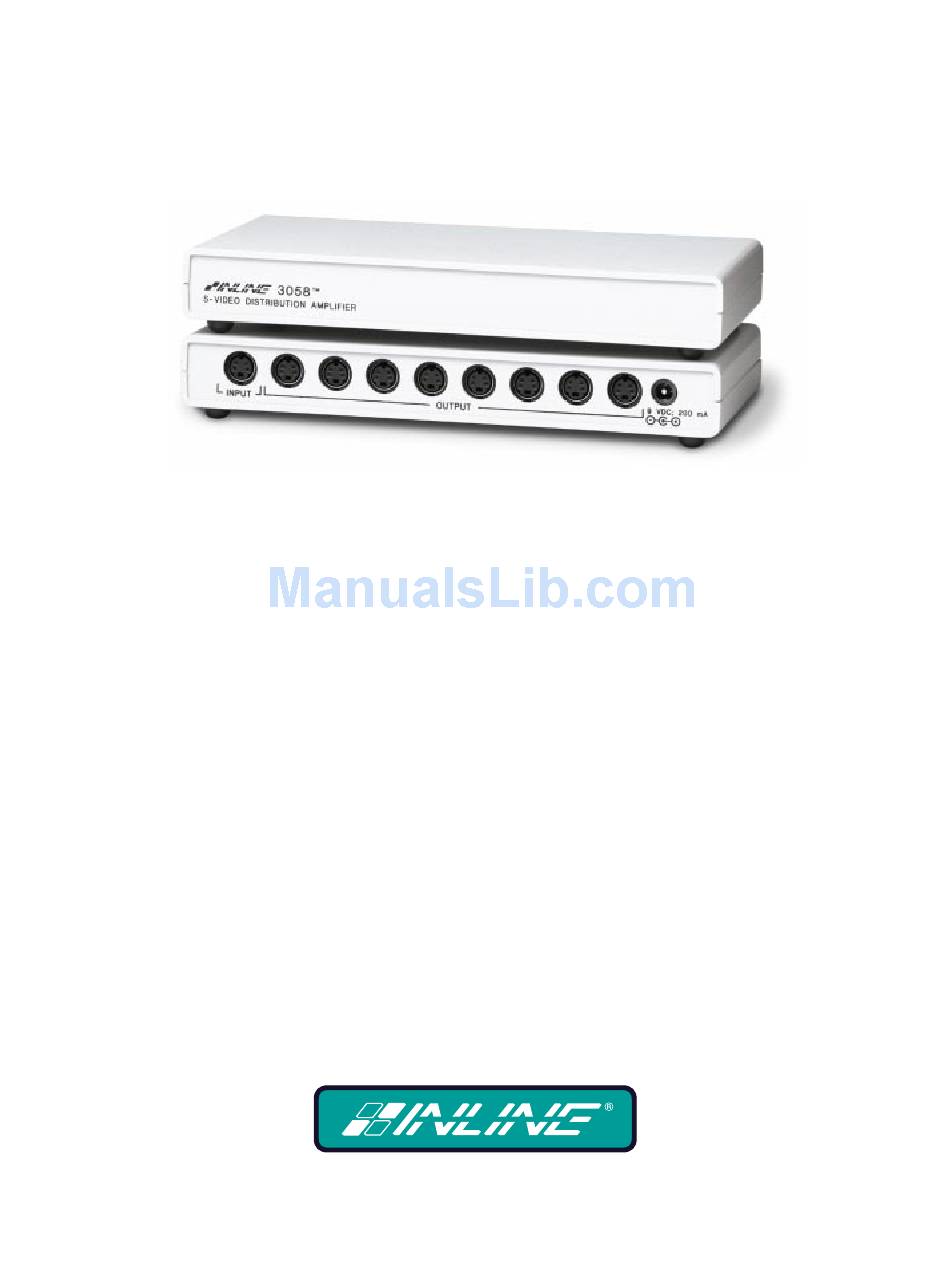

Page 1: Operation Manual
Operation Manual IN3056 - 1 x 4 S-Video Distribution Amplifier IN3058 - 1 x 8 S-Video Distribution Amplifier... - Page 2 Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.
- Page 3 Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.
-
Page 4: Fcc Compliance
CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92... -
Page 5: Installation
These units feature separate amplification circuitry for the chroma and luma video signal components and 4-Pin mini DIN connectors for input and outputs. The IN3056 is a 1 input, 4 output distribution amplifier and the IN3058 is a 1 input 8 output distribution amplifier. These units feature high video bandwidth performance of 100 MHz and employ very compact designs which allow them to be installed in a small space. - Page 6 Application Diagram IN3056 S-VHS VCR S-Video Input IN8600 Series S-Video Cables Video Monitor S-Video Input DVD Player S-Video Output Video Monitor S-Video Input Power Supply 9V / 200 mA Video Projector S-Video Input...
-
Page 7: Operation
OPERATION The IN3056 and IN3058 are designed to distribute and extend video signals in the S-Video (Y/C) format. These units include controls for Chroma and Luma which can be used to optimize the output signal and compensate for cable losses, extending a video signal as far as 300 feet without any degradation of the signal. -
Page 8: Specifications
The output image is too dark. Suggestion: First make sure the display device contrast and brightness controls are set properly. Then increase the appropriate IN3056/3058 Luma gain control(s) until the desired image is achieved. Problem: The output image is too bright or the picture blooms. -
Page 9: Warranty
The information in this manual has been carefully checked and is believed to be accurate. However, Inline, Inc. assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Inline, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
