Summary of Contents for Inline IN3055
-

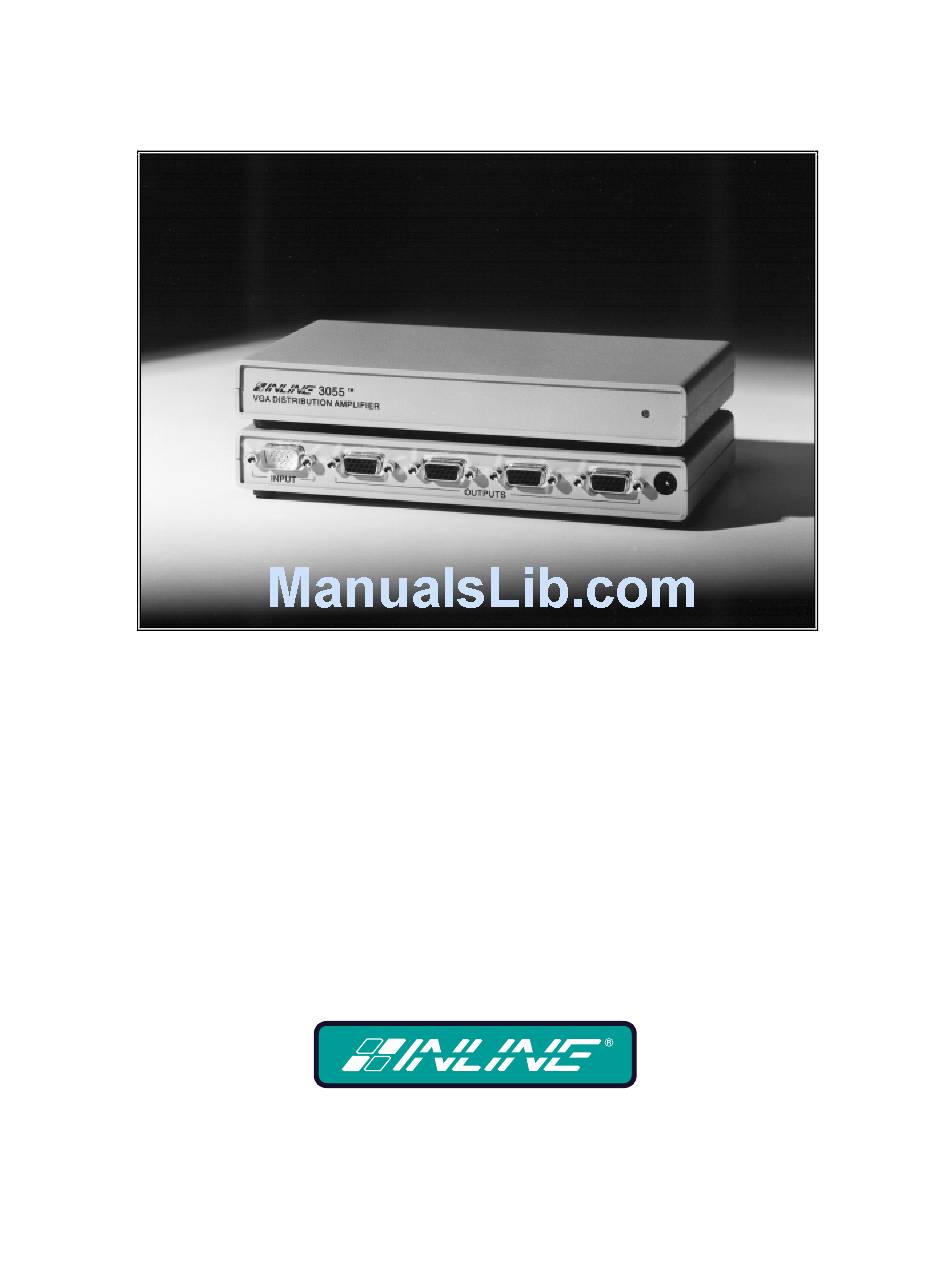

Page 1: Operation Manual
Operation Manual IN3055 - 1x4 VGA Distribution Amplifier... -
Page 2: Installation And Safety Instructions
Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage. -
Page 3: Installations Und Sicherheitshinweise
Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden. -
Page 4: Fcc Compliance
CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92... -
Page 5: Input Compatibility
LCD projectors, and other compatible display devices. The IN3055 does not alter the video or sync signals, but merely amplifies the signals to a level needed to extend the external displays as far as 100 feet away. The IN3055 distribution amplifier is fully automatic, offering easy operation and the following features: ♦... -
Page 6: Installation
2. The IN3055 utilizes a special loop-through input cable, the IN9041, which has a single male 15 pin HD connector on one end and a double headed (male and female) connector on the loop-through end. - Page 7 Application Diagram IN3055 Local Monitor Data Projector RGBHV Input Computer CPU IN9045 IN9041 Input Loop Cable IN3055 INPUT OUTPUTS Power Supply 12V / 500 mA IN8000 Series Cables Multi-Sync Monitor Monitor Monitor...
-
Page 8: Specifications
Width: 7.7" Depth: 4.0" Size Shipping Weight 3 lb. Parts & Accessories Included IN3055 1 x 4 VGA Distribution Amplifier IN9041 Loop-Through Input Cable 9V 500 mA Power Supply Operations Manual Optional Accessories IN8000 Series High Resolution Mini-Coax Cables w/ 15-Pin Input / Output Cables HD Connectors, available in a variety of lengths from 6’... -
Page 9: Troubleshooting
(6 to 12 ft) monitor cable attached to the loop-through (IN9041) output. An extension cable for the input or a very long cable on the local monitor may cause this problem. The IN3055 must be located immediately adjacent to the source computer. Do not attempt to lengthen the input cable. -
Page 10: Warranty
The information in this manual has been carefully checked and is believed to be accurate. However, Inline, Inc. assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Inline, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
