Page 1: Operation Manual

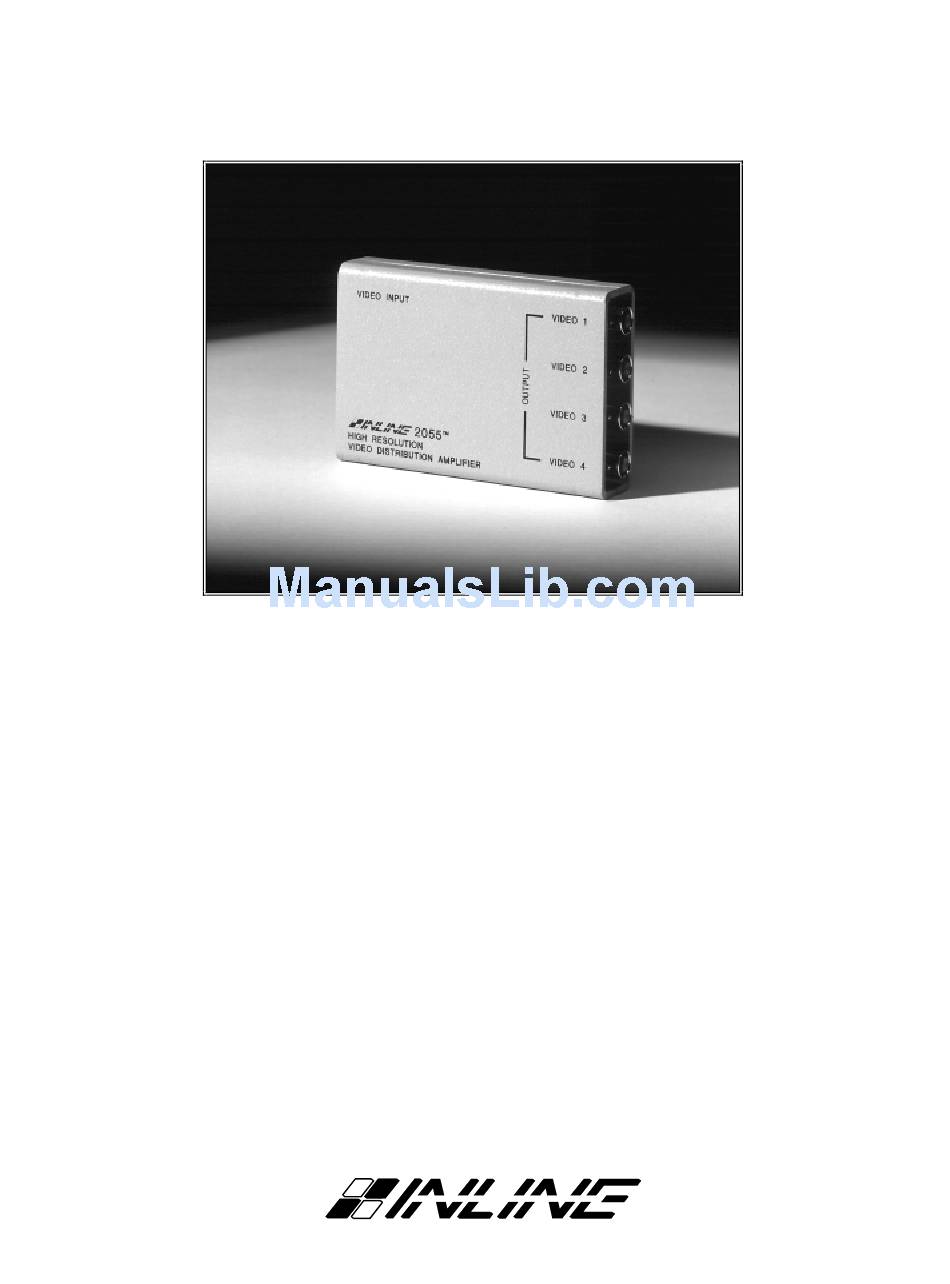

Operation Manual IN2055 - 1 x 4 Composite Video Distribution Amplifier IN2056 - Composite Video Line Driver ®... - Page 2 The IN2055 and IN2056 are high performance video amplifiers with gain and peaking controls. The IN2055 is a 1 in 4 out distribution amplifier, and the IN2056 is a 1 in 1 out line driver. These units feature a very compact design which allows them to be installed in a very small space and offer 200 MHz bandwidth performance.
- Page 3 INTERNAL CONTROLS The IN2055 and IN2056 have internal gain and peaking controls which can be accessed using the following procedure: 1. Remove the screw from the bottom of the unit. 2. Slide the top cover off. 3. Identify gain and peaking controls and gently adjust as needed.
- Page 4 Make sure the power supply is plugged in and that the input and output cables are connected properly. Bypass the IN2055/2056 by connecting the input and output cables with a BNC barrel connector to ensure there is a video signal present.
- Page 5 The information in this manual has been carefully checked and is believed to be accurate. However, Inline, Inc. assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Inline, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
