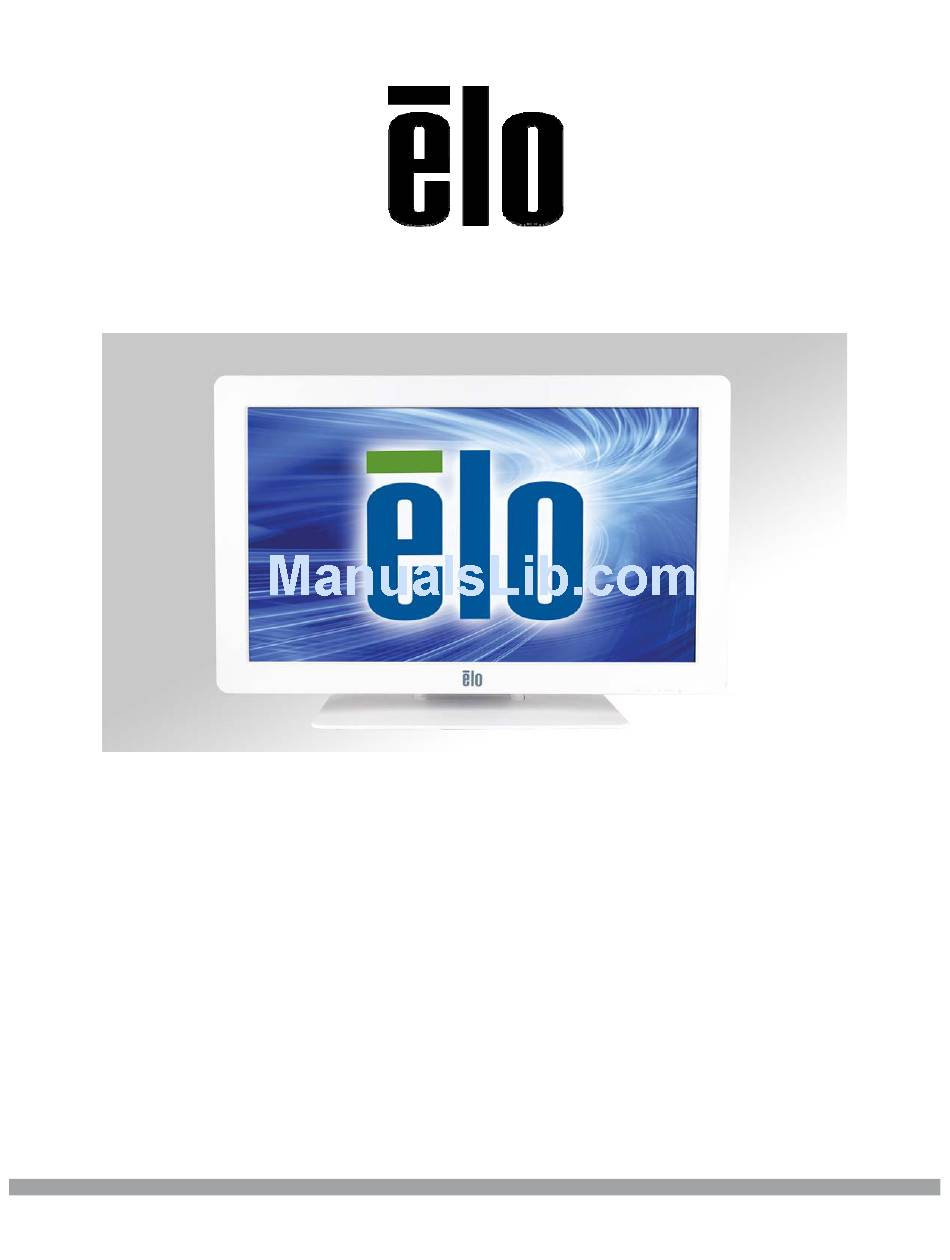

- Page 1 USER MANUAL Elo Touch Solutions 2401LM Touchmonitor SW200127 Rev A...
- Page 2 Trademark Acknowledgments AccuTouch, CarrollTouch, Elo, Elo (logo), Elo Touch, Elo Touch Solutions, Elo TouchSystems, IntelliTouch, iTouch, SecureTouch, TouchTools and VuPoint are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation.
-
Page 3: Warnings And Cautions
Warnings and Cautions Warning • Danger - Explosion hazard. Do not use in the presence of flammable anesthetics, and other flammable materials. • To prevent fire or shock hazards, do not immerse the unit in water or expose it to rain or moisture. - Page 4 Caution Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord. This unit must follow the national requirement and local state laws to dispose unit. Before connecting the cables to your Elo Touchmonitor, make sure all components are powered OFF.
- Page 5 Operating Altitude Storage / Transportation 12,192m 2401LM Touchmonitor for Healthcare Applications is intended for general use in hospital environment for data collection and display for reference. It shall not be used with life-supporting system. User Manual 2401LM SW200127 Rev A Page 5 of 32 ©...
- Page 6 European Standards and Classifications Standards: EN 60601-1-2: 2007 The EMC limits and test methods are referred to the following standards: Emission: Immunity CISPR11:2009+A1:2010 ED. 5.1(Grp I, Class B) IEC61000-4-2:2008 ED.2.0 AS/NZS CISPR 11: 2011, Grp. 1, Class B IEC61000-4-3:2006+A1:2007 +A2:2010ED.3.2 IEC 61000-4-4: 2012 ED.3.0 EN 61000-3-2: 2006 +A1: 2008+A2: 2009, Class D IEC 61000-4-5: 2005 ED.2.0 IEC 61000-3-3: 2008...
- Page 7 Guidance and manufacturer’s declaration-electromagnetic emissions The 2401LM Touchmonitor for Healthcare Applications is intended for use in the electromagnetic environment specified below. The customer or the user of the 2401LM Touchmonitor for Healthcare Applications should assure that it is used in such an environment.
- Page 8 Guidance and manufacturer’s declaration-electromagnetic immunity for all EQUIPMENT AND SYSTEMS Guidance and manufacturer’s declaration-electromagnetic immunity 2401LM Touchmonitor for Healthcare Applications is intended for use in the electromagnetic 2401LM Touchmonitor for Healthcare environment specified below. The customer, or the user of the...
- Page 9 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the 2401LM Touchmonitor for Healthcare Applications is used exceeds the applicable RF compliance level above, the 2401LM Touchmonitor for Healthcare Applications should be observed to verify normal operation.
- Page 10 Recommended separation distances between portable and mobile RF communications equipment and the 2401LM Touchmonitor for Healthcare Applications for all EQUIPTMENT AND SYSTEMS that are not LIFE-SUPPORTING 2401LM Touchmonitor for Healthcare Applications i intende electromagneti environmen whic disturbanc 2401LM controlled. The customer or the user of the...
-
Page 11: Table Of Contents
Table of Contents Chapter 1: Introduction ................12 Chapter 2: Installation .................. 13 Chapter 3: Mounting ..................17 Chapter 4: Operation ..................19 Chapter 5: Technical Support ..............23 Chapter 6: Safety & Maintenance ............... 24 ... -
Page 12: Chapter 1: Introduction
Chapter 1: Introduction Product Description Your new touch monitor combines Elo Touch Solutions’ reliable performance with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between a user and the Touchmonitor. This Touchmonitor incorporates a 8-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance. -
Page 13: Chapter 2: Installation
Chapter 2: Installation Unpacking the Touch monitor Open the carton and verify the following items are present: • Touchmonitor with protective sheet for its face • Elo TouchTools CD • Quick Install Guide • DVI cable • VGA cable • USB cable •... -
Page 14: Touchmonitor Connections
Touchmonitor Connections 1. Connect the DVI or VGA video cables between the monitor’s DVI/VGA input connectors and your DVI/VGA video source, respectively. Tighten the video cable’s screws for best performance. 2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB port. 3. - Page 15 Installing the Touch Technology Software Drivers Some software installation is required for your Touchmonitor to work with your computer. The drivers for the Windows 7, XP, Vista, WePOS, and 32-bit Server 2003 operating systems are provided with your Touchmonitor on a CD. Visit the Elo Touch Solutions website www.elotouch.com for: •...
- Page 16 For Windows 7 installations, check the “Install driver” box under “Elo USB Interfaces – Other Touchscreens” After accepting the end-user license agreement, the drivers will finish installing. Reboot your computer after the install is complete. User Manual 2401LM SW200127 Rev A Page 16 of 32 ©...
-
Page 17: Chapter 3: Mounting
Chapter 3: Mounting General Mounting Information The OSD text can be rotated through the OSD menu to better suit your mounting orientation. The holes located on the top and bottom of the Touchmonitor case are for ventilation. Do not block, cover, or insert anything inside the ventilation slots. -
Page 18: Vesa Mounting Options
Stand Mounting Threaded through-holes are provided on the bottom of the stand base for mounting or securing. VESA Mounting Options The following companies provide VESA mounting devices compatible with your touch monitor : 800-228-2555 707-773-1100 www.gcx.com Ergotron 800-888-8458 651-681-7600 www.ergotron.com Innovative Office Products 800-524-2744 610-253-9554... -
Page 19: Chapter 4: Operation
Chapter 4: Operation Power To turn the Touchmonitor on or off, press the Touchmonitor power button once. The Power Status LED on the bottom of the Touchmonitor functions according to the following table: Touchmonitor/Computer Module status LED status SLEEP ORANGE GREEN The system consumes low power when in SLEEP and OFF modes. -
Page 20: On-Screen Display (Osd)
(for example images containing small-font text). Your Touchmonitor will likely not require video adjustments. However, for analog VGA video, variations in video graphic card outputs may require user adjustments through the OSD to optimize the quality of the Touchmonitor’s displayed image. These adjustments are “remembered” by the Touchmonitor. Also, to reduce the need for adjustments for different video mode timings, the monitor correctly scales and displays some of the video industry’s most common video timing modes. - Page 21 Selects the display’s color temperature. The available color temperatures are 9300K, 6500K, 5500K, 7500K, and User Defined. If the User Defined option is selected, the Color user can change the color temperature by changing individual R, G, and B gains on a Temperature scale from 0 to 100.
- Page 22 OSD and Power Lockouts Press and hold the “Menu” and “Up” buttons for two seconds to enable/disable the OSD Locking feature. When the OSD Locking is enabled, pressing any of the Menu, Up, Down, or Select keys will have no effect on the system. Press and hold the “Menu”...
-
Page 23: Chapter 5: Technical Support
Chapter 5: Technical Support If you are experiencing trouble with your Touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting Check that the AC power cable is properly The Touchmonitor does not respond when connected. -
Page 24: Chapter 6: Safety & Maintenance
Chapter 6: Safety & Maintenance Safety To avoid risk of electric shock, follow all safety notices and do not disassemble the Touchmonitor. They are not user-serviceable. The slots located on the sides and top of the Touchmonitor case are for ventilation. Do not block or insert anything inside the ventilation slots. - Page 25 Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual 2401LM SW200127 Rev A Page 25 of 32 © 2013 Elo Touch Solutions, Inc. All rights reserved.
-
Page 26: Chapter 7: Regulatory Information
Chapter 7: Regulatory Information I. Electrical Safety Information: Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 27 v) Disconnect and remove any I/O cables that the digital device does not use.(Un-terminated I/O cables are a potential source of high RF emission levels.) vi) Plug the digital device into only a grounded outlet receptacle. Do not use AC adapter plugs. (Removing or cutting the line cord ground may increase RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or...
- Page 28 IV. China RoHS In accordance to Chinese law (Administration on the Control of Pollution Caused by Electronic Information Products), the section below lists out the name and amount of the toxic and/or hazardous materials that this product may contain. Component Toxic or Hazardous Substances and Elements Name Lead(Pb) Mercury(Hg) Cadmium(Cd) Hexavalent...
- Page 29 Input: 100-240VAC, 50-60Hz Output: 12VDC, minimum 3A, LPS VI. Monitor Specifications Electrical Ratings: Input: 12VDC, 3A Operating Conditions: Temperature: 0°C - 35°C Humidity: 20% to 80% (non-condensing) Altitude: 0 to 3,048m Storage Conditions: Temperature: -20°C - 50°C Humidity: 10% to 90% (non-condensing) Altitude: 0 to 12,192m User Manual 2401LM...
-
Page 30: Chapter 8: Warranty Information
Chapter 8: Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the Touchmonitors and their components is three years. Seller makes no warranty regarding the model life of components. -
Page 31: Index
Index Agency Certifications, 27 Lockouts, 22 OSD and Power, 22 Altitude, 5 Mode of Operation, 5 Available Adjustment Auto Adjust, 21 Monitor Specifications, 29 Brightness, 20 Mounting Information, 17 Clock, 21 native resolution, 19 Color Temperature, 21 Contrast, 20 online self-help, 23 H-position, 20, 21 On-Screen Display, 20 Input Video, 21... - Page 32 Check out our website www.elotouch.com Get the latest... • Product Information • Specifications • Upcoming events • Press releases • Software drivers Getting in Touch with Us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Tel 800-ELO-TOUCH...
