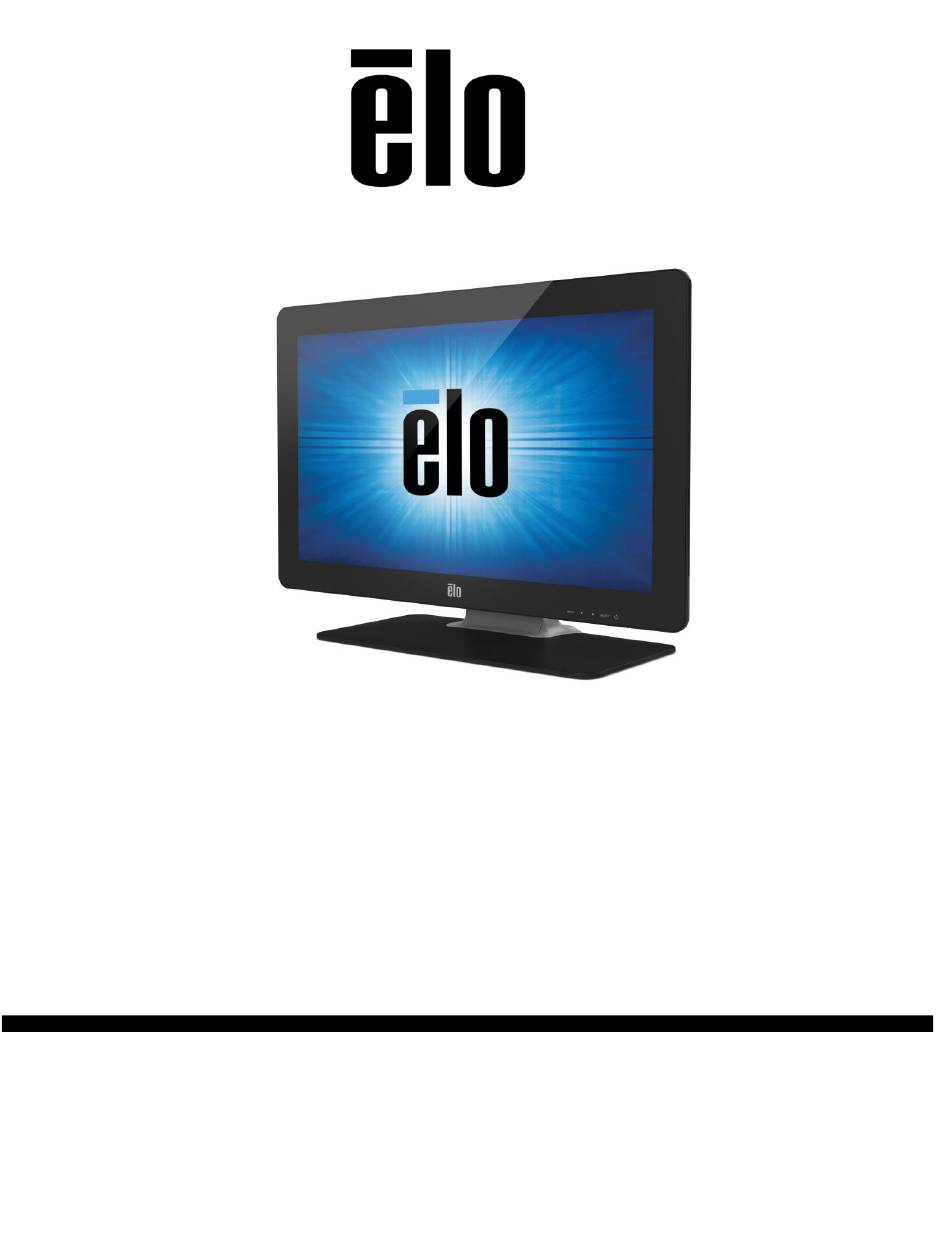

USER MANUAL
Elo Touch Solutions
2201L Touchmonitors
SW601363 Rev L
User Manual – 2201L
SW601363 Rev L, Page 1 of 25

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET2201L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elo TouchSystems ET2201L

  • Page 1 USER MANUAL Elo Touch Solutions 2201L Touchmonitors SW601363 Rev L User Manual – 2201L SW601363 Rev L, Page 1 of 25...
  • Page 2 Copyright © 2021 ELO Touch Solutions. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of ELO Touch Solutions.
  • Page 3: Table Of Contents

    Table of Contents Chapter 1 - Introduction ................4 Chapter 2 – Installation ................5 Chapter 3 – Mounting ................9 Chapter 4 – Operation ................10 Chapter 5 – Technical Support ............... 14 Chapter 6 – Safety & Maintenance ............
  • Page 4: Chapter 1 - Introduction

    Chapter 1 - Introduction Product Description Your new touchmonitor combines ELO Touch Solutions reliable performance with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between a user and the touchmonitor. This touchmonitor incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance.
  • Page 5: Chapter 2 -Installation

    Chapter 2 –Installation Unpacking the Touchmonitor Open the carton and verify the following items are present: • Touchmonitor with protective sheet for its face • Quick Install Guide • Japanese language regulatory information pamphlet • DVI cable • VGA cable •...
  • Page 6 Touchmonitor Connections 1. Connect the DVI or VGA video cables between the monitor’s DVI/VGA input connectors and your DVI/VGA video source, respectively. Tighten the video cable’s screws for best performance. 2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB port.
  • Page 7 Installing the Touch Technology Software Drivers Some software installation is required for your iTouch Plus touchmonitor to work with your computer. No additional drivers are required for your projected-capacitive touchmonitor with Windows 7 and 8 operating systems, it uses Windows HID drivers. To download latest touch drivers 1.
  • Page 8: Chapter 3 - Mounting

    Chapter 3 – Mounting General Mounting Information The OSD text can be rotated through the OSD menu to better suit your mounting orientation. The holes located on the sides and top of the touchmonitor case are for ventilation. Do not block, cover, or insert anything inside the ventilation slots.
  • Page 9 User Manual – 2201L SW601363 Rev L, Page 9 of 25...
  • Page 10: Chapter 4 - Operation

    Chapter 4 – Operation Power To turn the touchmonitor on or off, press the touchmonitor power button once. The Power Status LED on the bottom of the touchmonitor functions according to the following table: TouchMonitor/Computer Module status LED status SLEEP PULSING The system consumes low power when in SLEEP and OFF modes.
  • Page 11 IntelliTouch Plus Touch Technology When connected to Windows 7 computers, the touchmonitor can report 2 simultaneous touches. When connected to Windows XP computers, the touchmonitor reports single touches. The IntelliTouch Plus touchscreen can be re-calibrated to your displayed video image, if needed, through the Calibration function in the Elo driver control panel.
  • Page 12 Projected Capacitive Touch Technology When connected to Windows 7 or 8 computers, the touchmonitor can report 10 simultaneous touches. When connected to Windows XP computers, the touchmonitor reports single touches. No additional drivers are required for this technology to work, it uses Windows HID drivers. Refer to Chapter 2, Section “Installing the Touch Technology Software Drivers”...
  • Page 13 On-Screen Display (OSD) Four OSD buttons are on the bottom of the monitor. These can be used to adjust various display parameters. The buttons and their functionality are: Button Function when OSD is not displayed: Function when OSD is displayed: Menu Display OSD main menu Return to previous OSD menu...
  • Page 14 Switches the scaling method between Full Scaling and Maintain Aspect Ratio. Default: Full Scaling Full Scaling – scales the X- and Y-dimensions of the input video (up or down as needed) to the display’s native resolution. Fill To Aspect Ratio – Assuming a landscape orientation and an input video with aspect Aspect Ratio ratio smaller than 1920x1080, scales the Y-dimension of the input video (up or down as needed) to the display’s Y-resolution, and scales the X-dimension to maintain the...
  • Page 15 settings will not default to the factory specifications. OSD and Power Lockouts Press and hold the “Menu” and “Down” buttons for two seconds to enable/disable the OSD Locking feature. When the OSD Locking is enabled, pressing any of the Menu, Up, Down, or Select keys will have no effect on the system.
  • Page 16: Chapter 5 - Technical Support

    Chapter 5 – Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact ELO Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting Check that the AC power cable is properly The touchmonitor does not respond when connected.
  • Page 17: Chapter 6 - Safety & Maintenance

    Chapter 6 - Safety & Maintenance Safety To avoid risk of electric shock, follow all safety notices and do not disassemble the touchmonitor. They are not user-serviceable. The slots located on the sides and top of the touchmonitor case are for ventilation. Do not block or insert anything inside the ventilation slots.
  • Page 18 Monitors are not designed for outdoors. Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual – 2201L SW601363 Rev L, Page 18 of 25...
  • Page 19: Chapter 7 - Regulatory Information

    Chapter 7 – Regulatory Information I. Electrical Safety Information: Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  • Page 20 (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Notice to Users in the European Union: Use only the provided power cords and interconnecting cabling provided with the equipment. Substitution of provided cords and cabling may compromise electrical safety or CE Mark Certification for emissions or immunity as required by the following standards: This Information Technology Equipment (ITE) is required to have a CE Mark on the...
  • Page 21 User Manual – 2201L SW601363 Rev L, Page 21 of 25...
  • Page 22 III. Agency Certifications The following certifications and marks have been issued or declared for this monitor: Australia RCM Canada CUL, IC China CCC Europe CE United Kingdom UKCA Japan VCCI Korea KCC Mexico CoC Taiwan BSMI United States FCC, UL Russia EAC IV.
  • Page 23 Operating Temperature:0-40 / Humidity:20%-80% (non-condensing). Storage Temperature:-20~60 / Humidity:10%~90% (non-condensing). (2). It is encouraged and recommended that this product be recycled and reused according to local laws. The product should not be thrown away casually. V. Power Adapter Specifications Electrical Ratings: Input: 100-240VAC, 50-60Hz Output: 12VDC, minimum 3A, LPS VI.
  • Page 24: Chapter 8 - Warranty Information

    Chapter 8 – Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the TouchMonitors, Computer Module, and their components is 3 (three) years. Seller makes no warranty regarding the model life of components.
  • Page 25 Check out Our Website! www.elotouch.com Get the latest... • Product Information • Specifications • Upcoming events • Press releases • Software drivers • TouchMonitor Newsletter Getting in Touch with us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: Americas Europe (EMEA)
