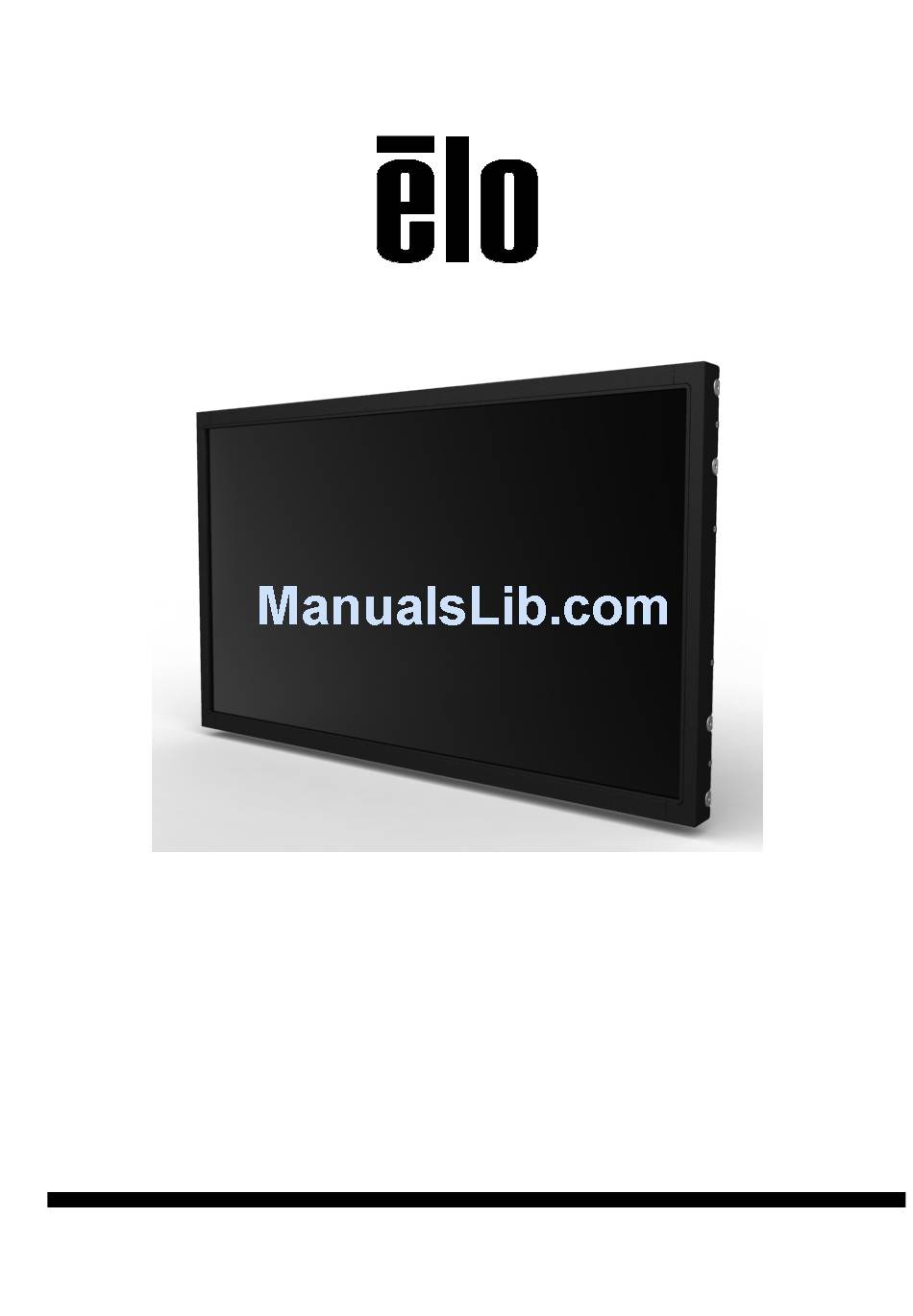

- Page 1 USER MANUAL Elo Touch Solutions 2440L Touchmonitor SW602154 Rev A...
- Page 2 Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
-
Page 3: Table Of Contents
Chapter 4: Operation ................16 Chapter 5: Technical Support ..............24 Chapter 6: Safety & Maintenance ............26 Chapter 7: Regulatory Information ............28 Chapter 8: Warranty Information ............33 User Manual: 2440L SW602154 Rev A, Page 3 of 34... -
Page 4: Chapter 1: Introduction

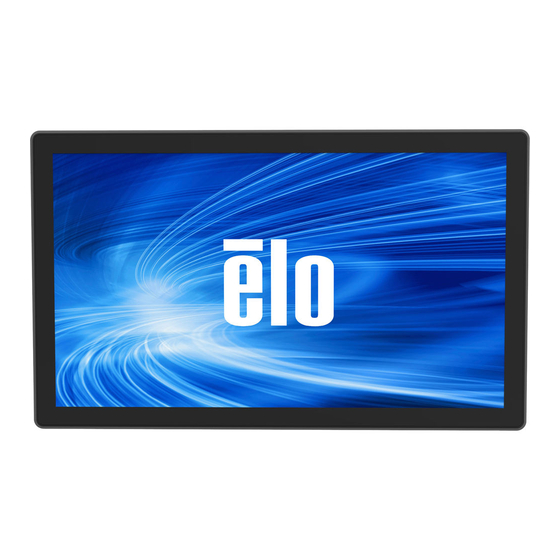

Chapter 1: Introduction Product Description Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch products with the latest developments in touchscreen technology and display design. This combination of features ensures a product with stable, drift-free operation, consistent reliability and durability, backed by a 3-year standard warranty. -
Page 5: Chapter 2: Installation
• VGA cable • DVI cable • USB cable (not available for no touch models) • Serial cable (available for single touch models only) • Mounting brackets and screws • OSD Remote User Manual: 2440L SW602154 Rev A, Page 5 of 34... -
Page 6: Touchmonitor Connections
PC’s USB/serial port. 3. Connect a 12VDC power supply to the monitor’s input power jack. 4. The touchmonitor ships in an ON state, video should be displayed on your monitor already. User Manual: 2440L SW602154 Rev A, Page 6 of 34... - Page 7 Some software installation is required for your touchmonitor to work with your computer. No additional drivers are required for your projected-capacitive touchmonitor, it uses Windows HID drivers. The drivers are available on the Elo Touch Solutions website. Visit www.elotouch.com for: • The most up-to-date touch driver versions •...
- Page 8 Select the applicable driver from the Elo Touch Solutions website and download: For Windows 7 installations, double-click on EloSetup Installer User Manual: 2440L SW602154 Rev A, Page 8 of 34...
- Page 9 After accepting the end-user license agreement, the system will initialize to setup installation of drivers. To complete setup, reboot system by clicking on “Reboot Now” button. Click on “One More Minute” if more time is needed with increments of 1 minute. User Manual: 2440L SW602154 Rev A, Page 9 of 34...
- Page 10 Note: System will automatically reboot when “Time left” counter reaches “0”. For Windows XP installations, double-click on the icon from the desktop User Manual: 2440L SW602154 Rev A, Page 10 of 34...
- Page 11 Click on “Unzip” button to unzip files. User Manual: 2440L SW602154 Rev A, Page 11 of 34...
- Page 12 Select one or more of the drivers to install. Click on “Next” After accepting the end-user license agreement, the drivers will finish installing. Reboot your computer after the install is complete. User Manual: 2440L SW602154 Rev A, Page 12 of 34...
-
Page 13: Chapter 3: Mounting
The OSD text can be rotated through the OSD menu to better suit your mounting orientation. Side Bracket Mount (IntelliTouch and No Touch models only) Threaded holes are provided on the sides of the monitor for mounting using the provided brackets. User Manual: 2440L SW602154 Rev A, Page 13 of 34... - Page 14 Flush Bracket Mount (iTouch and Projected Capacitive models only) Threaded holes are provided on the back of the monitor for mounting using the provided brackets. User Manual: 2440L SW602154 Rev A, Page 14 of 34...
- Page 15 Rear VESA Mount (All models) A four-hole 200x100mm mounting pattern for M4 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-D, 200mm x 100mm. User Manual: 2440L SW602154 Rev A, Page 15 of 34...
-
Page 16: Chapter 4: Operation
The IntelliTouch/iTouch Plus touchscreen can be re-calibrated to your displayed video image, if needed, through the Calibration function in the Elo driver control panel. The IntelliTouch/iTouch Plus driver will only support multiple monitor if they are all using the User Manual: 2440L SW602154 Rev A, Page 16 of 34... - Page 17 To use multiple IntelliTouch/iTouch Plus monitors, plug in monitors to calibrate, double-click on the EloConfig desktop shortcut to run Elo Touchscreen Configuration screen. Click on “Calibrate Touch Screens…” to calibrate multiple monitors. User Manual: 2440L SW602154 Rev A, Page 17 of 34...
- Page 18 Tap monitor screen to identify monitor’s identity as shown below. Identity of the monitor will display. Click on “OK” to proceed to calibration. User Manual: 2440L SW602154 Rev A, Page 18 of 34...
- Page 19 Calibrate touch as targets appear on corners of the screen. Follow instructions on screen. Test touch/drag performance to verify calibration accuracy, “Accept” or “Retry” to redo calibration process. Run touch calibration on each monitor that is plugged in. User Manual: 2440L SW602154 Rev A, Page 19 of 34...
-
Page 20: Gesture Support
Refer to the technical specifications for this monitor at http://www.elotouch.com for a list of these Preset Video Modes. User Manual: 2440L SW602154 Rev A, Page 20 of 34... -
Page 21: On-Screen Display (Osd)
Moves the image horizontally on the display in single-pixel increments. H-position Default: centered. Only applicable for VGA input video Moves the image vertically on the display in single-pixel increments. V-position Default: centered. Only applicable for VGA input video User Manual: 2440L SW602154 Rev A, Page 21 of 34... - Page 22 This feature saves you from having to reset your choices every time the touchmonitor is unplugged or powered off and on. If there is a power failure, the touchmonitor settings will not default to the factory specifications. User Manual: 2440L SW602154 Rev A, Page 22 of 34...
- Page 23 Press and hold the “Menu” and “ ” buttons for two seconds to enable/disable the Power Locking feature. When the Power Locking is enabled, pressing the power switch will have no effect on the system. User Manual: 2440L SW602154 Rev A, Page 23 of 34...
-
Page 24: Chapter 5: Technical Support
If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Worldwide technical support phone numbers are available on the last page of this use manual. -
Page 25: Technical Assistance
Visit www.elotouch.com/products for technical specifications for this device Visit www.elotouch.com/go/websupport for online self-help. Visit www.elotouch.com/go/contactsupport for technical support. See this user manual’s last page for worldwide technical support phone numbers. User Manual: 2440L SW602154 Rev A, Page 25 of 34... -
Page 26: Chapter 6: Safety & Maintenance
• Ensure the environmental temperature and humidity are maintained within specification and do no block ventilation slots. • Monitors are not designed for outdoors. User Manual: 2440L SW602154 Rev A, Page 26 of 34... - Page 27 Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual: 2440L SW602154 Rev A, Page 27 of 34...
-
Page 28: Chapter 7: Regulatory Information
This Information Technology Equipment (ITE) is required to have a CE Mark on the Manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark User Manual: 2440L SW602154 Rev A, Page 28 of 34... - Page 29 (Removing or cutting the line cord ground may in crease RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. User Manual: 2440L SW602154 Rev A, Page 29 of 34...
- Page 30 X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this component is above the limit requirement in SJ/T11363-2006. For items marked with X, exemptions were taken according to EU RoHS. User Manual: 2440L SW602154 Rev A, Page 30 of 34...
- Page 31 V. Power Adapter Specifications Electrical Ratings: Input: 100 - 240VAC, 50/60Hz Output: 12VDC, minimum 4.16A, LPS (Power adapter needs to be UL approved) VI. Monitor Specifications Electrical Ratings: Input: 12VDC, 3A User Manual: 2440L SW602154 Rev A, Page 31 of 34...
- Page 32 Operating Conditions: Temperature: 0°C - 40°C Humidity: 20% to 80% (non-condensing) Altitude: 0 to 3,048m Storage Conditions: Temperature: -20°C - 60°C Humidity: 10% to 95% (non-condensing) Altitude: 0 to 12,192m User Manual: 2440L SW602154 Rev A, Page 32 of 34...
-
Page 33: Chapter 8: Warranty Information
Chapter 8: Warranty Information http://www.elotouch.com/Support/warranty.asp for more information. User Manual: 2440L SW602154 Rev A, Page 33 of 34... -
Page 34: Specifications
• Upcoming events • Press releases • Software drivers Getting in Touch with us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Europe...
