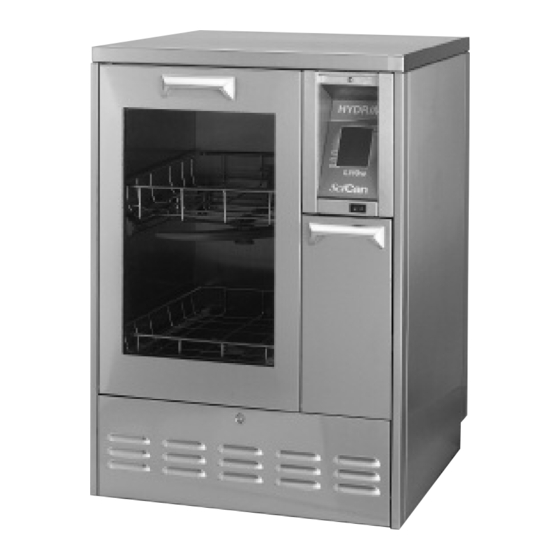

Instrument washer
Hide thumbs Also See for HYDRIM L110w:

Advertisement

Website:
www.yourCEBA.com
Customer Service:
Phone: 1-916-335-6113
Email: Support@yourCEBA.com
Product Information and Technical Support:
Phone: 509-747-5027
email: Info@yourCEBA.com
HYDRIM
L110w
®
• Operator's Manual
page 1-26
• Manuel de l'utilisateur
page 26-54

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYDRIM L110w and is the answer not in the manual?

Questions and answers

Summary of Contents for SciCan HYDRIM L110w

  • Page 1 Website: www.yourCEBA.com Customer Service: Phone: 1-916-335-6113 Email: Support@yourCEBA.com Product Information and Technical Support: Phone: 509-747-5027 email: Info@yourCEBA.com HYDRIM L110w ® • Operator’s Manual page 1-26 • Manuel de l’utilisateur page 26-54...
  • Page 2: Table Of Contents

    8. Material Safety Data Sheet ..23 5.4 Activating the Hydrim L110w ..9 9. Specifications ....26 5.5 Interrupting / Aborting a Cycle .
  • Page 3: Introduction

    Contents of this manual are subject to change without notice to reflect changes and improvements to the Hydrim product. The Hydrim L110w should only be installed and serviced by a qualified contractor as it is an Installation Category 2 device. Before connecting the unit, the installer should check that the voltage and frequency of the electrical supply correspond with the details in the installation instructions.
  • Page 4: Important Information

    2. Important Information The following symbols appear in this book. Caution, there is a potential hazard to the operator. This situation may lead to a mechanical failure. This is important information. The following symbols appear on the touchscreen: Used to stop the cycle Forward Arrow –...
  • Page 5: Disclaimers

    3. Disclaimers Do not permit any person other than authorized personnel to service, maintain or supply parts for your Hydrim L110w. SciCan shall not be liable for incidental, special or consequential damages caused by any maintenance or services performed on...
  • Page 6: Installation Instructions

    4. Installation Instructions Installation: To open the wash chamber door, plug in the unit, turn it on and press the unlock symbol. If the Hydrim is installed in a Sterilization Center, Alternatively, remove the screw in the kickplate the manufacturer of the Sterilization Center should and pull the ring.
  • Page 7: Drain Requirements

    4. Installation Instructions Connecting the water inlet hoses: Testing water hardness and setting the water softener (salt): Connect the hot and cold water inlet hoses to the hot and cold water supply. Hydrim is equipped with a built-in water softening system which needs to be adjusted according to Drain requirements: the local water hardness.
  • Page 8: Instructions For Use

    The Hydrim L110w is designed to clean general dental and medical instruments. SciCan recommends terminal sterilization after processing in the Hydrim L110w. When used correctly, the Hydrim L110w is effective for the removal of debris on instruments that may result in the insulation of microorganisms during terminal sterilization.
  • Page 9: Cycle Description Chart

    5. Instructions for Use 5.2 Cycle Description Chart P1 – Rinse and P2 – Regular P3 – Heavy Duty Hold* Cycle Cycle Cycle Description Use to prevent Use for moderately Use for heavily soil from drying soiled loose soiled instruments on instruments instruments.
  • Page 10: Baskets And Accessories

    5. Instructions for Use 5.3 Baskets and Accessories Observe the instrument manufacturer's recommendations for cleaning and care. When loading the unit, arrange loose instruments so that they do not touch one another. Instruments with concave surfaces or cavities should be placed so that water can drain freely. The following are included with the Hydrim: Rack for five 8"...
  • Page 11: Activating The Hydrim L110W

    5. Instructions for Use 5.4 Activating the Hydrim L110w Prior to activating the washer, check that the water supply is on and follow these steps: Open the chemical door and ensure that a box of HIP Cleaning Solution has been installed.
  • Page 12: Interrupting / Aborting A Cycle

    5. Instructions for Use The cycle will start by draining the unit for 20 seconds. The bar P2 Wash on the screen indicates the progression of the cycle. The stage within the cycle is shown beneath the bar (eg. Filling, Rinsing). The estimated time remaining (in minutes) is always displayed.
  • Page 13: Overview Of The Hydrim L110W Menus

    5. Instructions for Use 5.6 Overview of Hydrim L110w Menus HYDRIM SH11MR301 User Technician Setup Set Drying Time Unit No. Error History Language Selection Cycle Count Set Regeneration Set Button Beep Screen Saver Temperature C/F LCD Contrast...
  • Page 14: User Menu

    5. Instructions for Use 5.7 User Menu To access the user menu, follow these steps: Turn the Hydrim OFF and then ON. An i (information) will appear briefly at the bottom right hand of screen. HYDRIM SH11MR301 Touch the i to move to the Menu screen. Menu User Menu User...
  • Page 15: Technician Menu

    This allows the user to see the last Printout 1 Page 1/2 Set Drying Time three errors. Press the down arrow to HYDRIM L110w move to the next page / error. Press the Unit No. : 00 Error History Cycle Number: 000032...
  • Page 16: Setup Menu

    5. Instructions for Use 5.9 Setup Menu To access the Setup Menu, proceed to the menu screen by turning the Hydrim OFF and then ON. An i (information) will appear briefly at the bottom right hand corner. Menu User Technician Touch the i to move to the Menu HYDRIM screen and select Setup.
  • Page 17 5. Instructions for Use Setup Menu – Unit Number Unit No. If you have more than one Hydrim, you can designate them Unit #1, Unit #2, etc. Use the up and down arrow keys to select the unit number. The default is 0. Default 0 Setup Menu –...
  • Page 18 5. Instructions for Use Setup Menu – Set Button Beep Set Button Beep The user can select between having the unit beep or not beep whenever a screen button is touched. Turn the beep on or off by using the up and down arrows. Note that the default setting is ON.
  • Page 19: Opening The Door In Case Of Power Failure

    5. Instructions for Use 5.10 Opening the Door in Case of Power Failure If there is a power failure, remove the kickplate of the Hydrim. Remove the screw with a screwdriver and lift the kickplate up and toward you. Locate the ring and pull it to open the door.
  • Page 20: Care And Maintenance

    6. Care and Maintenance 6.1 Replacing the HIP Cleaning Solution The Hydrim L110w uses a 3.8L / 1 gallon container of HIP Cleaning Solution (Part number CS-HIPL). Use only the recommended cleaning solution and read the MSDS before inserting into the unit.
  • Page 21: Refilling The Water Softener

    4. Run a complete cycle, with no instruments. salt container 6.3 Using Rinse Aid Rinse-aid is not required when using the Hydrim L110w with HIP cleaning solution. There is a rinse-aid container in the Hydrim L110w, but it is not active and should not be filled.
  • Page 22: Cleaning The Hydrim L110W

    6. Care and Maintenance 6.4 Cleaning the Hydrim L110w To clean outer surfaces and the decal covering the touchscreen, use a soft cloth moistened with soap and water or a surface disinfectant. Do not use harsh cleaning chemicals. If preparing the unit for transport or storage, waste water should be removed from the sump.
  • Page 23: Troubleshooting

    7. Troubleshooting Problem Possible Causes and Solutions Instruments are • Do not overload cassettes or instrument baskets. not clean • Do not load too many cassettes into the Hydrim. • Use the Heavy Duty cycle for cassettes and hinged instruments. •...
  • Page 24: Error Messages

    7. Troubleshooting Error Messages Error Cause Solution CF1 Water Heating The water does not reach the Call for service. failure required temperature in the specified time Check that the water hoses The water does not fill the CF2 Chamber are not kinked. Open the chamber within the specified time.
  • Page 25: Material Safety Data Sheet

    8. Material Safety Data Sheet 1.0 PRODUCT AND COMPANY IDENTIFICATION Product Name: HIP – Hydrim Cleaning Solution With Instrument Protection Product Use: Cleaner Manufacturer/Supplier: Virox Technolgies Inc. Address: 2815 Bristol Circle, Unit 4, Oakville, Ontario L6H 6X5 Phone #: (905) 813-0110 (W)HMIS Classification: Health: 2 Flammability: 0...
  • Page 26 8. Material Safety Data Sheet 4.0 FIRST AID MEASURES Eye: Immediately flush with water for 15 minutes while lifting eyelids and rolling eyes. Get medical attention if irritation develops or persists. Skin: Wash promptly with soap and water. Ingestion: Get medical help. Do NOT induce vomiting. If conscious and medical help not readily available, give water.
  • Page 27 8. Material Safety Data Sheet 8.0 PHYSICAL/CHEMICAL CHARACTERISTICS Physical State: Liquid Boiling Point: No Data pH: 9.5-10.5 Specific Gravity: 1.14-1.15@25°C Solubility in Water: 100% soluble in water. Appearance and Color: Clear colorless to slight yellow. Melting Point: No Data 9.0 PHYSICAL HAZARDS/REACTIVITY DATA Stability: Stable under normal conditions of handling, use and transportation.
  • Page 28: Specifications

    (Model number, serial number etc.). The serial number plate is located at the bottom left on the rear panel of the Hydrim L110w unit. A small label is located on the left hand side of the chemical door.
