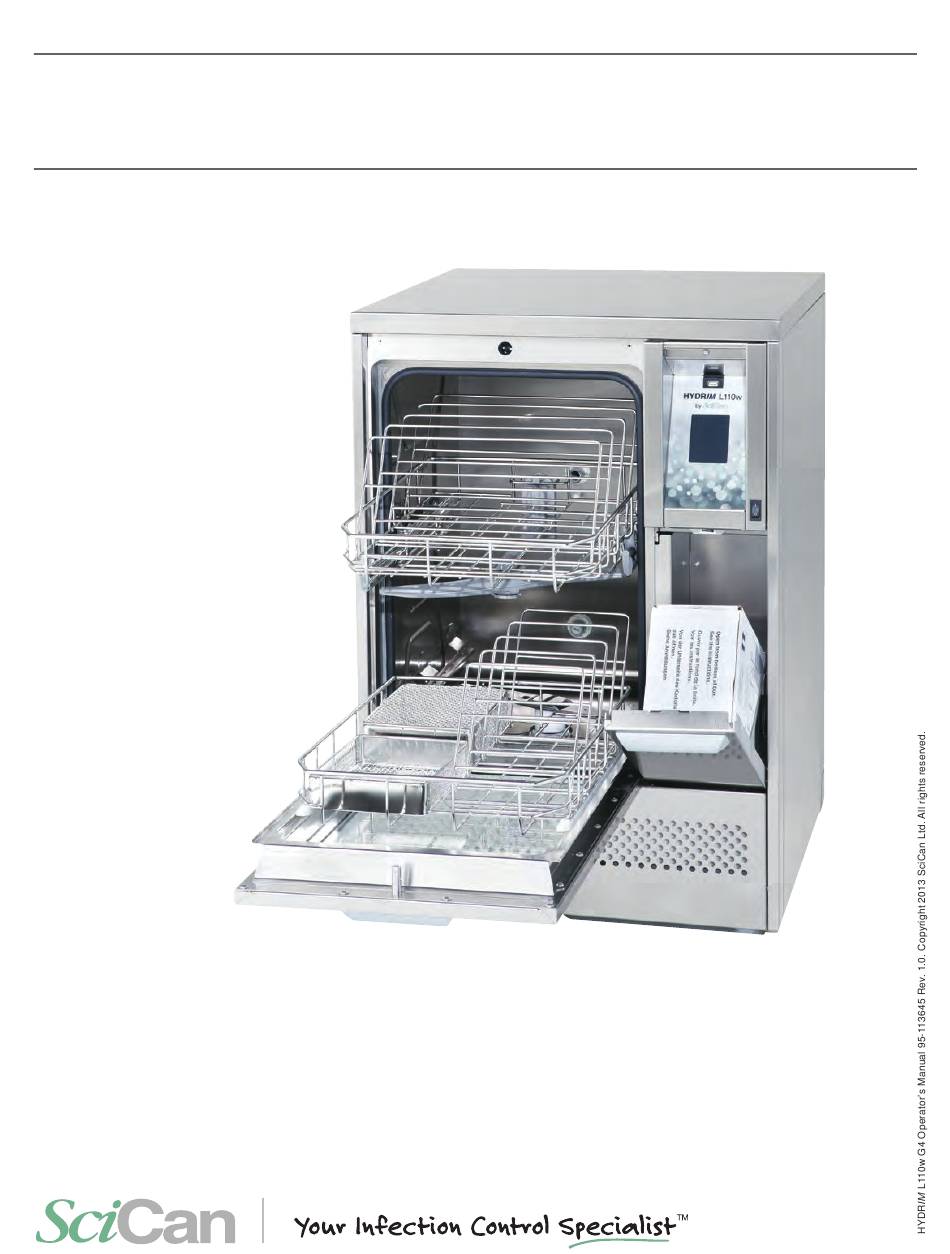

- Page 1 HYDRIM L110w G4 ® Operator’s Manual Mode d’emploi Bedienerhandbuch Manual del operador Manuale d’uso...
-
Page 2: Table Of Contents
Table of Contents 6. Care and Maintenance ... 30 1. Introduction ..... .1 6.1 Replacing the HIP™... -
Page 3: Introduction

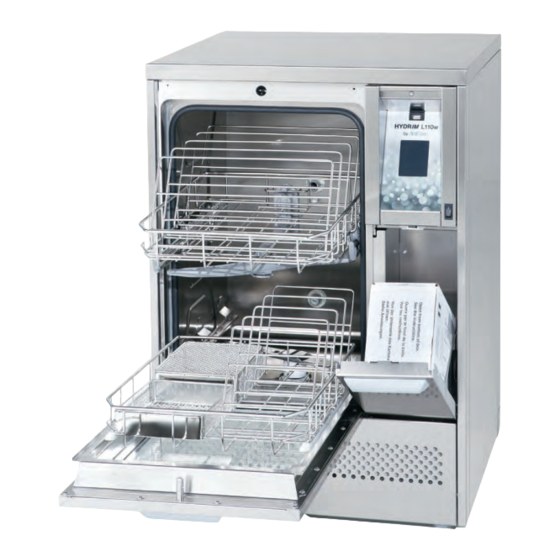

1. Introduction Thank you for selecting the HYDRIM L110w G4 instrument washer. The HYDRIM complements the STATIM and BRAVO™ autoclaves by quickly and hygienically ® preparing soiled instruments for sterilization. To ensure years of safe, trouble-free service, carefully review this Operator’s Manual before operating the unit. The HYDRIM L110w G4 is suitable only for the applications listed in this manual. -
Page 4: Important Information
2. Important Information The following symbols appear in this book. Caution, there is a potential hazard to the operator. This situation may lead to a mechanical failure. This is important information. -
Page 5: Disclaimers
The owner shall not allow any personnel other than the trained and authorized personnel to operate the unit. SciCan recommends leaving the unit turned ON at all times, in particular over times when no staff is in the office or when no water shut-off mechanism is installed. Leaving the unit turned ON will activate the drain pump if water is leaking into the chamber as a result of any faulty circumstance. -
Page 6: Installation Instructions
To open the wash chamber door, plug in the unit, turn it on and press the unlock symbol. Installation should be undertaken by a SciCan approved technician. The use of Alternatively, remove the screw in the kickplate an unapproved installer may invalidate and pull the ring. - Page 7 4. Installation Instructions Connecting the water inlet hoses: Connect the hot and cold water inlet hoses to the hot and cold water supply. Drain requirements: Connect the drain hose to the drain outlet. The drain hose can be attached to existing drain lines using a 3.5 cm / 1.5”...
- Page 8 Always ensure that personal protective equipment, if contaminated with HIP™ cleaning solution, is cleaned, or disposed of as appropriate. For comprehensive data on HIP™ cleaning solution, please visit SciCan.com to view or download a PDF of the Material Safety Data Sheet.
- Page 9 Please see the next section of this manual for recommended regeneration settings. Before using the HYDRIM, SciCan recommends testing the water and recording the results for water hardness, pH value, and water conductivity for future reference.
- Page 10 4. Installation Instructions Testing water quality Water Hardness Conversion and salt regeneration levels The HYDRIM L110w G4 is equipped with °dH Regen. a built-in water softening system that must (mg CaCO3 / Litre) be adjusted according to the local water hardness.
-
Page 11: Instructions For Use
All hinged instruments should be placed in open position in open baskets or in the hinged instrument rack (SciCan part number 01-110409S) in P3 Heavy-Duty cycle. When processing small or light objects in the HYDRIM use the basket with lid (SciCan part number 01-109966S). -
Page 12: Cycle Description Chart
5. Instructions for Use 5.2 Cycle Description Chart Total Time Water Cycle Prewash Wash Rinse w/o Drying Consumption P0 – Machine <30ºC/86°F <30ºC (cold) 16 L Cleaning Cycle (cold) 2 minutes minutes 4.23 Gal 3 minutes No initial draining. P1 – Rinse and Hold Cycle* <30ºC/86°F 60ºC/140°F... -
Page 13: Hints And Tips For Best Cleaning Results
5. Instructions for Use 5.3 Hints and tips for best cleaning results Remove all cement, composite material and amalgam from instruments at chairside prior to processing in the Hydrim. • Use only accessories, such as baskets, cassettes, trolleys and racks to hold instruments that are designed for the HYDRIM L110w G4. -
Page 14: Recommended Load Configurations
5. Instructions for Use 5.4 Recommended load configurations The intended purpose of the L110w G4 washer is a clinical general instrument washer, predominantly aimed at the general dental and medical markets. There will be many combinations of instruments that can be processed in the L110w G4 unit depending on: •... - Page 15 5. Instructions for Use Example 3 – hinged instruments, solid instruments and open hollow instruments For example: For example: Scalers, curettes, Rongeurs, forceps, dental elevators, scissors etc. single part mirrors, suction tubes etc. Example 4 – small & disassembled instruments For example: Two piece mirrors, scalpel knife handles, etc.
-
Page 16: Baskets And Accessories
5. Instructions for Use 5.5 Baskets and Accessories The following are included with the HYDRIM: Rack for five 8” x11” Basket with lid. cassettes, for upper Quarter size (1/4). or lower trolley. Full size (1/1). Part-number Part-number 01-109966S 01-109963S Rack for five medium Hygiene basket for size cassettes, for upper loose instruments. -
Page 17: Touchscreen Overview
5. Instructions for Use 5.6 Touchscreen overview Programs Unlock door Network connectivity (green when active) Settings USB status (green when active) Water softener, detergent level, and door status... -
Page 18: Set Up Menu Overview
5. Instructions for Use 5.7 Set up menu overview User Technician Setup Cleaning Language Baud Rate Set Drying Time Country Set EOL CR/LF Set Wash Time Date/Time Set Regeneration Cycle Count Unit No. LCD Contrast Process Enforced Network Setup Theme User Screen Saver Remote Screen... -
Page 19: 5.22 Setup Menu Options
5. Instructions for Use 5.8 Setting the language The messages displayed by your HYDRIM can be presented in a number of different languages. To change the current language, follow these steps: Language Scroll to and select. From the LANGUAGE screen, press to scroll through the list of languages. - Page 20 5. Instructions for Use 5.11 Setting the date Scroll to and select DATE. Date / Time From the DATE screen, use the keypad to set the date. Press to save and to return to the Setup menu. To change the format in which the date appears, return to the Setup menu and use to scroll to DATE FORMAT.
- Page 21 5. Instructions for Use 5.15 Turning the button sound ON or OFF The HYDRIM is preset to beep when a button is pressed. If you would like to turn the button sound off, follow these steps: NOTE: Turning OFF the button sound does NOT turn off other alarms and cycle notification beeps.
- Page 22 5. Instructions for Use 5.18 Adjusting the screen contrast The touchscreen is calibrated for the lighting condition of most sterilization centers. Should you need to adjust the contrast for your office, follow these steps: LCD Contrast Scroll to and select. to scroll through your contrast options.
- Page 23 5. Instructions for Use 5.21 Creating a User PIN From the User PIN screen, you can assign up to four PINs. To assign a PIN, follow these steps: Scroll to User and select. User PIN To assign a user PIN, select and use the numeric keypad to enter a number (up to 4 digits) and select to save and...
-
Page 24: Connecting To A Network
In Canada and USA you can call our network support line at 1-800-635-5179 for additonal networking support. 5.24 Connecting to a wireless network The HYDRIM can be configured for wireless use by connecting the Ethernet port to an external wireless bridge / access point. SciCan currently recommends the use of the ® ®... -
Page 25: Activating The Hydrim L110W G4
5. Instructions for Use 5.25 Activating the HYDRIM L110w G4 Prior to activating the washer, check that the water supply is on and follow these steps: Open the chemical door and ensure that a box of HIP™ Cleaning Solution has been installed. -
Page 26: Interrupting / Aborting A Cycle
5. Instructions for Use 7. The cycle will begin. The cycle will start by draining the unit. The bar on the screen indicates the progression of the cycle. The stage within the cycle is shown beneath the bar (e.g. Filling, Rinsing). The estimated time remaining (in minutes) is always displayed. -
Page 27: Additional User
5. Instructions for Use 5.27 Additional user and setup menu functions To access the user or setup menus, follow these steps: Chamber cleaning This cycle is used to periodically remove hardwater deposits from the chamber walls and racks. Pour 1.0 litres (0.26 gal) of vinegar into the chamber before starting the cycle. -
Page 28: Opening The Door In Case Of Power Failure
5. Instructions for Use 5.28 Opening the Door in Case of Power Failure If there is a power failure, remove the kickplate of the HYDRIM. Remove the screw with a screwdriver and lift the kickplate up and toward you. Locate the ring and pull it to open the door. -
Page 29: Cycle Information
5. Instructions for Use – 5.29 Storing and Retrieving Cycle Information The HYDRIM L110w G4 has an internal Data Logger capable of storing all the data on every cycle, whether successful or incomplete, for the lifetime of the unit. You can access this information through the touchscreen, through the web portal or by using a USB storage device. - Page 30 5. Instructions for Use – Retrieving cycle information using the USB data back up The USB storage device can be used to transfer cycle information stored in the unit to a computer. Best practice suggests this should be done once a week. To transfer data using the USB port, follow these steps: 1.
-
Page 31: Printer / Data Logger Setup
The HYDRIM L110w G4 has an RS-232 port at the back, and can be used with an external printer or the SciCan Data Logger. The printers in the chart below have been tested with the HYDRIM. To add or change a printer or SciCan Data Logger, follow these steps: Turn off the HYDRIM and the printer or Data Logger before connecting these devices to the unit. -
Page 32: Care And Maintenance
6. Care and Maintenance 6.1 Replacing the HIP™ Cleaning Solution The HYDRIM L110w G4 uses a 3.8L / 1 gallon container of HIP™ Cleaning Solution (Part number CS-HIPL). Use only the recommended cleaning solution and read the MSDS before inserting into the unit. HIP™... - Page 33 6. Care and Maintenance Connect new container and insert into the cleaning solution compartment. Follow the instructions printed on each cleaning solution container. Close the door. Turn the power switch ON To prime the cleaning solution dosing pump, press the water softener/detergent icon on the main screen.
-
Page 34: Salt Reservoir
6. Care and Maintenance 6.2 Refilling the Water Softening Salt Reservoir When a red X appears on the detergent and water softener level indicator, press on the icon to deter- mine if the problem lies with the water softener or cleaning solution level. -
Page 35: Filter And Wash Arm Maintenance
6. Care and Maintenance 6.4 Filter and Wash Arm Maintenance Filter Maintenance: Inspect the filter in the bottom of the chamber daily for debris and clean if necessary. To clean, remove the filter, rinse under a tap and replace. Ensure that the filter is firmly locked into position when replaced. -
Page 36: Annual Maintenance
• Re-validation if required by local regulations. Bi-Annually technician To ensure that the ongoing efficacy of the machine is assured, SciCan recommends that the following periodic testing protocols are observed. IMPORTANT NOTES: • This document outlines the minimum requirements to ensure that the equipment performs to specification. - Page 37 6. Care and Maintenance Tests to be performed by the user: Door lock check This test is to ensure that the door cannot be opened while a cycle is running or a cycle will not start with the door open. To check that these features are working correctly, attempt to open the door using the handle immediately after a cycle has started.
-
Page 38: Troubleshooting
7. Troubleshooting Problem Possible Causes and Solutions • Do not overload cassettes or instrument baskets. Instruments are • Do not load too many cassettes into the HYDRIM. not clean • Use the Heavy Duty cycle for cassettes and hinged instruments. •... - Page 39 7. Troubleshooting Error Messages Error Cause Solution The water does not reach the Call for service. CF1 Water Heating required temperature in the failure specified time Check that the water hoses The water does not fill the CF2 Chamber are not kinked. Open the chamber within the specified time.
-
Page 40: Specifications
8. Specifications Height, freestanding: 850 mm / 33.5” Width: 600 mm / 23.75” Depth: 600 mm / 23.75” Depth with door open: 1200 mm / 47” Weight: 80 kg / 176 lbs. Maximum Running Noise: 78 dB(A) Hot and cold water connections: 3/4” Inlet water pressure: 1-10 bar Incoming hot water temperature: 50-70°C / 122-158°F Drain: 3/4”... -
Page 41: Warranty
10. Warranty Limited Warranty For a period of one year, SciCan guarantees that the HYDRIM L110w G4, when manufactured in new and unused condition, will not fail during normal service due to defects in material and workmanship that are not due to apparent abuse, misuse, or accident.
