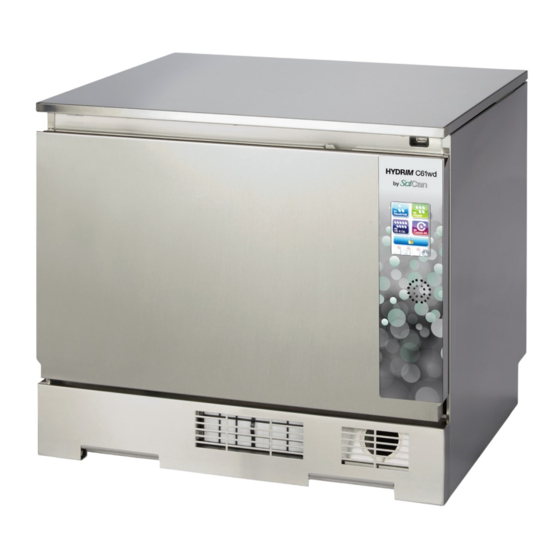

HYDRim C61wd G4
instRument wasHeR
• Installation Manual and Preventative Maintenance Schedule
• Manuel d'installation et calendrier d'entretien préventif
• Installationshandbuch mit Wartungsinformationen und - intervallen
• Manuale di installazione e programma di manutenzione preventiva
• Manual de instalación y programa de mantenimiento preventivo
Advertisement
Table of Contents
Related Manuals for SciCan HYDRim C61wd G4
Summary of Contents for SciCan HYDRim C61wd G4

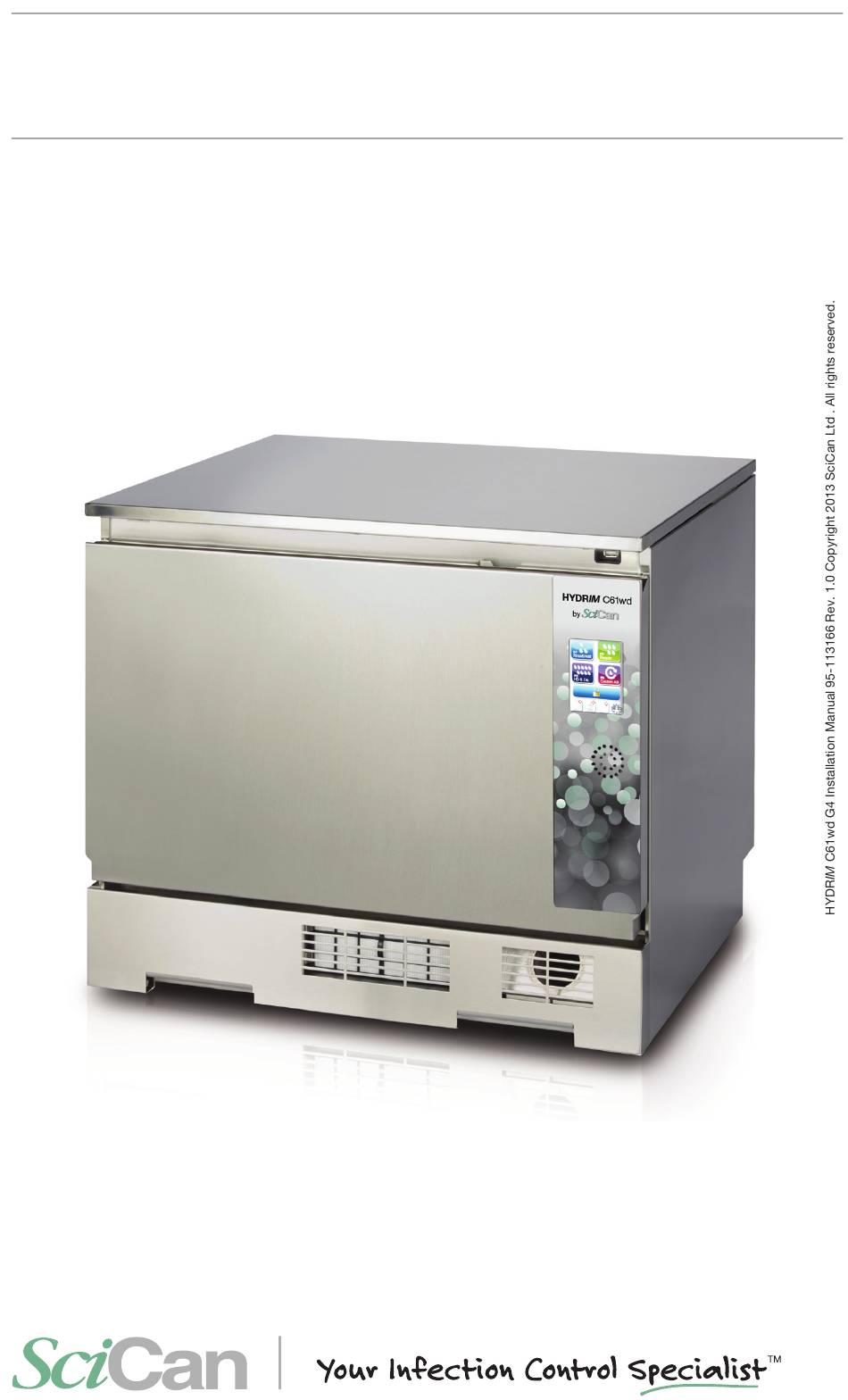

- Page 1 HYDRim C61wd G4 instRument wasHeR • Installation Manual and Preventative Maintenance Schedule • Manuel d’installation et calendrier d’entretien préventif • Installationshandbuch mit Wartungsinformationen und - intervallen • Manuale di installazione e programma di manutenzione preventiva • Manual de instalación y programa de mantenimiento preventivo...
- Page 2 Annual Service Requirements ............ 15 EU Representative HYDRIM and STATIM are registered trademarks of SciCan Ltd. BRAVO, HIP, and SysTM are trademarks of SciCan Ltd. All other trademarks referred to SciCan GmbH in this manual are the property of their respective owners.
-
Page 3: Electromagnetic Environment
HYDRIM C61wd G4 Installation Instructions NOTE: • The HYDRIM C61wd G4 unit should only be installed by a trained, SciCan approved technician. • Installation should only proceed after the satisfactory completion of the pre installation documentation. Model Number________________________ Serial no.____________________ There are several factors that may affect the performance of your HYDRIM. -
Page 4: Inventory Check
Please ensure cleaning solution has been separately provided prior to installation. Unit installation Installation configurations The HYDRIM C61wd G4 may be installed under-bench or free standing dependent on space and service availability. The configuration options are: Option 1. Cabinet / Sterilization Center... - Page 5 HYDRIM C61wd G4 Installation Instructions Option 2. Sliding Shelf Option 3. Counter Top NOTE 1 - Although not required, if the HYDRIM is installed under a counter, it is recommended to allow a 10 mm space at the top, back and both sides of the unit.
- Page 6 • Unpack unit and remove all restraining ties • Locate unit in approximate position NOTE 1 - Do not move the HYDRIM C61wd G4 into place by maneuvering the open wash chamber door. This may cause the door to become misaligned and can cause leakage.
- Page 7 HYDRIM C61wd G4 Installation Instructions Connect water feed pipes to machine and relevant services: Water feed requirements: Hot water/RO feed with G ¾” shut off valve (washing machine fitting) • Maximum distance from installation less than 1.50 meters • Pressure between 2 and 5 bar Cold water feed with G ¾”...
-
Page 8: Connecting The Drain Hose
HYDRIM C61wd G4 Installation Instructions Connect drain tube to machine and relevant services Drain requirements: • Maximum distance from installation is 1.50 meters with supplied drain hose • The maximum length of an extended drain hose should not exceed 3.30 meters •... - Page 9 • Supply location (see notes below) • Power cord routing (see note below) NOTE 1 – The HYDRIM C61wd G4 is supplied with a domestic fused plug as standard. A dedicated hard wired 12A supply can also be used. NOTE 2 - Due to the power requirements of the HYDRIM, (Rated load 2 kW) especially during drying, it is advised that no other equipment is connected to the same supply outlet.
