SciCan Hydrim L110w Operator's Manual
Instrument washer.
Hide thumbs
Also See for Hydrim L110w:
- Service manual (39 pages) ,
- Operator's manual (28 pages) ,
- Installation manual (4 pages)
Related Manuals for SciCan Hydrim L110w
Summary of Contents for SciCan Hydrim L110w

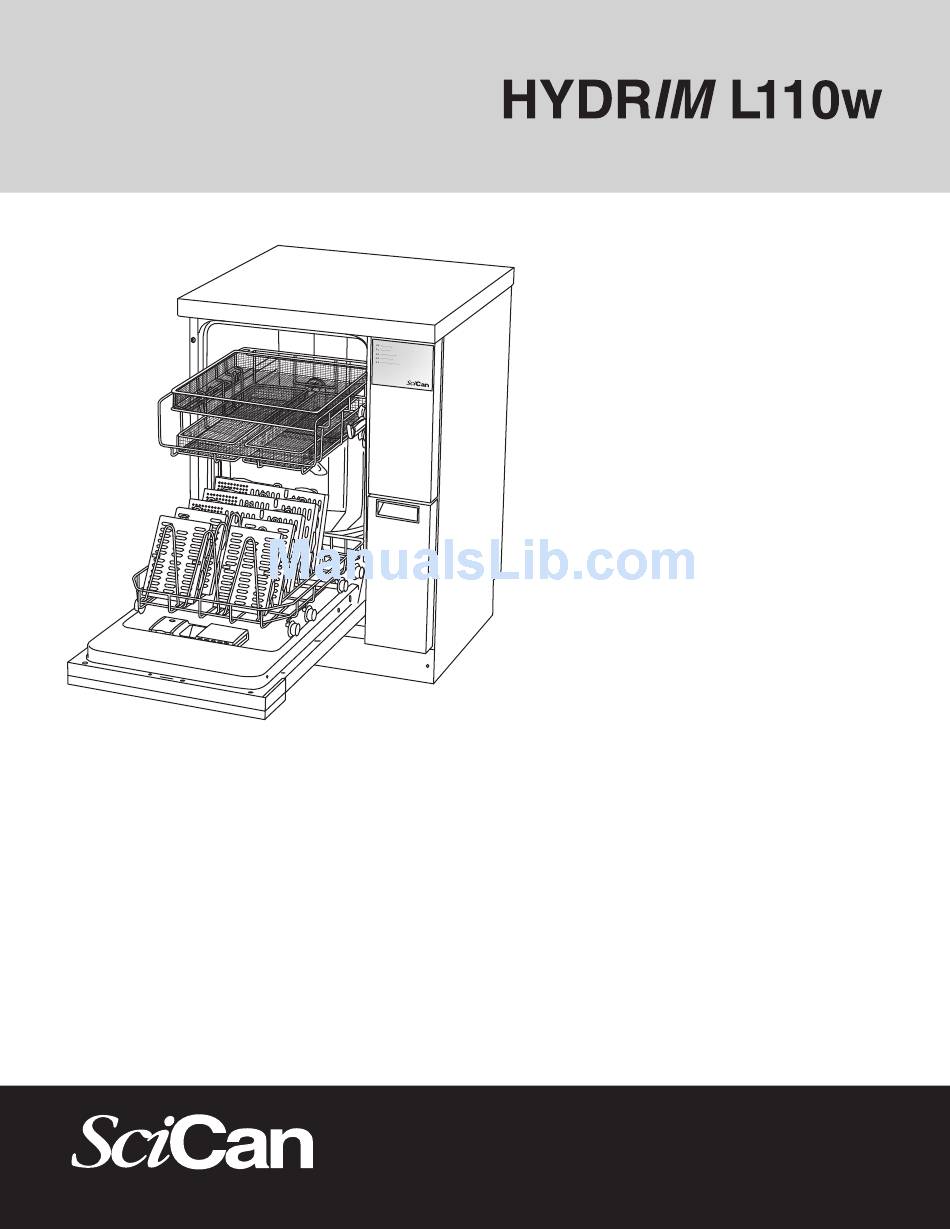

- Page 1 • Operator’s Manual HYDR IM L110w Operator's Manual 95-108257 Rev. 2.0 Copyright 2003 SciCan. All rights reserved. www.scican.com...
-
Page 2: Table Of Contents
1-800-667-7733 For all service and repair inquiries: In Canada / United States: 1-800-870-7777 SciCan Inc. 500 Business Center Drive,Pittsburgh, PA 15205 USA Phone: (412) 494-0181 Fax: (412) 494-4794 Toll free: 1-800-572-1211 Email (Service and Repair): techservice.ca@scican.com Email: customer_servicecanada@scican.com Page 1... -
Page 3: Introduction
To ensure years of safe, trouble-free service, carefully review this Operator’s Manual before operating the unit. The Hydrim L110w is suitable only for the applications listed in this user manual. The manufacturer cannot be held responsible for damage caused by improper use. -
Page 4: Important Information
2. Important Information Figure 1 ■ ■ ■ ■ ■ ■ power button ■ door handle ■ display ■ chemical indicator ■ salt indicator ■ cleaning solution drawer ■ upper trolley ■ lower trolley ■ ■ rinse-aid container ■ ■ ■... -
Page 5: Disclaimers
Do not permit any person other than authorized personnel to supply parts or maintain your Hydrim L110w. SciCan shall not be liable for incidental, special or consequential damages caused by any maintenance or services performed on the Hydrim L110w by... -
Page 6: Installation
4. Installation 4.1 Suggested Installation Configurations The Hydrim L110w should only be installed and serviced by a qualified SciCan contractor, as it is an Installation Category 2 device. The contractor should be experienced in installing equipment that requires electrical hook-up as well as plumbing. -
Page 7: Connection To Water Intake
The unit must be connected to the water supply in accordance with all local and national plumbing codes. SciCan recommends a hard plumbing installation within 1.5m / 5ft. of the unit. If additional distance is necessary, commercial grade plumbing hose must be used to minimize leaks. -
Page 8: Installation Tips
13 ft. Make sure that the extension hoses for cold and hot water can withstand the water line pressure. f) The Hydrim L110w is constructed with an air gap / anti-siphoning device on the inlet hoses and drain hose. No additional air gap / anti-siphoning device is neccessary. -
Page 9: Instructions For Use
5.2 Instrument Reprocessing Recommendations When used correctly, the Hydrim L110w is effective for the removal of debris on instruments that may result in the insulation of microorganisms during a terminal sterilization. Prior to inserting your instruments into the Hydrim, consult the manufacturer's reprocessing instructions. -
Page 10: Inventory Of Goods
• When processing small objects in the Hydrim use the basket with hinged lid (SciCan part number 01-108294). Failure to do so will result in small objects being thrown out of the baskets, which may cause damage to the machine. -
Page 11: Accessory Configurations
Statim 2000 basket Basket with hinged lid Part number 01-108231 Part number 01-107240 Part number 01-108294 The following items are optional, allowing you to customize the Hydrim L110w to your needs: Large basket Rack for 5 large cassettes Part number 01-108210 for upper trolley 350 mm X 368 mm X 64 mm (13.75"... -
Page 12: Activating The Unit
2. If a new cycle is not selected, the unit will re-start the previous cycle from the beginning. This ensures that instruments are properly washed. NOTE: If the cycle is interrupted during the drying phase, it is considered complete and the Hydrim L110w will not restart automatically as described in (2) above. Page 11... -
Page 13: Maintenance
6. Maintenance 6.1 Hydrim Cleaning Solution The Hydrim L110w uses exclusively Hydrim Cleaning Solution. The unit will not perform as outlined by SciCan using other cleaning solutions or cleaning products. Also, using other cleaning solutions or cleaning products may damage the unit, cause excessive foaming and may void the warranty. -
Page 14: Water Softener
Solution has sufficient softening properties to minimize water spots, residual soap, scale and calcium build-up, the Hydrim L110w is shipped with the softening salt setting at 0. If you are in an area where the water hardness is higher than normal, the use of water softening salts and rinse-aid may improve the cleaning results. -
Page 15: Rinse-Aid
To add water softening salts, follow these steps: 1. Open the salt container lid. 2. Upon first use of the Hydrim L110w, pour approximately 1 litre (1 quart) of water into the salt container. It is not necessary to add water during subsequent refills of the salt container. -
Page 16: Filters
6. Maintenance cont’d 6.4 Filters The filters prevent large particles in the water from reaching the pump. These particles may occasionally block the filters. coarse filter To ensure the filters are debris free, follow these steps: 1. Check the filters daily for debris and remove if necessary. -
Page 17: Troubleshooting
Chamber Improper wash, • Check for water intake obstruction. filling failure. cycle aborted. • Call for a SciCan technician if water intake is normal. Chamber Improper wash, • Call for a SciCan technician. temperature cycle aborted. -
Page 18: Scican
• Cut in electricity supply to unit. • Check curcuit breaker. • Water leakage in the Hydrim. Call a SciCan technician. Knocking sound can be heard while washing • A wash arm is knocking agains the items inside is taking place. - Page 19 7. Troubleshooting cont’d Debris is found on the instruments. • The unit was not loaded properly. Water jets could not reach all surfaces. • The instrument cassettes or baskets were overloaded. • There were too many cassettes or baskets in the unit. •...
-
Page 20: Warranty
SciCan is excluded and disclaimed by SciCan. If you would like to learn more about SciCan products and features, visit our website at www.scican.com. -
Page 21: Specifications
9. Specifications External Dimensions: Height (free standing) 850 mm / 33.5" Height (built in) 810 mm / 32" Width 600 mm / 23.75" Depth 600 mm / 23.75" Depth with door open 1143 mm / 45" Chamber Dimensions: Height 609 mm / 24" Width 388 mm / 15.25"...
