  • Page 1 Owner Manual ELECTRIC BICYCLES Hand Built in Europe batribike.com...
  • Page 2 YEAR IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE For your safety and to ensure a long and trouble free life of your Batribike bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.

  • Page 3: Table Of Contents

    Thank you for purchasing a BATRIBIKE Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator may show charge this cannot be relied upon until the battery has had the initial full charge.

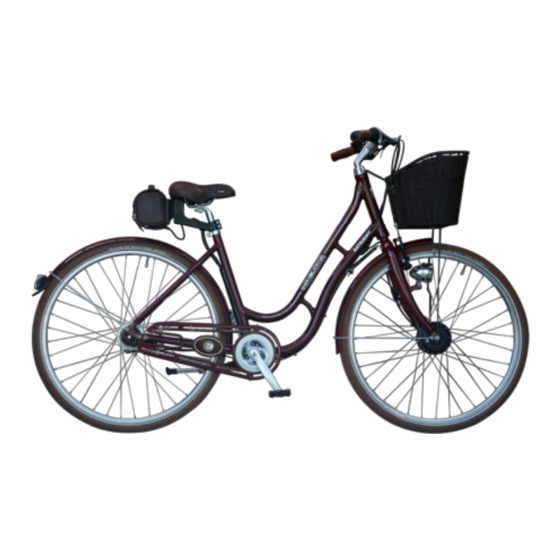

  • Page 4: Parts Identification

    UNDERSIDE OF CLAMP PARTS IDENTIFICATION We continually strive to ensure that we provide you with the best possible products, therefore SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Rear Brake Lever Front Vee Brake Bell Front LED Light Handlebar Adjust (Bar Rotation) Front Tyre 28 x 1.6 (Schwalbe) Front Brake Lever Front Hub Motor...
  • Page 5 OTHER SIDE ON INSIDE OF FRAME (Chainstay) OTHER SIDE HANDLEBAR DISPLAY OPTIONS STANDARD FITMENT (LED) SHOWN LEFT Mini LCD and CENTRE LCD (NOT SHOWN) ALSO AVAILABLE AS UPGRADES...

  • Page 6: Battery Care & Charging

    BATTERY CARE & CHARGING Your Batribike Electric Bicycle uses a Lithium battery for it's power and the following points will directly affect battery life and performance. First time use Your battery will be supplied in a state of sleep from the factory. The first time you use the battery it requires activation by being fully charged.
  • Page 7 Using the Charger Two types of battery charger are used by BATRIBIKE. (Only one will be supplied). Both have a charge light which will display RED when charging and change to GREEN when the battery is charged. The alternative type charger also has a second light which shows RED when mains power is applied.

  • Page 8: Using The Power Assistance

    Usage Your BATRIBIKE electric bicycle has a choice of display options available. For the QUINTESSENTIAL the LED type is fitted as standard to the bike. LED Display See page 10 for operation The operation of the LED system provides adjustable SPEED in five selectable steps.
  • Page 9 Display Upgrades Mini LCD See separate manual for this upgrade. The operation of the Mini LCD system has four selectable POWER levels. Level 1 gives 25% of the power, level 2 - 50% up to level 4, 100% power. Speed range is from 0 to 15 mph in all levels. This is available as an easy to fit upgrade.
  • Page 10 LED Operation Switching On To use under electric power, switch on at the key switch on the side of the battery, then press and hold the DOWN button on the handlebar LED display until the blue lights are seen. Control Buttons By means of the three buttons, UP, DOWN and 6 Km/h, on the handlebar mounted display unit, the various functions of the power controller can...
  • Page 11 SOON AS POSSIBLE Bicycle Lights Your BATRIBIKE Electric Bicycle is supplied with powerful LED lights on the front and rear. The rear light is switched on whenever the battery is turned on via the key switch. The front light is activated by pressing the LIGHT button on the handlebar display.
  • Page 12 Pedal Assistance There are 5 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 1 (Lowest), to Level 5 (Highest). The motor will then be activated upon pedalling. RANGE SHOWN WITH PEDAL ASSISTANCE FROM THE MOTOR STANDARD BATTERY LEVEL...
  • Page 13 If the assistance level is set to ZERO, then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Diagnostic Error Messages If an error occurs the LED display will show a code by flashing the first battery light. Make a note of the number of flashes and turn off the bicycle power at both the LCD and the battery switch. After 2 minutes turn on the power again.

  • Page 15: Special Battery Features

    Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.

  • Page 16: Standard Bicycle Functions

    STANDARD BICYCLE FUNCTIONS Gears Your BATRIBIKE is provided with 7 speed Shimano Nexus hub gears with RevoShift gear change. To change gear you use the right handlebar twist selector. Gear number 1 is low for hills and rough terrain and gear 7 is high for normal road use.
  • Page 17 Take care, as an overloaded basket will make the bike less stable, especially when parked. All other operations of your BATRIBIKE Electric Bicycle are as per a normal pedal cycle.

  • Page 18: Adjusting To Suit The Rider

    The height of the saddle and the handlebars can be adjusted to suit the rider. If you do not feel confident with making these adjustments then your BATRIBIKE Dealer will be able to set up the bike initially. The saddle height is...
  • Page 19 The handlebars can be adjusted in a similar manner by loosening the Allen Bolt in the recess on the handlebars and moving up or down, then retightening. Take care not to exceed the limit marked on the stem. The handlebar rotation angle can be adjusted to suit the rider by loosening the Allen bolt located on the underside of the riser where it meets the handlebar.

  • Page 20: Maintenance Schedule

    Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if you are at all unsure about any of the procedures described. Normal maintenance is not covered under the warranty and this service may be chargeable.
  • Page 21 After 3,000 miles (5,000 km) (or YEARLY if sooner) ● General inspection We recommend you arrange to have a thorough inspection of your bicycle by a BATRIBIKE dealer. Tyre Pressures Recommended Tightening Torques Item Torque Item Torque The tyres should be...

  • Page 22: Warranty

    Cost incurred by loss of the bicycle’s usage. Brake blocks/pads, tyres, lights and cables etc. are considered as consumables and replacements are available from BATRIBIKE or may be obtained from your local cycle shop. In the event of a Warranty claim ●...
  • Page 23 5. In the unlikely event of a battery failure, the battery must be returned to Batribike, via your Batribike dealer for testing. If upon testing it is found that the above conditions have not been met then the warranty will not apply and the cost of replacement and carriage will be payable by the Customer.

  • Page 24: Specifications

    QUINTESSENTIAL - Specifications (SUBJECT TO CHANGE WITHOUT NOTICE) MOTOR GEARS 250W Front Hub mounted 7 Speed Shimano Nexus Hub Gears Promovec Motor with 3 year Warranty with Twist Type Gear Selector BRAKES WEIGHT of BIKE Tektro Vee brakes front 20.8 kg (45.9 lbs) without battery Roller brake rear 23.6 kg (52 lbs) with Standard Battery...
  • Page 28 Batribike Limited Unit 4, Ingleby Grange Ingleby Lincoln BATRIBIKE are LN1 2PQ Members of the Phone: 01427 787774 Bicycle Association of Great Britain E-mail: support@batribike.com ----- USER MANUAL QUINTESSENTIAL - ISSUE 3 - ©2019 Batribike Limited -----...
