Ozito HDR-3000 - Hammer Drill 710W Manual

WHAT'S IN THE BOX

SPECIFICATIONS

ozito.com.au

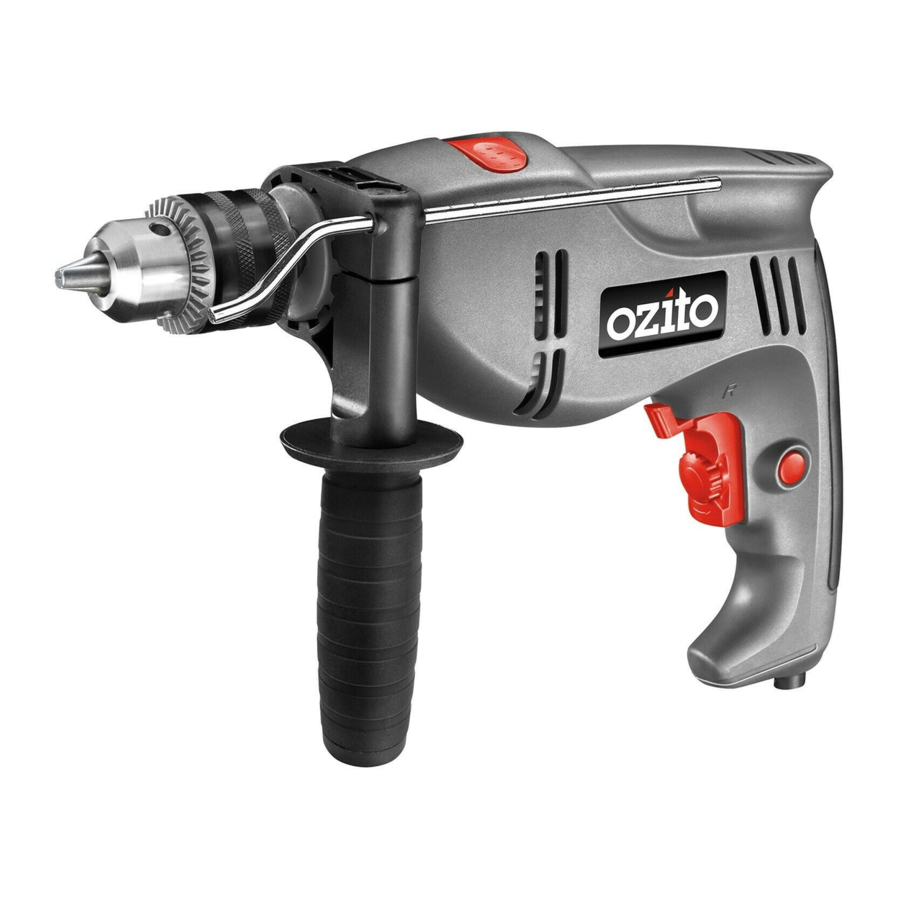

KNOW YOUR PRODUCT

SETUP & PREPARATION

Depth Rod
The depth rod helps to drill to a pre-determined depth.

3. To adjust, loosen the side handle.

4. Adjust the depth rod so the bit extends beyond the end of the rod to the required drilling depth.

5. Tighten depth rod by tightening side handle.


CHUCK

Keyless Chuck

1. Open the chuck jaws.

2. Insert the drill bit, making sure it is centred in the jaws.

3. Tighten the chuck jaws.

4. Ensure the chuck has a firm even grip around the bit.


OPERATION

ON/OFF SWITCH

This tool is recommended for the use with a residual current device with a rated residual current of 30mA or less.

Variable Speed Switch

1. Plug the tool into the mains power supply.

2. To start drilling squeeze the variable speed switch.


Lock On Button

4. To lock the drill on, squeeze the variable speed switch then the lock on button.


5. Release the variable speed switch, then the lock on button.


6. To unlock the drill, squeeze and release the variable speed switch.


CONTROLS

Speed Selection Dial

1. For faster speed, rotate speed selection dial clockwise. For slower speed, rotate dial anti-clockwise.


Forward/Reverse Lever

2. To set the drill to forward rotation, move lever to the right. For reverse rotation, move lever to the left.


Hammer Selector

3. To set hammer mode, slide the selector to the hammer icon. For drilling mode, slide to drill bit icon.


DRILLING

Before connecting to a power supply, perform a few simple checks.

1. Depress and release the variable speed switch to ensure it is not locked on.


2. Check the forward/ reverse lever for the correct setting.


3. Secure the material to be drilled in a vice or clamp to stop it turning whilst drilling.
4. Plug the hammer drill into the power supply.

5. Hold the drill firmly and place the bit at the point to be drilled.


6. Depress the variable speed switch to start the drill.


7. Move the drill bit into the workpiece.


Note: Do not force the drill or apply side pressure to elongate the hole. Let the drill do the work.

Helpful Tips
When drilling hard, smooth surfaces, use a centre punch to mark the desired hole location. This measure will prevent the drill bit from slipping off centre as you start the hole. However, the variable speed feature allows you to start holes without centre punching. To accomplish this, operate the drill at a low speed until you start the hole.

When drilling metals, use light oil on the drill bit to keep it from overheating. The oil will prolong the life of the bit and increase drilling action.

If the bit jams in the work piece or if the drill stalls, stop the tool immediately. Remove the bit from the work piece and determine the reason for jamming.

MAINTENANCE

• Keep the vents on the drill clean at all times, if possible, prevent foreign matter from entering the vents.
• After each use, blow air through the drill housing to ensure it is free from all dust particles which may build up. Build up of dust particles may cause the drill to overheat and fail.
• If the enclosure of the drill requires cleaning, do not use solvents. Use a moist, soft cloth only. Never let any liquid get inside the drill; never immerse any part of the drill into a liquid.

Carbon Brushes

When the carbon brushes wear out, the drill will spark and/or stop. Discontinue use as soon as this happens. Carbon brushes should be replaced prior to recommencing use of the drill. They are a wearing component of the drill and therefore not covered under warranty. Continuing to use the drill when carbon brushes need to be replaced may cause permanent damage to the drill. Carbon brushes will wear out after many uses. When the carbon brushes need to be replaced, take the drill to an electrician or a power tool repairer for a quick and low cost replacement. Always replace both carbon brushes at the same time.

Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the drill by an unauthorised person or by mishandling of the drill.

DESCRIPTION OF SYMBOLS

V	Volts	Hz	Hertz
~	Alternating current	W	Watts
/min	Revolutions or reciprocation per minute	no	No load speed
/bpm	Impact rate	ø	Diameter
	Double insulated		Regulator compliance mark
	Warning

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials.

Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

TROUBLESHOOTING

Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents. This is normal and does not indicate a problem.

Excessive sparking visible through the housing air vents and/or the drill failing to operate

May indicate the carbon brushes have worn out and need to be replaced. Carbon brushes should only be replaced by a qualified electrician or power tool repairer.

SPARE PARTS

Keyless Chuck	SPHDR3000-02
Brush Holder	SPHDR3000-18
Carbon Brushes	SPHDR3000-19
Handle Assembly	SPHDR3000-30
Switch	SPHDR3000-34

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486

E-mail: enquires@ozito.com.au
