Summary of Contents for Tecnoware ECO STRIP 0.50

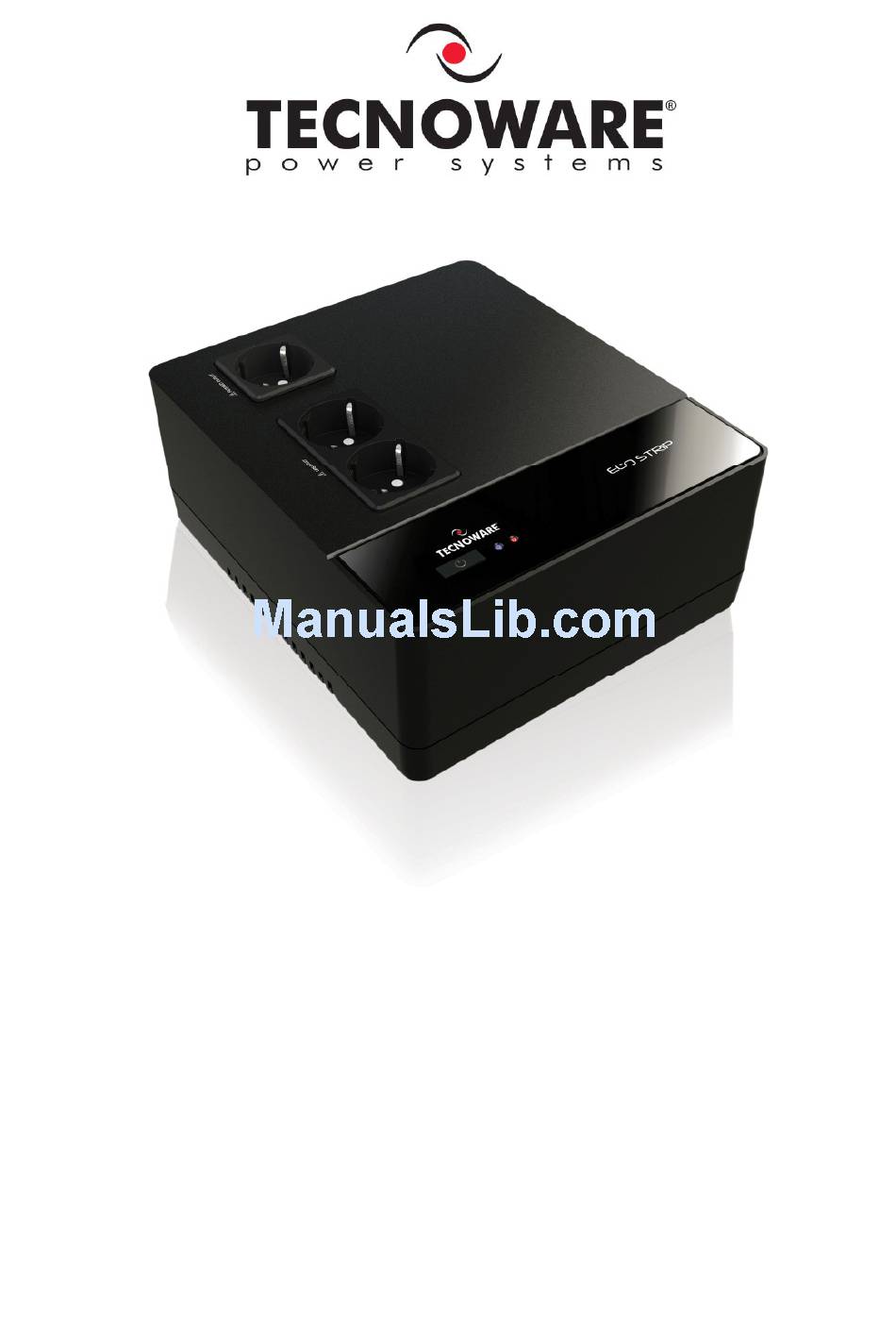

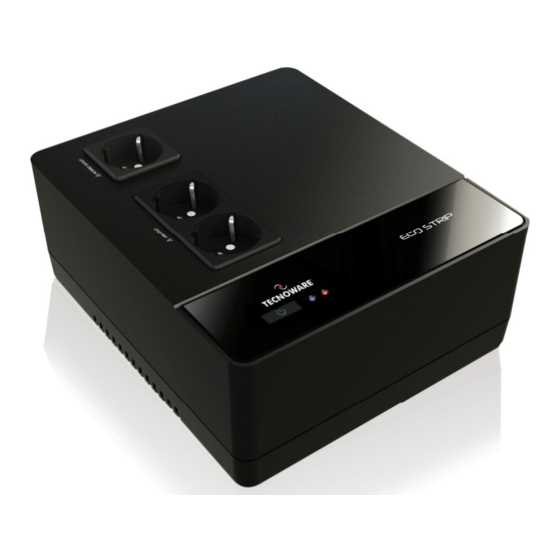

- Page 1 Uninterruptible Power Supply ECO STRIP 0.50 ECO STRIP 0.70 ECO STRIP 0.90 ECO STRIP 1.1 ECO STRIP 1.3 User’s manual...
-
Page 3: Table Of Contents
No part of this manual may be reproduced, even partially, without the authorisation of TECNOWARE s.r.l. TECNOWARE s.r.l. reserves the right to change specifications at any time and without notice. UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 4: Safety Warnings
Safety Warnings Read this manual carefully and completely before installing and using the TECNOWARE ECO STRIP Uninterruptible Power Supply, which, from here after, will also be referred to as UPS. This manual should be kept close to the UPS and read before the UPS is installed and used. -
Page 5: Introduction
Automatic restart after an automatic shut down due to a low battery condition once the AC utility power • returns. Adapts automatically to 50 or 60 Hz input frequency. • UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 6: Receipt And Site Selection
Do not keep liquids, flammable gases or corrosive substances near the unit. • Install the UPS on a properly tiled floor. Avoid the installation on a floor that is not tiled flat. • User’s manual UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 7: External Description
4 seconds in Battery mode and it flashes one time every second in Low Battery condition. The ALARM led: this led (red color) is on to indicate Alarm/Fault condition. Figure 1 – Front panel UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 8: Rear Side
In case of anomaly to the AC line (black-out), ONLY the UPS Output receptacles (#6 and #9) continue supplying the correct power to all connected equipment. Please connect all the non-critical devices to the UPS Output receptacles. User’s manual UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 9: Electrical Installation And First Start Up
TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 10: Functioning
Do not connect a load greater than rated value to the UPS (see POWER specifications in the chapter “Technical Characteristics”), as this may damage the unit. In this case the warranty is void. User’s manual UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 11: Fault Condition
The USB signals are all isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software ViewPower, compatible with the most popular Operative Systems UPS ECO STRIP 0.50 –... -
Page 12: Technical Characteristics
Dimension (W x H x D) 20 x 9,3 x 23 cm Net Weight 2,8 Kg 2,9 Kg 3,8 Kg 4,1 Kg 4,5 Kg Technical data may change without prior notice User’s manual UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 13: Maintenance
The new battery must be exactly the same type as the original one. Put inside the new battery and connect it as the original one. Reassemble the case cover. UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 14: Operator Safety
After it will be necessary to refer to qualified technical personnel. Original safety characteristics might not be if, for example, the UPS has visible damage or irregular operation. User’s manual UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 15: Troubleshooting
ALARM led on If the described anomalies should continue despite the advised troubleshooting, or should they manifest in any other form, please contact: TECNOWARE SERVICE www.tecnoware.com UPS ECO STRIP 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 16: Conformity To The European Directives
Conformity to the European Directives TECNOWARE S.r.l. confirms that ECO STRIP models comply with the requirements set out in: the Low Voltage Directive (Safety) 2006/95/EC and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2004/108/EC and following amendments. The following standards were applied:... - Page 17 TECNOWARE s.r.l. www.tecnoware.com...
