- Page 1 ИНСТРУКЦИЯ Tecnoware ERA PLUS 950 SCHUKO, 665W, line-Interactive, 2хSchuko (FGCERAPL952SCH)

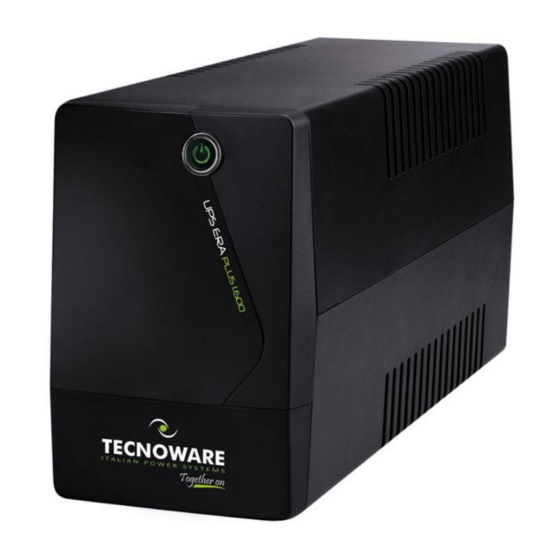

- Page 3 Uninterruptible Power Supply ERA PLUS 800 SCHUKO ERA PLUS 950 SCHUKO ERA PLUS 1.200 SCHUKO ERA PLUS 1.600 SCHUKO User’s manual...
-
Page 5: Table Of Contents
No part of this manual may be reproduced, even partially, without the authorisation of TECNOWARE s.r.l. TECNOWARE s.r.l. reserves the right to change specifications at any time and without notice. UPS ERA PLUS 800 – 950 - 1.200 – 1.600 SCHUKO... -
Page 6: Safety Warnings
Safety Warnings Read this manual carefully and completely before installing and using the TECNOWARE ERA PLUS Uninterruptible Power Supply, which, from here after, will also be referred to as UPS. This manual should be kept close to the UPS and read before the UPS is installed and used. -
Page 8: Introduction
1 Introduction ERA PLUS is a Line Interactive UPS (Uninterruptible Power Supply) specifically designed to protect your computer from any type of irregularities in the AC line (such as black-outs, under or over voltages, micro-interruptions), which often cause damage to your Hardware and Software. Under normal AC line condition, ERA PLUS performs output voltage regulation and filters frequently occurring electrical disturbances (such as transients, spikes, interferences, etc.), thus protecting all devices connected to the outlets, and recharging the batteries in an ideal way. -
Page 9: General Characteristics
2 General Characteristics ERA PLUS has all the advanced features, which guarantee maximum reliability and safety: • All functions are controlled by a microprocessor, giving full guarantee of high reliability. • Output Voltage regulation through AVR (Automatic Voltage Regulation). • Overload protection both in normal mode and in battery mode. -
Page 10: External Description
4 EXTERNAL DESCRIPTION 4.1 Front Panel The front panel informs the user about operating status, alarm conditions and measurements. Front panel shown below consists of two parts: The ON/OFF button with LINE/BATTERY led enables the user to turn ON/OFF UPS and indicates with the led (green color) always active the functioning in Normal Mode, it flashes one time every 4 seconds in Battery mode and it flashes one time every second in Low Battery condition. -
Page 11: Rear Side
4.2 Rear Side Figure 2 – Rear Side AC Input cable: to connect the UPS to the AC utility line. AC Input Thermal Protection: electrical specification: max current 5 A, voltage 250 V. Grounded UPS Output receptacles: Schuko/Italian type, black colour, to supply critical loads. Computer Interface (USB connector): it is the communication USB port (only for UPS ERA Plus 1.200 and UPS ERA Plus 1.600). -
Page 12: Electrical Installation And First Start Up
There are no internal parts in the UPS that are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. -
Page 14: Functioning
6 Functioning 6.1 Normal Mode The UPS typically works in Normal mode: Input mains power is available and its amplitude is within specifications. In Normal mode the LINE/BATTERY button/led is always on. During Normal mode, the UPS recharges the batteries and keeps them in an optimal charging voltage. 6.2 Battery Mode The UPS automatically runs in Battery mode if the AC Input Line voltage amplitude gets out of security limits (in case of a black-out or over-voltage/low-voltage): in this case, the UPS supplies the required output power by its... -
Page 15: Load Control
The USB signals are all isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software TecnoManager, compatible with the most popular Operative Systems. -
Page 16: Technical Characteristics
Altitude: max 3.000 mt Computer Interface 1 USB port Software TecnoManager, UPS Management Software downloadable free of charge from www.tecnoware.com Output sockets 2 UPS Output sockets (Schuko/Italian type) Dimension (W x H x D) 10,1 x 14,2 x 27,9 cm Net Weight 3.7 Kg... -
Page 17: Maintenance
Maintenance UPS Cleaning Before starting any cleaning operation, be sure that: 1. The AC Input Voltage for the UPS has been removed. 2. The UPS is OFF. Use only a cloth dampened with water to clean the unit. If UPS works in an environmental unusually dusty or dirty, remove the dirty from the ventilation holes. Before restarting the UPS be sure it is completely dry. -
Page 18: Operator Safety
Battery replacement must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. When replacing batteries, replace with the same type and number. CAUTION: A battery can present a risk of electrical shock and high short circuit current. - Page 20 TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Warning to the technical personnel authorized for service: since internal components are connected to the batteries, they will remain powered, and therefore dangerous, even after the UPS has been disconnected from AC power mains.
-
Page 21: Conformity To The European Directives
Conformity to the European Directives TECNOWARE S.r.l. confirms that ERA PLUS models comply with the requirements set out in: the Low Voltage Directive (Safety) 2014/35/EU and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2014/30/EU and following amendments. WARNING - This is a category C2 UPS product. In a residential environmental, this product may cause radio interference, in which case the user may be required to take additional measures. - Page 24 TECNOWARE s.r.l. www.tecnoware.com...
- Page 25 СМОТРИТЕ ТАКЖЕ Источники бесперебойного Стабилизаторы Светодиодные Защитные реле питания напряжения прожекторы Промышленные Аккумуляторные Умные датчики Генераторы светильники батареи Портативные зарядные Удлинители станции...
