Summary of Contents for Tecnoware EXA PLUS 1.0

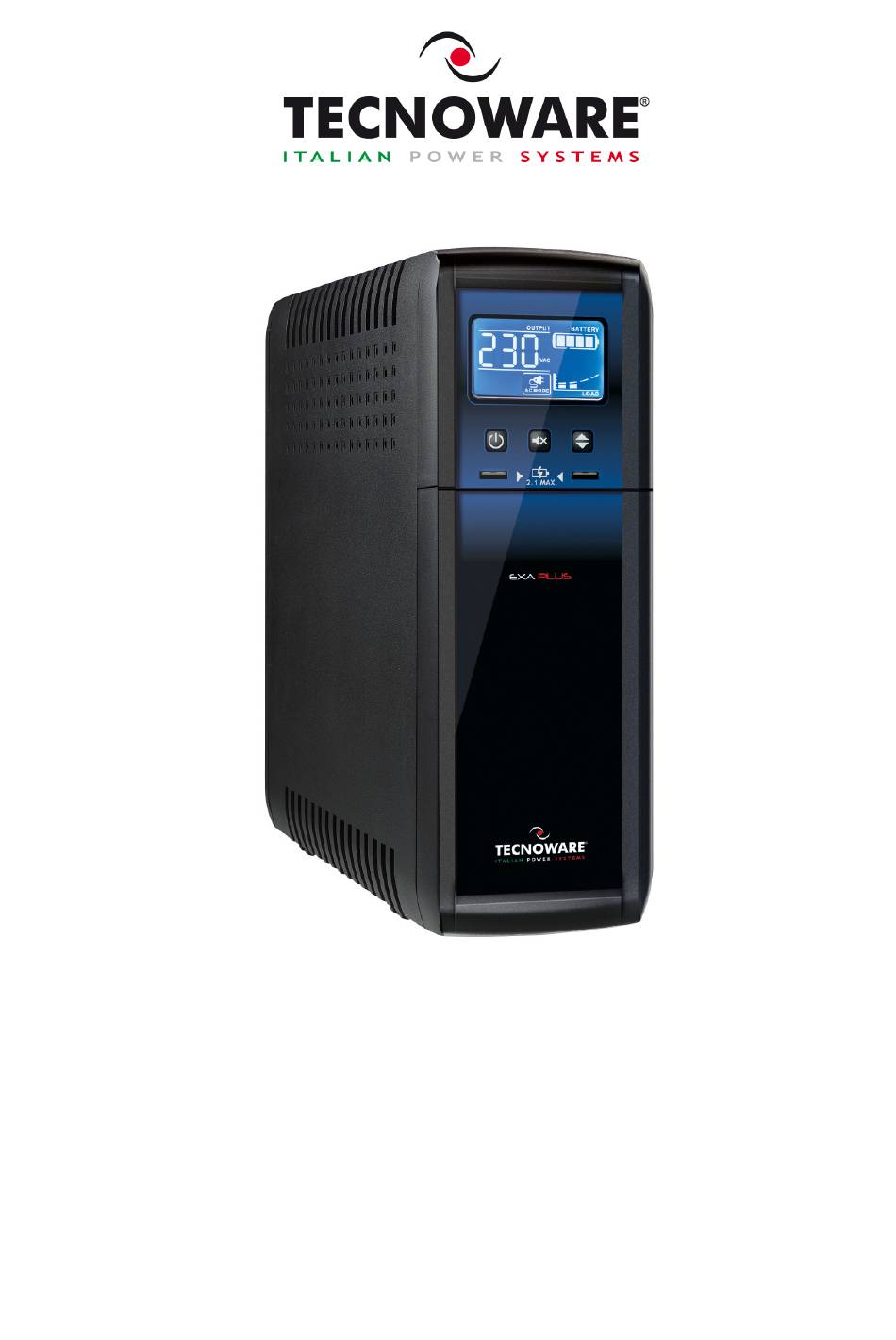

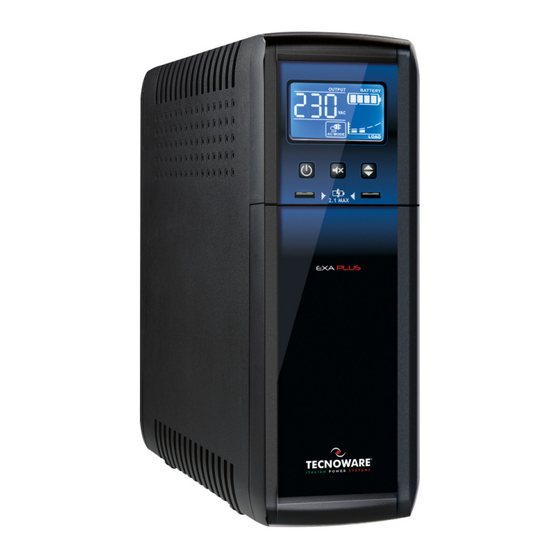

- Page 1 Uninterruptible Power Supply EXA PLUS 1.0 EXA PLUS 1.5 EXA PLUS 2.0...
- Page 2 User’s manual...
-
Page 3: Table Of Contents
Edition: August 2019 – version: 1.0 No part of this manual may be reproduced, even partially, without the authorisation of TECNOWARE s.r.l. TECNOWARE s.r.l. reserves the right to change specifications at any time and without notice. UPS EXA PLUS 1.0 – 1.5 – 2.0... -
Page 4: Safety Warnings
Safety Warnings Read this manual carefully and completely before installing and using the TECNOWARE EXA PLUS Uninterruptible Power Supply, which, from here after, will also be referred to as UPS. This manual should be kept close to the UPS and read before the UPS is installed and used. -
Page 5: Introduction
• EXA PLUS 1.0 (1.0 KVA) • EXA PLUS 1.5 (1.5 KVA) • EXA PLUS 2.0 (2.0 KVA) In this manual EXA PLUS will simply be referred to as UPS. UPS EXA PLUS 1.0 – 1.5 – 2.0 User’s manual... -
Page 6: General Characteristics
2 General Characteristics EXA PLUS has all the advanced features, which guarantee maximum reliability and safety: All functions are controlled by a microprocessor, giving full guarantee of high reliability. • Output Voltage regulation through AVR (Automatic Voltage Regulation). • Overload protection both in normal mode and in battery mode. •... - Page 7 Install the UPS on a properly tiled floor. Avoid the installation on a floor that is not tiled flat. • UPS EXA PLUS 1.0 – 1.5 – 2.0 User’s manual...
-
Page 8: External Description
4 EXTERNAL DESCRIPTION 4.1 Front Panel The front panel informs the user about operating status, alarm conditions and measurements. Front panel shown below consists of two parts: LCD display provides information about Input and Output Voltage, Battery Level percentage, Load Level percentage, functioning modes, alarm and fault conditions. - Page 9 Figure 1 – Front panel UPS EXA PLUS 1.0 – 1.5 – 2.0 User’s manual...
-
Page 10: Lcd Display
4.1.1 LCD Display Please refer to figure 2. Figure 2 –LCD Display DIGIT: the 3 digits indicate the Input or Output Voltage or Frequency value. BATTERY LEVEL: is a four-segment light bar. This bar indicates the battery charging percentage as explained below: 0~25%: only 1 segment is on. -
Page 11: Rear Side
In case of anomaly to the AC line (black-out), ONLY the UPS Output receptacles (black colour, #4) continue supplying the correct power to all connected equipment. Please connect all the non-critical devices to the UPS Output receptacles. UPS EXA PLUS 1.0 – 1.5 – 2.0 User’s manual... -
Page 12: Electrical Installation And First Start Up
There are no internal parts in the UPS that are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. -
Page 13: Functioning
After a complete discharge, the UPS needs 4 hours to recharge completely the batteries. The UPS recharges batteries automatically if it works in Normal mode or if it is off and connected to the AC Input Line. UPS EXA PLUS 1.0 – 1.5 – 2.0 User’s manual... -
Page 14: Load Control
The USB signals are all isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software TECNOMANAGER, compatible with the most popular Operative Systems. -
Page 15: Technical Characteristics
9,9 x 28 x 41 cm Net Weight 7,4 Kg 11,8 Kg 13,1 Kg Technical data may change without prior notice (*) Connect the printers to the ONLY FILTERED Output sockets UPS EXA PLUS 1.0 – 1.5 – 2.0 User’s manual... -
Page 16: Maintenance
Maintenance UPS Cleaning Before starting any cleaning operation, be sure that: 1. The AC Input Voltage for the UPS has been removed. 2. The UPS is OFF. Use only a cloth dampened with water to clean the unit. If UPS works in an environmental unusually dusty or dirty, remove the dirty from the ventilation holes. Before restarting the UPS be sure it is completely dry. -
Page 17: Operator Safety
Reassemble the battery cover and then the front panel. Battery replacement must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. When replacing batteries, replace with the same type and number. -
Page 18: Troubleshooting
TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Warning to the technical personnel authorized for service: since internal components are connected to the batteries, they will remain powered, and therefore dangerous, even after the UPS has been disconnected from AC power mains. -
Page 19: Conformity To The European Directives
Conformity to the European Directives TECNOWARE S.r.l. confirms that EXA PLUS models comply with the requirements set out in: the Low Voltage (Safety) Directive 2014/35/EU and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2014/30/EU and following amendments. WARNING - This is a category C2 UPS product. In a residential environmental, this product may cause radio interference, in which case the user may be required to take additional measures. - Page 22 TECNOWARE s.r.l. www.tecnoware.com...
