Summary of Contents for Tecnoware EVO DSP PLUS MM 1.2

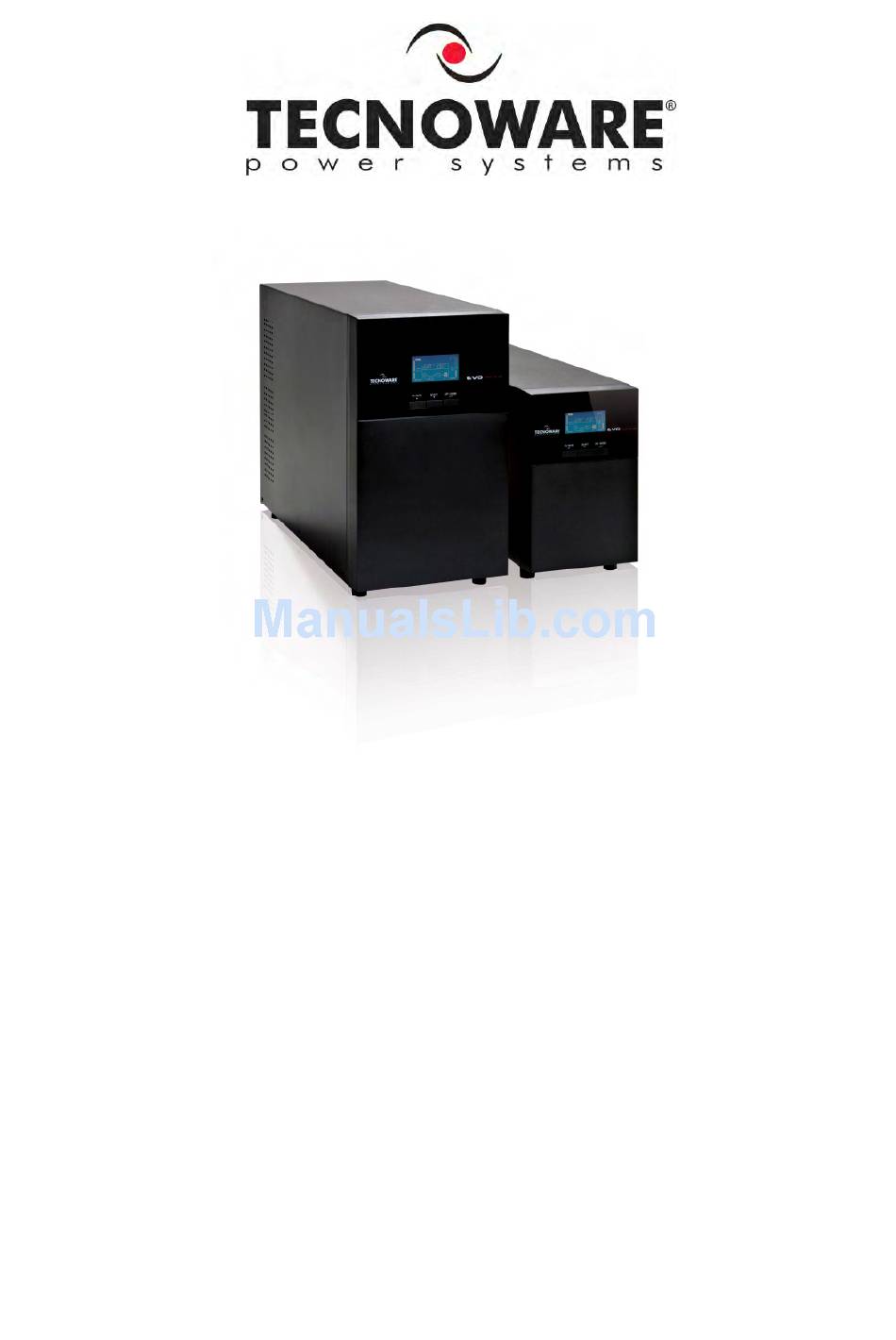

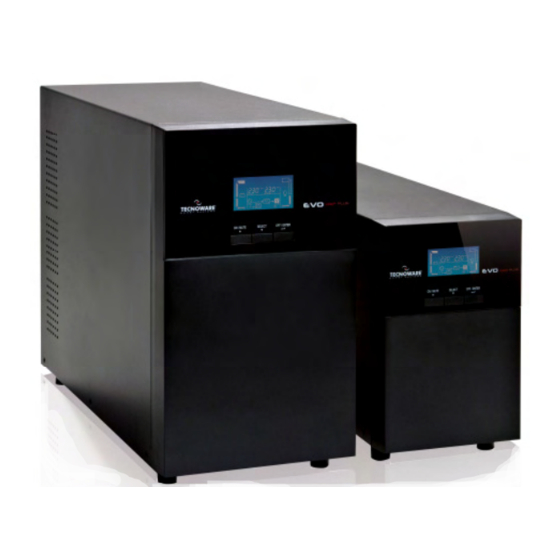

- Page 1 Uninterruptible Power Supply EVO DSP PLUS MM 1.2 EVO DSP PLUS MM 2.4 EVO DSP PLUS MM 3.6 User’s manual Manuale utente...
-
Page 2: Table Of Contents
Index User’s Manual - English ................ 1 Safety Warnings ................1 1 Introduction ................. 2 2 General Characteristics ..............3 3 Receipt and site selection ..............3 4 Operating Modes ................4 NORMAL Mode ................5 BATTERY Mode ................. 5 BYPASS Mode ................ -
Page 3: User's Manual - English
There are no internal parts in the UPS which are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by producer. TECNOWARE declines any responsibility if this warning is disregarded. The electric installation has to be done by qualified personnel. Follow all the Safety Standards (CEI Standards in Italy or IEEE elsewhere) for the Input/Output connections and for the right section of Input/Output cables. -
Page 4: Introduction
EVO DSP PLUS MM is constantly being developed and improved: consequently, your unit may differ somewhat from the description contained in this manual. This manual includes the following models: • EVO DSP PLUS MM 1.2 (1.2 KVA) • EVO DSP PLUS MM 2.4 (2.4 KVA) • EVO DSP PLUS MM 3.6 (3.6 KVA) In this manual EVO DSP PLUS MM will simply be referred to as UPS. -
Page 5: General Characteristics
ENGLISH 2 General Characteristics EVO DSP PLUS MM has all the advanced features which guarantee maximum reliability and safety: Double-Conversion ON-LINE Transformerless technology • Sinusoidal wave generated by an IGBT Inverter • Output Voltage regulation ±2% • Protection from overload and short circuits •... -
Page 6: Operating Modes
ENGLISH In all circumstances, see the “Technical Characteristics” chapter for environmental specifications and • check that the selected area meets these criteria. During normal operation the UPS discharges a minimal amount of heat. So it is necessary to leave at least •... -
Page 7: Normal Mode
ENGLISH 4.1 NORMAL Mode The UPS typically works in Normal mode: Input mains power is available and its amplitude is within specifications. Please refer to figure 1. After the filter has eliminated any high Frequency interference present on the mains, the AC Input line is rectified and conditioned in the Rectifier block (AC/DC conversion);... -
Page 8: Stand-By Mode
ENGLISH The Bypass mode is identified by: The graphic LCD panel shows the path of energy flow • during Bypass mode. An acoustic signal every 10 seconds. • During Bypass mode, loads are fed directly from AC Input line. Therefore no protection against AC Input line disturbances or interruptions is present. -
Page 9: Converter Frequency Mode
ENGLISH 4.6 CONVERTER FREQUENCY Mode It is possible to select the Converter Frequency mode to work with the Output Frequency different from the Input Frequency. For example it is possible to work with 60 Hz Input Frequency and 50 Hz Output Frequency or 50Hz Input Frequency and 60 Hz Output Frequency. -
Page 10: Graphic Lcd Panel
ENGLISH 5.1.1 Graphic LCD Panel Please refer to figure 3. Backup Time Output Input & Battery Fault Info Buzzer Info Info Voltage Info Voltage Info Battery Load Info Info Mode Operation Info Figure 3 – Graphic LCD Panel User’s manual UPS EVO DSP PLUS 1.2-2.4-3.6 MM... - Page 11 ENGLISH Graphic LCD Panel Function Backup time information Indicates how much time has passed in Battery mode. H: hours, M: minutes, S: seconds Fault information Indicates the warning that a fault has occurred. Indicates the Fault codes, and the codes are listed in the “Fault Table” of chapter Mute operation Indicates that the UPS alarm is disabled (muted).
-
Page 12: Buttons
ENGLISH Graphic LCD Panel Function Battery information Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the Battery is faulty or defective. Indicates Low Battery level and Low Battery Voltage. Input and Battery Voltage information Indicates the Input Voltage or Frequency or Battery Voltage. Vac: Input Voltage, Vdc: Battery Voltage, Hz: Input Frequency 5.1.2 Buttons Functions of the buttons are given below:... -
Page 13: Acoustic Alarm
: means that the buzzer can NOT be muted or stopped 5.2 Rear Side EVO DSP PLUS MM 3.6 KVA EVO DSP PLUS MM 1.2-2.4 KVA Figure 4 – Rear Side Computer Interface (USB connector): it is the communication USB port. -
Page 14: Electrical Installation
For the Input/Output connections use ONLY the included power cables or cables with the same power ratings. TECNOWARE declines any responsibility if this warning is disregarded. The EVO DSP PLUS MM models are made of a single unit design that contains the electronic parts and batteries. -
Page 15: Installation
ENGLISH If neutral line and ground line are short circuited, please add isolation transformer between UPS and devices. See the image below. LINE LINE LINE ISOLATION DEVICE TRANSFORMER NEUTRAL NEUTRAL NEUTRAL Never connect neutral line of input to neutral line of output. Otherwise, it will cause the damage of the UPS. -
Page 16: First Start Up
There are no internal parts in the UPS which are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. -
Page 17: Functioning
ENGLISH 8 Functioning 8.1 Turning ON and OFF Let’s see carefully the consequences of the pressure of ON/MUTE and OFF buttons. The UPS is in Stand-by mode (the Inverter is OFF); if the ON/MUTE button is pressed, after few seconds the Inverter starts and the UPS switches in Normal mode. -
Page 18: Load Testing
ENGLISH 8.3 Load Testing The UPS indicates the Output Load level by graphic LCD (on the right side as described in the chapter 5). When the Output load is higher then nominal value the UPS warns of Overload condition by graphic LCD and by acoustic alarm as described in the “Warning Table”... -
Page 19: Battery Test
ENGLISH 8.5 Battery Test It is possible to check the Battery Status when the UPS is running in Normal mode/ECO mode, by performing a Battery Test. To perform the Battery Test, press the ON/MUTE button continuously for at least 5 seconds. The Battery Test starts immediately and it finishes after some seconds. -
Page 20: Operation In Fault Mode
The USB signals are all isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software, compatible with the most popular Operative Systems. -
Page 21: Technical Characteristics
ENGLISH 10 Technical Characteristics UPS EVO DSP PLUS MM Model Power 1200 VA 2400 VA 3600 VA Nominal Active Power 840 W 1680 W 2520 W Power Factor Technology On-Line Double Conversion Transformerless Dimension (W x H x D) 15 x 22 x 40 cm 19 x 31,8 x 42 cm Net Weight 12 kg... - Page 22 ENGLISH ENVIRONMENTAL CONDITIONS Storage Temperature Range -25°C to +55°C (15°C to 40°C recommended for longer Battery life) Operating Temperature Range 0°C to +40°C (20°C to 25°C recommended for longer Battery life) Relative Humidity Range 0% - 95% (non condensing) Max. Altitude without Derating 3000 m Protection level IP 20...
-
Page 23: Maintenance
ENGLISH 11 Maintenance 11.1 UPS Cleaning Before starting any cleaning operation, be sure that: 1. The AC Input Voltage for the UPS has been removed. 2. The UPS is completely OFF (the graphic LCD panel is OFF). Use only a cloth dampened with water to clean the unit. If UPS works in an environmental unusually dusty or dirty, remove the dirty from the ventilation holes. -
Page 24: Troubleshooting
There are no internal parts in the UPS which are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. SYMPTOM POSSIBLE CAUSE... - Page 25 ENGLISH SYMPTOM POSSIBLE CAUSE ACTION TO SOLVE Fault code is shown as 28, the icon Battery Voltage is too Low or Contact Technical Service. lights on LCD display, and the Battery Charger is faulty. alarm beeps continuously. Remove excessive loads from UPS is overloaded.
-
Page 26: Conformity To The European Directives
ENGLISH Conformity to the European Directives TECNOWARE confirms that EVO DSP PLUS MM models comply with the requirements set out in: the Low Voltage Directive (Safety) 2006/95/EC and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2004/108/EC and following amendments. The following standards were applied:...
