Simoniz 039-8701-4 Use And Care Manual

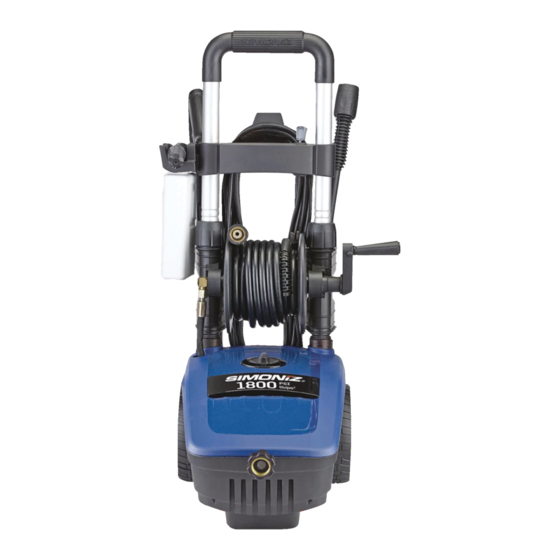

1800 psi electric pressure washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

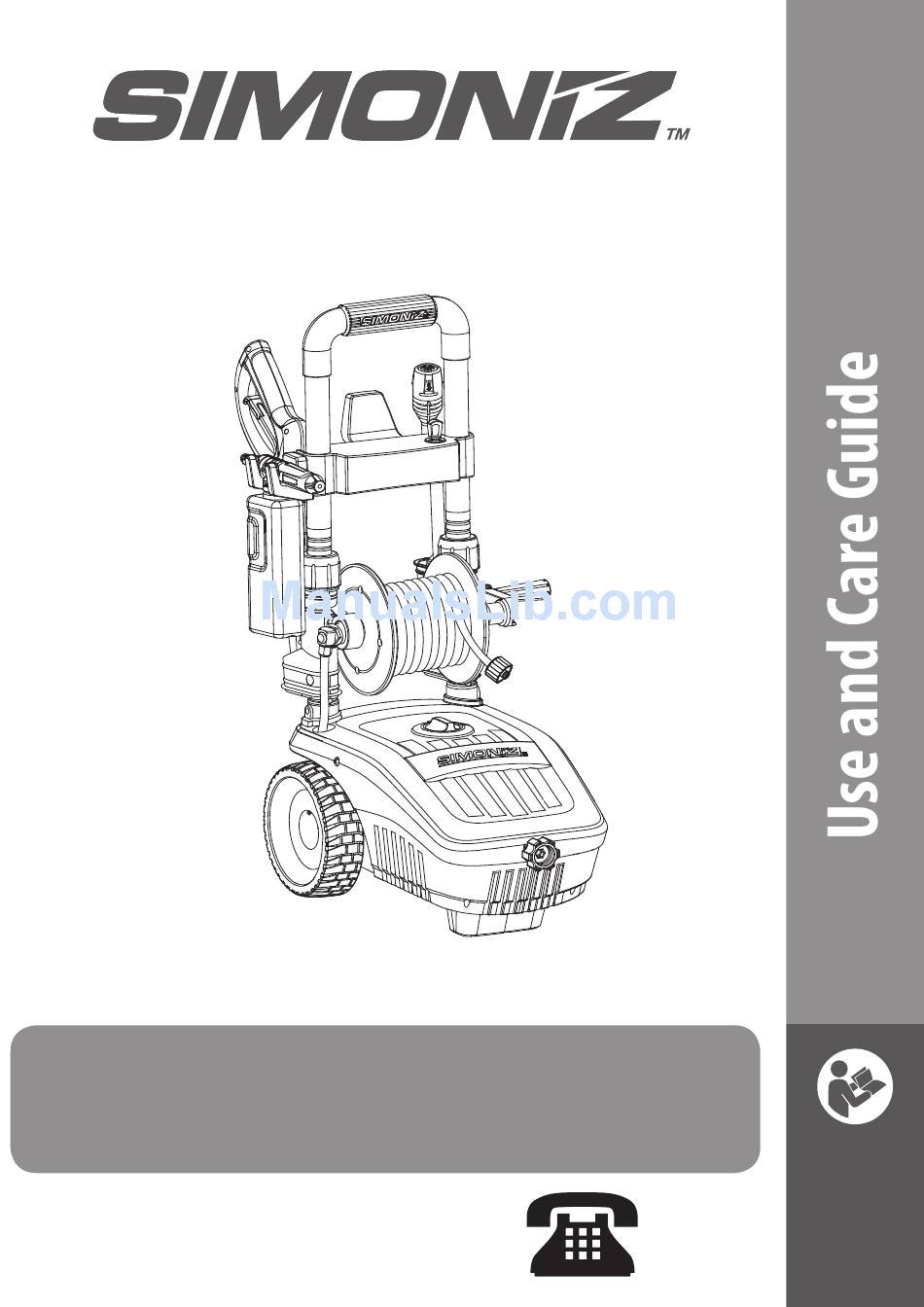

1800 PSI Electric Pressure Washer
039-8701-4
Congratulations on the purchase of your new pressure washer. In order
to ensure you have the best possible experience please read through the
following instructions. If you require any help, please contact the customer
service department at:
Model no. VE12
1-866-4SIMONIZ
(1-866-474-6664)
Version no. 02
Contact us for assistance; we're here to help.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 039-8701-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Simoniz 039-8701-4

Summary of Contents for Simoniz 039-8701-4

  • Page 1 1800 PSI Electric Pressure Washer 039-8701-4 Congratulations on the purchase of your new pressure washer. In order to ensure you have the best possible experience please read through the following instructions. If you require any help, please contact the customer service department at: Model no.

  • Page 2: Table Of Contents

    Table of Contents 1. I ..........................3 mportant recautIons 1.1 D ................................3 efInItIons 1.2 s ..............................3 afety arnIngs 1.3 I ..............................5 ntenDeD pplIcatIon 2. s ....................5 afety eatures anD lectrIcal nformatIon 2.1 e ..............................5 xtensIon orDs 3. e ............................6 xploDeD 4. p ..............................6 arts 5.

  • Page 3: I Mportant P Recautions

    Important Precautions 1. I mportant recautIons 1.2 Safety Warnings IMPORTANT, RETAIN FOR FUTURE REFERENCE AND READ CAREFULLY! DANGER Do not attempt to install or operate this device until you have read To reduce the risk of fire, electric shock, explosion or injury to the safety instructions in this manual.
  • Page 4 Important Precautions 1. I mportant recautIons cont 1.2 Safety Warnings (cont.) CAUTION — USE WARNING — INJECTION HAZARD • Learn how to stop the device and release the pressure quickly. Familiarize yourself with the controls. • Equipment can cause serious injury if the spray penetrates •...

  • Page 5: Intended Application

    Please refer to the icons below for suggested applications. For questions regarding other uses, please refer to WARNING our website at www.simoniz.ca or call us at 1-866-4SIMONIZ (1-866-474-6664). • Extension cords are not recommended unless they are plugged into a ground fault circuit-interrupter (GFCI) found in circuit boxes or protected receptacles.

  • Page 6: E Xploded V Iew

    Exploded View / Parts List 3. e xploded 4. p arts Item # Part Name Qty. Part # Item # Part Name Qty. Part # Up-handle Cleaning VE10-030-0000 VE10-060-0001 assembly needle Bottle holder Hand crank VE10-000-0002 VE01-002-0035 Foam blaster High-pressure XE20-060-0000 VE12-000-0003 hose...

  • Page 7: A Ssembly I Nstructions

    Assembly Instructions 5. a ssembly nstructIons 5.1 Surface Preparation 5.4 Assembly Steps Before beginning any cleaning task, it is important to inspect the area for objects that could create a hazard. Remove any objects from the work area that could be tripped over, such as toys or outdoor furniture.
  • Page 8 Assembly Instructions 5. a (cont.) ssembly nstructIons 5.4 Assembly Steps (cont.) Attach high pressure hose from hose reel to the gun (hand tighten only) 0º 15º 40º The spray nozzles on 3-in-1 wand are selected with the desired spray pattern for the following purposes: •...
  • Page 9 Assembly Instructions 5. a (cont.) ssembly nstructIons 5.4 Assembly Steps (cont.) OFF (0) Make sure the main switch is in OFF position. Connect garden hose to the inlet adaptor (hand tighten only). Attach garden hose to water supply and turn water on. Plug the unit into an outlet.
  • Page 10 Assembly Instructions 5. a (cont.) ssembly nstructIons PURGING Ö 5.4 Assembly Steps (cont.) Release the safety trigger if it is locked. Purge air by squeezing the trigger on the gun until there is a steady stream of water. CAUTION Drain unit after each use (for storage): remove water connection, turn ON the machine for a few seconds and press gun trigger to bleed remaining water in the pump.
  • Page 11 Assembly Instructions 5. a (cont.) ssembly nstructIons 5.4 Assembly Steps (cont.) Ä ON (1) Turn the main switch to ON position and the pressure washer is ready to operate.

  • Page 12: Operating Instructions

    Operating Instructions 6. o peratIng nstructIons 6.1 Working with the Foam Blaster Working with a detergent ensures quick soaking of the dirt, and allows the high-pressure water to penetrate and remove the dirt more effectively. Always spray detergent on a dry surface, do not pre-soak the area.

  • Page 13: Hutting Own And Leaning

    Operating Instructions 6. o (cont.) peratIng nstructIons 6.2 Shutting Down and Cleaning Up 6.4 Warnings Turn off water supply and disconnect the garden hose CAUTION from the water inlet on the pressure washer. Failure to clean this product properly will cause the detergent Pull the trigger to release any remaining water pressure.

  • Page 14: Interizing And Ong Erm Torage

    Winterizing and Long-Term Storage 7. w InterIzIng and torage 7.1 Optimum Winterizing Procedure CAUTION Winterizing your pressure washer will help protect and prolong Drain any remaining water from the gun assembly. Aim the its life. We strongly recommend you follow the below steps using gun downwards and pull the trigger.

  • Page 15: C Leaning And M Aintenance

    Cleaning and Maintenance / Technical Specifications 8. c leanIng and aIntenance 8.1 Connections 8.3 Water Filter Screen The connections on the pressure washer’s hoses, gun, and spray wand should be cleaned and lubricated with non-water soluble grease regularly. 8.2 Cleaning the Nozzles The pressure washer is equipped with a water inlet screen to protect the pump.

  • Page 16: Troubleshooting

    Troubleshooting 10. t roubleshootIng Problem Cause Solution Output pressure Not enough inlet Turn faucet on fully. Disconnect the device from the power source before making any fluctuates high water supply. Check garden hose repairs. and low. for kinks, leaks or blockage.
  • Page 17 Supply voltage Verify that only the fails to run. below minimum. pressure washer is running on this circuit. IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT WWW.SIMONIZ.CA OR CALL CUSTOMER SERVICE FOR HELP AT 1-866-4SIMONIZ (1-866-474-6664).

  • Page 18: Imited W Arranty

    The warranty is void if the equipment is used for commercial, rental or industrial purposes. If you have further questions, please visit our website (www.simoniz.ca) or call 1-866-4SIMONIZ (1-866-474-6664). Imported by Trileaf Distribution Trifeuil, Toronto, Canada M4S 2B8...
