- Page 1 PU-607BDWP-RX HDMI over Single CAT5e/6/7 HDBaseT™ - Bi-Directional PoC Wallplate Receiver (full 5Play™ & Single LAN up to 100m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Receiver ............8 6.2 Rear Panel ............. 9 6.3 IR Cable Pin Assignment ......10 6.4. D-Sub 9-Pin Definitions ......10 7. -
Page 6: Introduction
1. INTRODUCTION The PU-607BDWP-RX Wallplate Receiver allows uncompressed HDMI signals and IP data to be received via a Single CAT5e/6/7 cable. This solution has the added features of RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at 4K. -
Page 7: Features
5. FEATURES HDMI 1.x and DVI 1.0 compliant HDCP compliant Supports HDMI 3D and 4K x 2K features Supports HDCP repeater and CEC bypass Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz ( YUV 4:4:4, 8-bit) Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI... -
Page 8: Operation Controls And Functions

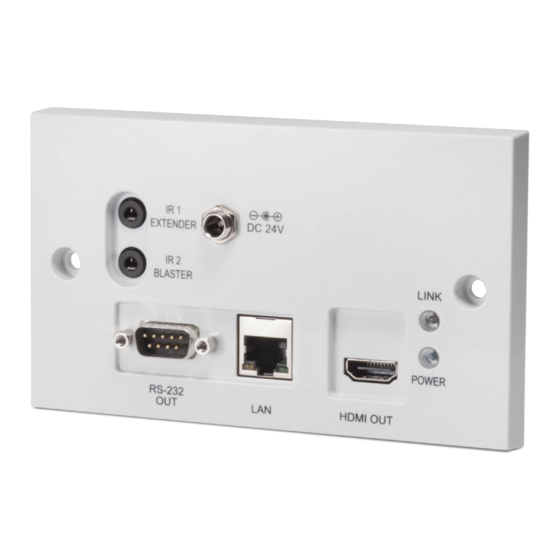

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Receiver IR 1 DC 24V EXTENDER IR 2 BLASTER LINK POWER RS-232 HDMI OUT IR 1 EXTENDER: Connect to the supplied IR Extender cables for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR Extender. -
Page 9: Rear Panel
HDMI OUT: This slot is to connect with HDMI TV/monitor for display HDMI input source signal. Power LED: This LED will illuminate when the device is connected to a power supply. LINK LED: This LED will illuminate when both the input source and output display signals are connected through CAT cable. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Ground 6.4. D-Sub 9-Pin Definitions Define TX/RX TxD/RxD RxD/TxD... -
Page 11: Connection Diagrams
7. CONNECTION DIAGRAMS Option 1 RS-232 Equipped PC or Internet Modem or Notebook Router 1.5m CAT5e/6/7 60° Power RS-232 Supply IR Blaster DVD or Blu-ray Player IR 2 EXTENDER DC 24V IR 1 BLASTER LINK 60° POWER RS-232 HDMI IN IR Extender IR Extender Power... - Page 12 Option 2 CAT5e(100M)/ CAT6(100M) IR 1 IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT DC 24V EXTENDER CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN...
-
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340MHz/10.2Gbps Input Ports 1×CAT5e/6/7, 1×IR Extender, 1xLAN Output Ports 1×HDMI, 1×RS-232, 1×IR Blaster IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate up to 115200/sec Power Supply 24V DC / 1.25A (Optional) (US/EU standards, CE/FCC/ UL certified) ESD Protection Human-body Model:... -
Page 14: Cable Specifications
8.1 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:2:0) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
