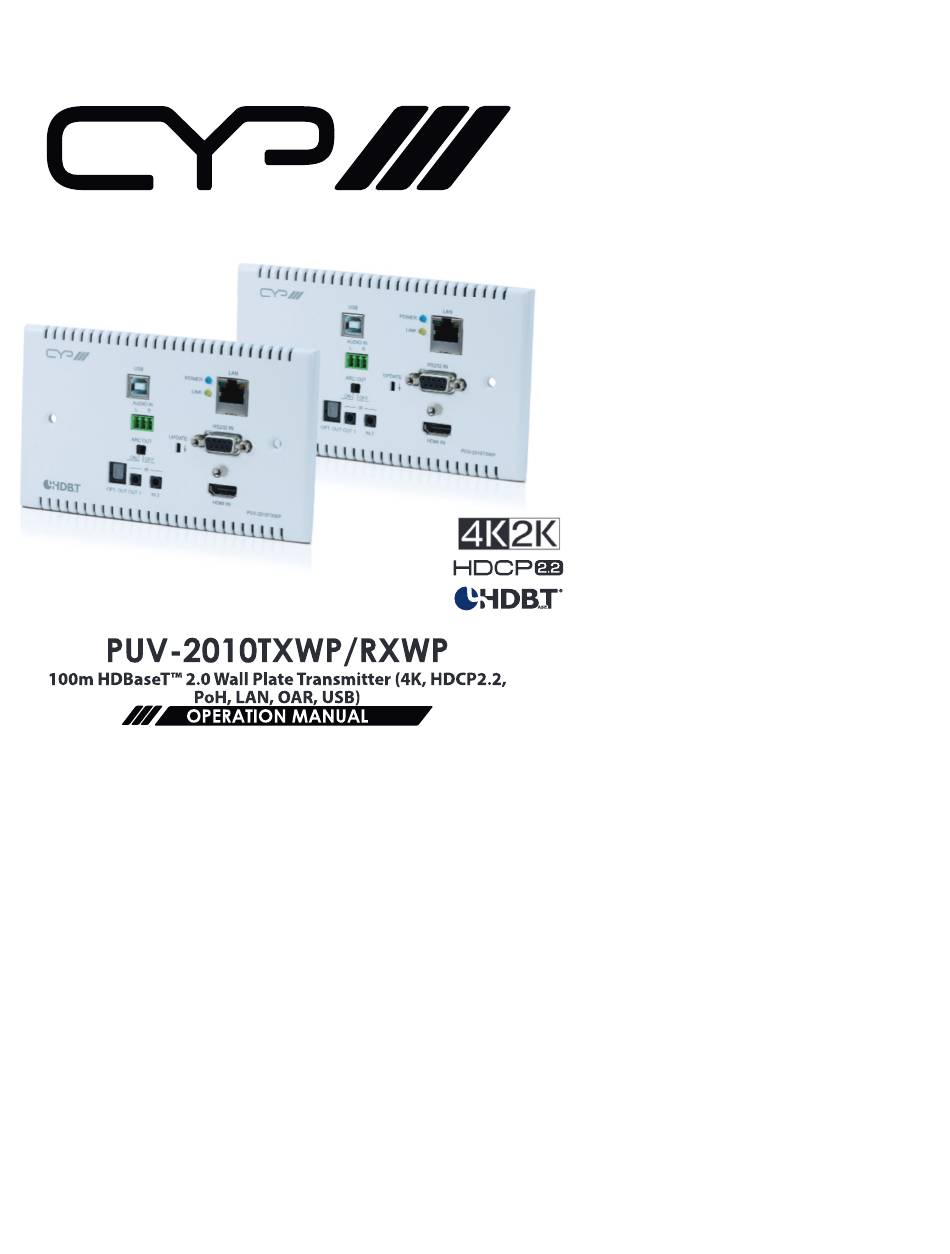

CYP PUV-2010TXWP Operation Manual

100m hdbaset 2.0 wall plate transmitter

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUV-2010TXWP and is the answer not in the manual?

Questions and answers

Summary of Contents for CYP PUV-2010TXWP

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons.
  • Page 5 CONTENTS UPDATE CONTENTS...
  • Page 6: Package Contents

    1. INTRODUCTION The PUV-2010TX Wall Plate Transmitter enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN, and USB data signals up to 100m. Utilising the latest HDBaseT™ 2.0 technology, this solution provides advanced signal management and dedicated audio pathways to ensure reliable results in the most demanding of installation environments.
  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS Input source equipment such as DVD/Blu-ray player, host PC/Laptop and HDMI equipped output display (TV or monitor) with ampli er or active speakers. 5. FEATURES Supports full HDBaseT™ 2.0 speci cation signals can be received up to a maximum distance of 100m over CAT6a/7 HDCP 2.2, HDMI and DVI compatible HDBaseT 5-Play™...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmit ter Front Panel POWER LINK AUDIO IN RS232 IN UPDATE ARC OUT OPT. OUT OUT 1 IN 2 HDMI IN 100M USB: Connect from PC or Laptop for data transmit to or control from the Receiver’s USB slots.
  • Page 9 IR OUT 1: Connect to the supplied IR Blaster Cable for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. IR IN 2: Connect to the supplied IR Extender cable for IR signal reception.
  • Page 10: Transmit Ter Rear Panel

    6.2 Transmit ter Rear Panel CAT5e/6/7 OUT CAT5e/6/7 OUT: Connect to the Receiver unit with CAT5e/6/7 cable for transmission of all data signals. DC 48V: Plug the 48V DC power supply into the unit and connect the adaptor to an AC outlet.
  • Page 11: Receiver Front Panel

    6.3 Receiver Front Panel POWER LINK AUDIO OUT RS232 OUT UPDATE OPT. OPT. IN OUT 2 IN 1 HDMI OUT 100M USB & LED: Connect to USB peripheral devices such as printer, keyboard, ash driver or …etc. for data receiving or sending back to Transmitter and the LED will be illuminated.
  • Page 12 IR IN 1: Connect to the supplied IR Extender cable for IR signal reception. Ensure that remote being used is within the direct lineof- sight of the IR Extender. POWER LED: This LED will illuminate when the device is connected from Transmitter with PoH power supply.
  • Page 13: Receiver Rear Panel

    6.4 Receiver Rear Panel CAT5e/6/7 IN CAT5e/6/7 IN: Connect to the Transmitter unit with CAT5e/6/7 cable for transmission of all data signals.
  • Page 14 6.5 IR Cable Pin Assignments IR Blaster Power IR Signal IR Extender IR Signal Power Ground 6.6 D-Sub 9-Pin Assignment De ne TX / RX TxD/RxD RxD/TxD...
  • Page 15: Connection Diagram

    7. CONNECTION DIAGRAM RS-232 Equipped PC/Notebook RS-232 Internet Connected Router LA N U SB P OWER L INK AUD IO IN RS 23 2 IN U PDATE A RC OUT Analog Stereo Input OP T. OU T OUT 1 IN 2 H D MI IN 1 0 0 M DVD/Blu-ray Player...
  • Page 16: Specifications

    8. SPECIFICATIONS 8.1 Technical Speci cation Video Bandwidth 340 MHz/10.2 Gbps Transmitter Input Ports 1×HDMI, 1×USB, 1×L/R (Terminal Block), 1×LAN,1×IR Extender, 1×RS-232 Out put Port s 1×CAT5e/6/7, 1×Optical, 1×IR Blaster Receiver Input Ports 1×CAT5e/6/7, 1×Optical, 1×IR Extender Out put Port s 1×HDMI, 2×USB, 1×L/R (Terminal Block), 1×LAN, 1×IR Blaster,1×RS-232 IR Frequency...
  • Page 17 8.2 CAT5e/6/7 Cable Speci cation Cable Type Range Pixel Clock Video Data Support ed Video Rate Rate Formats CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p@ 60 Hz, 36- (HD Video) bit, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock).
  • Page 18: Supported Resolutions

    8.4 Supported Resolutions Resolution Input Output 640×480@ 60 720×480@ 60 720×576p@ 50 800×600@ 60 1024×768@ 60 1280×720@ 50 1280×720p@ 50 1280×720p@ 60 1280×1024@ 60 1360×768@ 60 1600×1200@ 60 1920×1080i@ 50 1920×1080i@ 60 1920×1080p@ 24 1920×1080p@ 25 1920×1080p@ 30 1920×1080p@ 50 1920×1080p@ 60 1920×1200@ 60 (RB) 3840×2160@ 24...
  • Page 19 9. ACRONYMS ACRONYM COMPLETE TERM Audio Return Channel Optical...
  • Page 20 CYP (UK) Ltd ., Unit 7, She p p e rto n Busine ss Pa rk, G o ve tt Avenue, Shep p e rto n, Mid d le sex, TW17 8BA Te l: +44 (0) 20 3137 9180 | Fa x: +44 (0) 20 3137 6279 Em a il: sa le s@c yp e uro p e.c o m...
