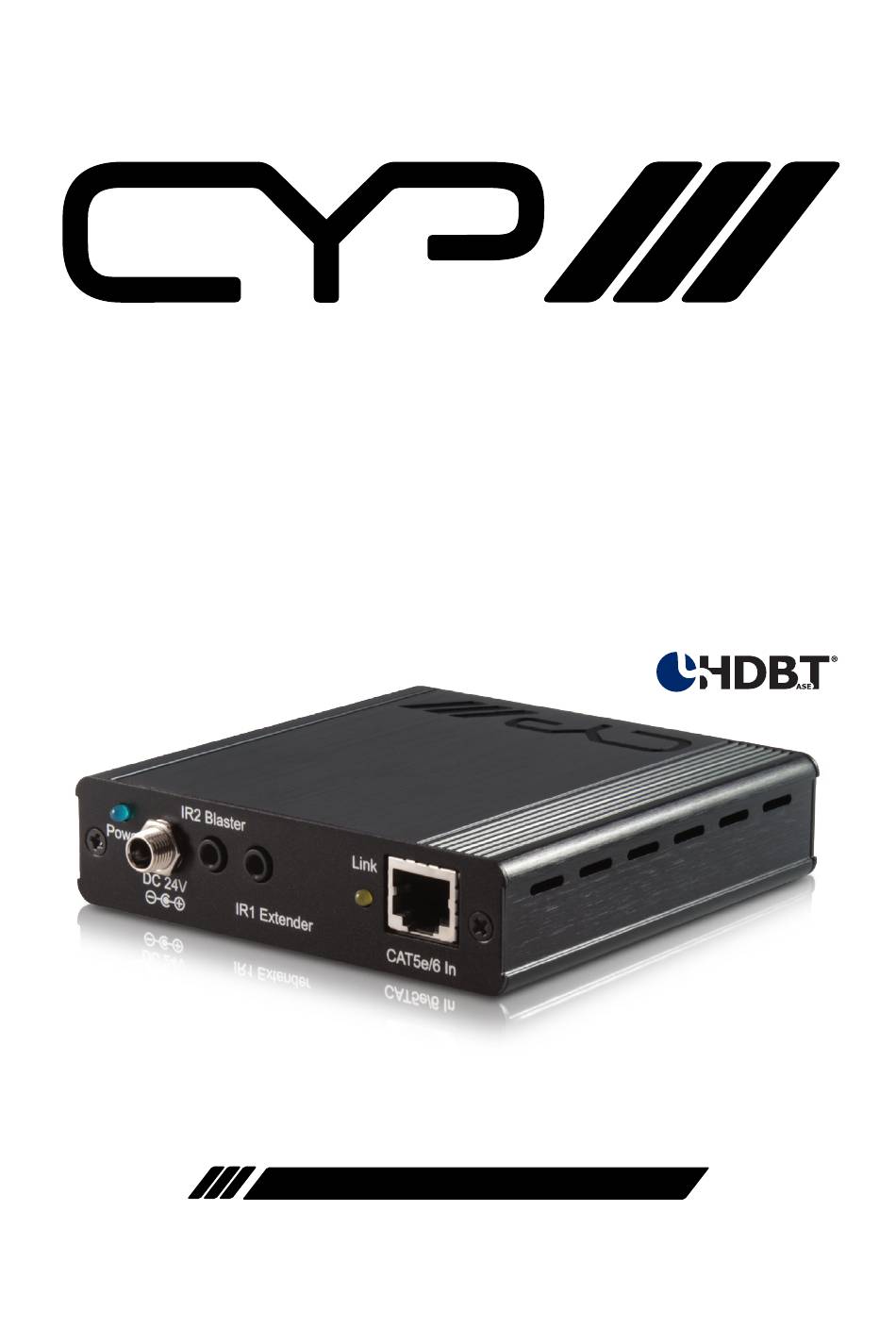

- Page 1 PU-607BD-RX HDMI over Single CAT5e/6/7 HDBaseT™ - Bi-Directional PoE Receiver (Full 5Play™ & Single LAN up to 100m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Receiver Front and Rear Panels .... 8 6.2 IR Cable Pin Assignment ......9 6.3 D-Sub 9 Pin Definitions ......9 7. -
Page 6: Introduction
1. INTRODUCTION The PU-607BD-RX Receiver allows uncompressed HDMI signals and IP data to be received via a Single CAT5e/6/7 cable. This solution has the added features of RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres. -
Page 7: Features
5. FEATURES Supports all v1.4 HDMI resolutions including 4K. Supports uncompressed video/audio up to 10.2Gbps Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA. HDMI, HDCP, & DVI compliant Supports HDCP repeating and CEC functions Uncompressed data transfer over single CAT cable (100m - CAT6/7;... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Receiver Front and Rear Panels Front Rear Receiver IR2 Blaster RS-232 Out HDMI Out Power DC 24V IR1 Extender HDMI Out: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. LAN: Connect to a PC or Laptop to the Internet or network connection. -
Page 9: Ir Cable Pin Assignment
6.2 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Signal IR Receiver Power 5 V Grounding 6.3 D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player Internet Modem or Router 1.5m HDMI CAT5e/6 60° RS-232 IR Blaster Power Supply RS-232 In Transmitter HDMI In IR1 Blaster 60° Power DC 24V IR2 Extender RS-232 Equipped IR Extender PC or Notebook IR Extender 60°... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300MHz / 9Gbps Ethernet Speed 100 Mbps Receiver Input 1×CAT5e/6, 1×IR Extender Output 1×HDMI, 1×RS-232, 1× IR Blaster, 1× LAN HDMI In/Out Cable Up to 10 Meters Distance CAT6 In/Out Cable Up to 100 Meters Distance HDMI In/Out Supports 480i~1080p@50/60, 1080p@24, VGA~WUXGA... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
