I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation

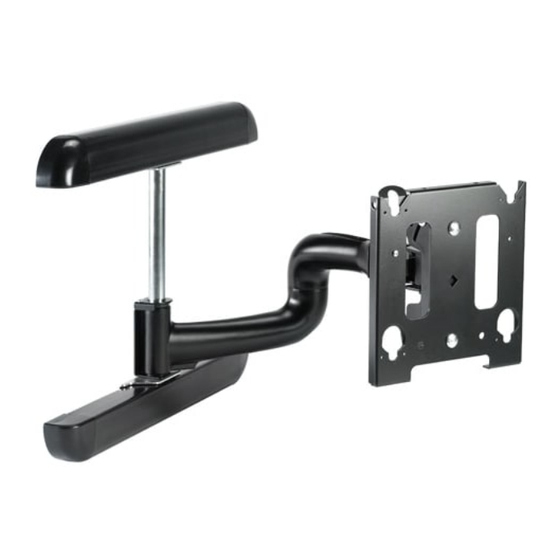

Medium Flat Panel Wall Mount
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
MWH
Advertisement
Table of Contents
Related Manuals for CHIEF MWH
Summary of Contents for CHIEF MWH

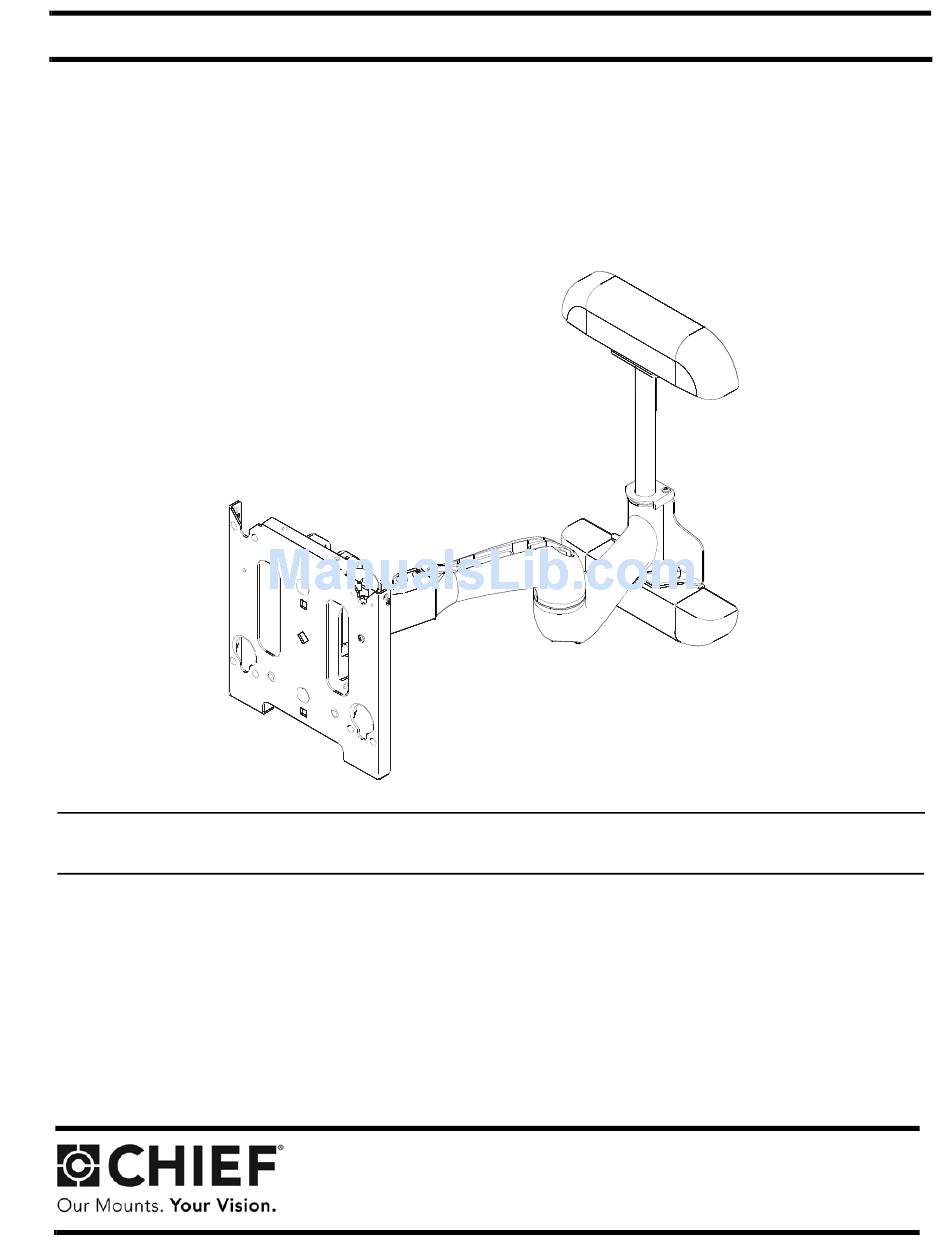

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Medium Flat Panel Wall Mount Spanish Product Description German Product Description Portuguese Product Description...
-
Page 2: Installation Instructions
A WARNING alerts you to the possibility of WARNING: 100 lbs (45.36 kg). serious injury or death if you do not follow the instructions. Chief® and ClickConnect™ are trademarks of Milestone AV A CAUTION alerts you to the possibility of CAUTION: Technologies. All rights reserved. - Page 3 Installation Instructions TOOLS REQUIRED FOR INSTALLATION AND PARTS 7/32" (Ø 6mm) A (1) B (2) F (4) C (1) E (4) D (1) G (4) 5/16 x 2-1/2" H (4) 5/16"...
-
Page 4: Mounting Pattern
Installation Instructions DIMENSIONS PRODUCT FEATURES NOTE: CUSTOM INTERFACE BRACKET Mounting Pattern WEIGHT CAPACITY 100 LBS NOT SHOWN. THE CUSTOM INTERFACE BRACKET NEEDED FOR YOUR DISPLAY HEIGHT ADJUSTMENT WILL ADD BETWEEN 1/2" AND 2" IN DEPTH ,-15 / 2.5 / 0 AND MAY AFFECT LOCATION OF DISPLAY ON THE MOUNT. -
Page 5: Mount Installation
7/32" (Ø 6mm) x2 INJURY OR DAMAGE TO EQUIPMENT! It is the installer’s responsibility to make sure the structure to which the MWH is being installed is capable of supporting five times the combined weight of the mount and all attachments. -
Page 6: Cover Installation
Installation Instructions Cover Installation To install channel covers: Install upper and lower wall channel covers (B) by tipping cover top down and positioning as shown in end view of figure below. (See Figure 4) Tap firmly across bottom of channels to lock in place as shown in figure below. -
Page 7: Display Installation
Consult a Chief Customer Service representative if an interface bracket is required by calling 1-800-582-6480 or visit www.chiefmfg.com. IMPROPER INSTALLATION CAN LEAD TO... - Page 8 Installation Instructions (A) x 4 (E) x 4 From Display Figure 7 ADJUSTMENTS Pitch Tension Adjustment To adjust display pitch tension: With display installed, tighten or loosen two screws, one on each side, using the 5/32” hex wrench. (See Figure 8) Check for desired tension.
-
Page 9: Roll Adjustment
Installation Instructions Roll Adjustment The MWH allows for the horizontal alignment (Roll)of the (D) x 1 display to be adjusted up to 2 deg. right or left to level the display after installing. (C) x 1 To adjust Roll: Loosen the roll tensions adjustment nut located on the back side of the faceplate assembly. - Page 10 Installation Instructions...
- Page 11 Installation Instructions...
- Page 12 P 800.582.6480 / 952.894.6280 F 877.894.6918 / 952.894.6918 A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands Europe Chief Manufacturing, a division of P +31 (0)40 2668620 Milestone AV Technologies F +31 (0)40 2668615 A Room 24F, Block D, Lily YinDu International Building Asia Pacific LuoGang, BuJi Town, Shenzhen, CHINA.
