I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Medium Flat Panel Wall Mount
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
MWR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF MWR
Summary of Contents for CHIEF MWR

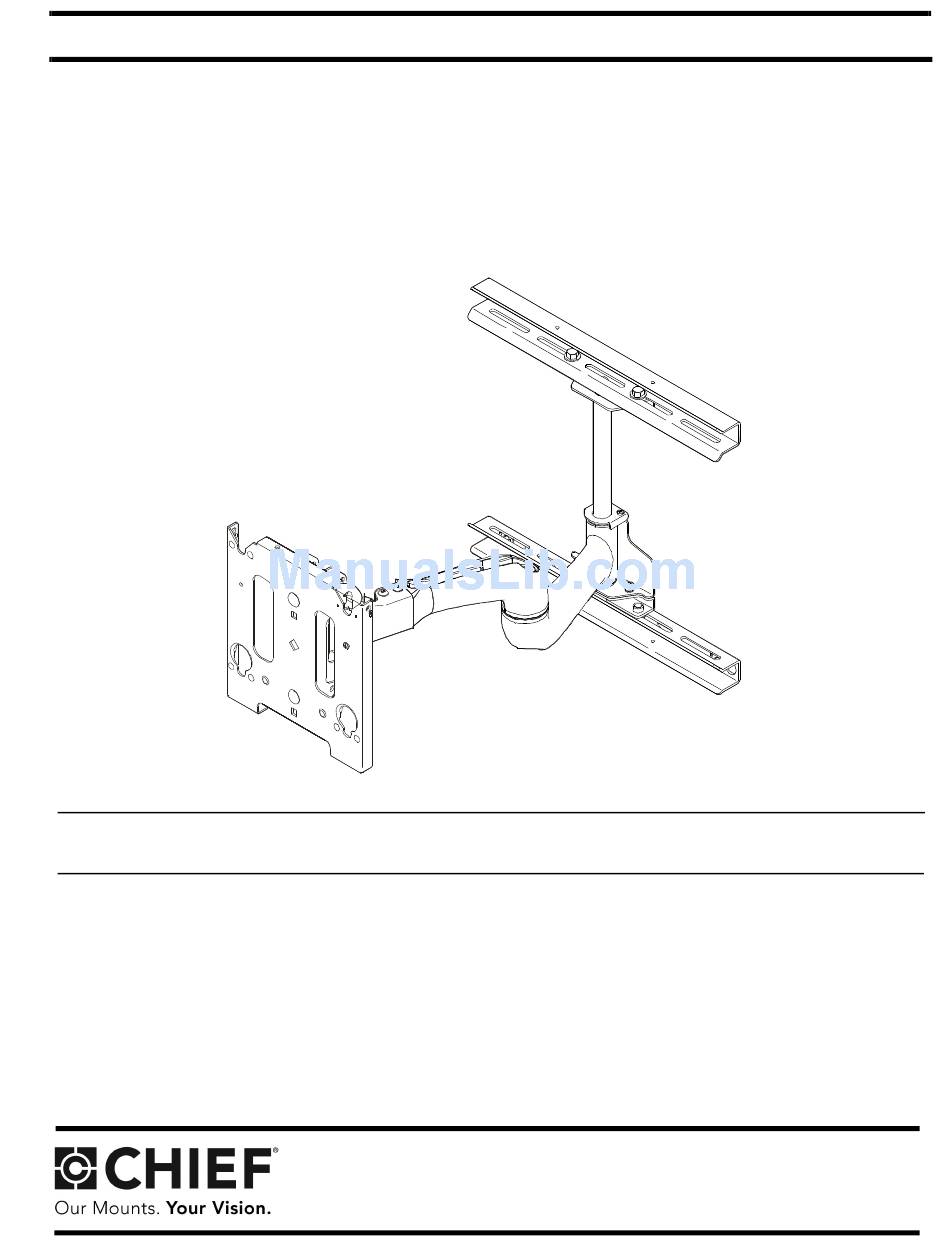

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Medium Flat Panel Wall Mount Spanish Product Description German Product Description Portuguese Product Description...
-
Page 2: Installation Instructions
WARNING: Failure to provide adequate structural strength Chief® is a registered trademark of Milestone AV Technologies. for the installation of this kit can result in serious personal All rights reserved. injury or damage to equipment! It is the installer’s... - Page 3 Installation Instructions TOOLS REQUIRED FOR INSTALLATION AND PARTS 7/32" (Ø 6mm) A (1) B (2) F (4) C (1) E (4) D (1) G (4) 5/16 x 2-1/2" H (4) 5/16"...
-
Page 4: Mounting Pattern
Installation Instructions DIMENSIONS NOTE: CUSTOM INTERFACE BRACKET PRODUCT FEATURES NOT SHOWN. THE CUSTOM INTERFACE WEIGHT CAPACITY 125 Lbs Mounting Pattern BRACKET NEEDED FOR YOUR DISPLAY HEIGHT ADJUSTMENT WILL ADD BETWEEN 1/2" AND 2" IN DEPTH AND MAY AFFECT LOCATION OF DISPLAY ,-15 / 2.5 / 0 ON THE MOUNT. -
Page 5: Mount Installation
7/32" (Ø 6mm) x4 INJURY OR DAMAGE TO EQUIPMENT! It is the installer’s responsibility to make sure the structure to which the MWR is being installed is capable of supporting five times the combined weight of the mount and all attachments. - Page 6 Installation Instructions Mount Lateral Position Adjustment The MWR is designed to allow up to 5" of right or left lateral adjustment after being mounted to the wall. This lateral adjustment can be used to more precisely position where the center of the display is located when installation is complete.
-
Page 7: Cover Installation
Installation Instructions Cover Installation To install channel covers: Install upper and lower wall channel covers (B) by tipping cover top down and positioning as shown in end view of figure below. (See Figure 5) Tap firmly across bottom of channels (B) to lock in place as shown in figure below. -
Page 8: Display Installation
If the display has any other mounting pattern an interface bracket must be obtained before proceeding. Consult a Chief Customer Service Remove pin representative if an interface bracket is required by calling and nuts and 1-800-582-6480 or visit www.chiefmfg.com. - Page 9 Installation Instructions (A) x 4 (E) x 4 From Display Figure 8 ADJUSTMENTS Pitch Tension Adjustment To adjust display pitch tension: With display installed, tighten or loosen two screws, one on each side, using the 5/32” hex wrench. (See Figure 9) Check for desired tension.
-
Page 10: Roll Adjustment
Installation Instructions Roll Adjustment The MWR allows for the horizontal alignment (Roll)of the (D) x 1 display to be adjusted up to 2 deg. right or left to level the display after installing. (C) x 1 To adjust Roll: Loosen the roll tension adjustment nut located on the back side of the faceplate assembly. - Page 11 Installation Instructions...
- Page 12 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 40 2668620 Chief Manufacturing, a division of F +31 (0) 40 2668615 Milestone AV Technologies Asia Pacific A Room 30I, Block D, Lily YinDu International Building LuoGang, BuJi Town, Shenzhen, CHINA.
