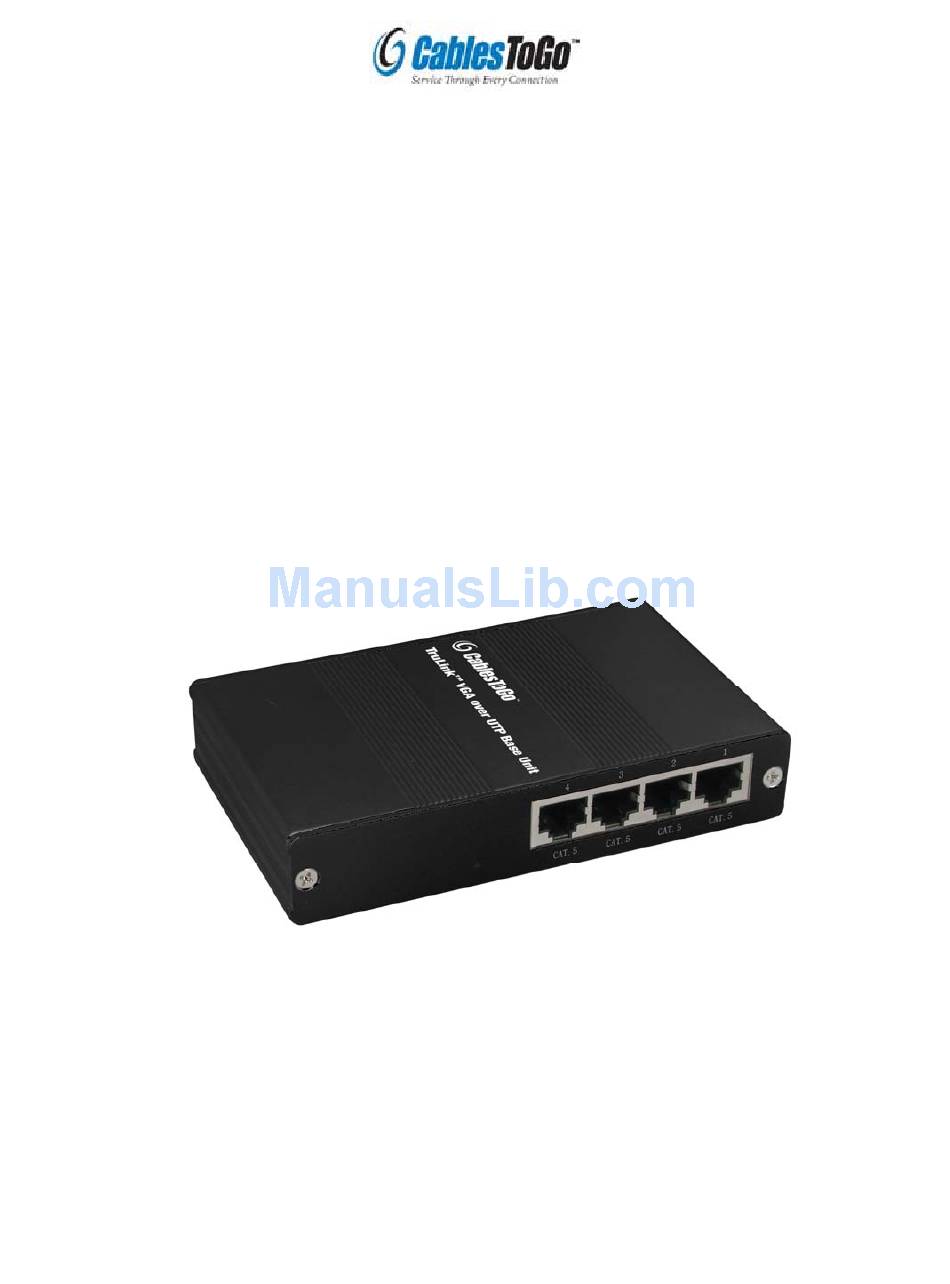

- Page 1 TruLink™ 4 Port VGA over UTP Extender- Base Unit USER MANUAL Model #39960...
-
Page 2: Package Contents
The TruLink VGA over UTP solution is ideal for applications when you need to place your computer in remote location. This is common in digital signage applications typical in retail stores, houses of worship, classrooms, and board rooms where you need video presentation in one room but want the computer to be out of sight and in a safe and secure environment. -
Page 3: Application Diagram
Installation 1. Turn off the PC and monitor(s). 2. Connect the HD-15 female input connector on the VGA over UTP Extender Base Unit with the HD-15 male to male cable to the PC. 3. At each remote location, connect the HD-15 female output connector on the VGA over UTP Extender Remote Unit (sold separately) with HD-15 male cable from your monitor(s). -
Page 4: Specifications
Specifications Function 39960 VGA In Connector HD-15 Female x 1 VGA Out Connector HD-15 Female x 1 RJ-45 Connector 2048x1536 Max. Resolution 60Hz Cable Distance (Max.) 300 meters/1000 feet Power Adapter (Min.) DC 12V 600mA Housing Aluminum Weight (lbs) Dimensions (LxWxH) 5x3.25x1.25 inches Distances and Resolutions for CAT5/5E and CAT6... - Page 5 Wiring Information & Coding Conductor RJ45 Pin Color Code Identification Assignment for Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown 1501 Webster Street Dayton, Ohio 45404 www.cablestogo.com...
