Cables to Go TruLink 39959 User Manual

1 port vga over utp extender- base unit

TruLink™

1 Port VGA over UTP Extender- Base Unit

USER MANUAL

Model #39959

Table of Contents

Need help?

Do you have a question about the TruLink 39959 and is the answer not in the manual?

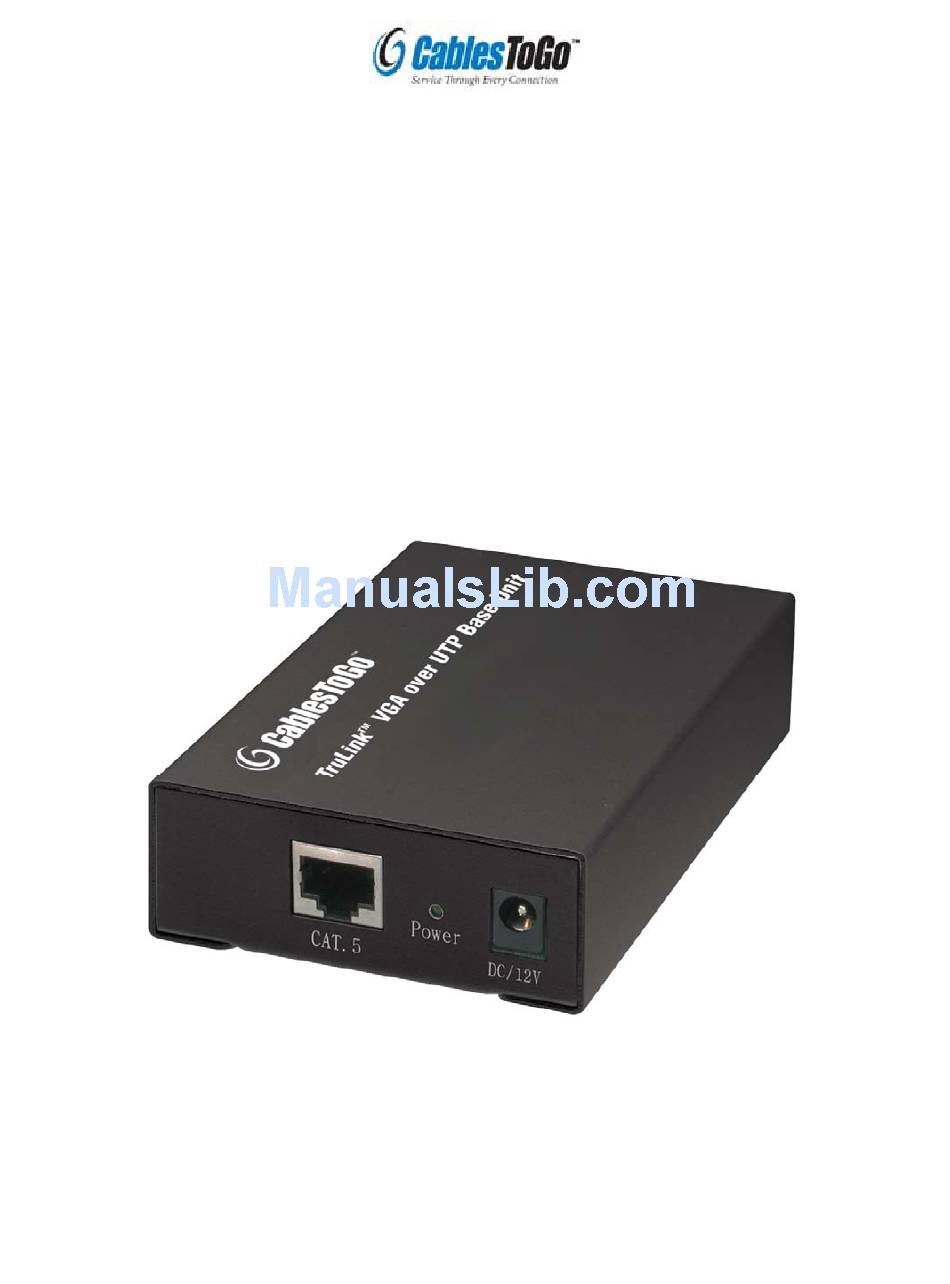

Page 1 TruLink™ 1 Port VGA over UTP Extender- Base Unit USER MANUAL Model #39959...
Page 2: Package Contents
Introduction The TruLink™ VGA over UTP Extender Base Unit, when used with the Remote Unit (part #39961), is a robust solution that allows you to extend your VGA signal up to 300 meters (1000 feet) over a Cat5E Unshielded Twisted Pair (UTP) cable. This solution is ideal for applications where your VGA monitor needs to be placed further than the average 100 foot VGA cable limitation.
Page 3: Application Diagram
Installation 1. Turn off the PC and monitor. 2. Connect the HD-15 female input connector on the VGA over UTP Extender Base Unit with the HD-15 male to male cable to the PC. 3. At the remote location, connect the HD-15 female output connector on the VGA over UTP Extender Remote Unit (sold separately) with HD-15 male cable from your monitor.
Page 4: Specifications
Specifications Function 39959 VGA In Connector HD-15 Female x 1 VGA Out Connector HD-15 Female x 1 RJ-45 Connector Max. Resolution 2048x1536 60Hz Cable Distance (Max.) 300 meters/1000 feet Power Adapter (Min.) DC 12V 600mA Housing Metal Weight (lbs) Dimensions (LxWxH) 4.5x3x1.5 inches Distances and Resolutions for CAT5/5E/CAT6...
Page 5 Wiring Information & Coding Conductor RJ45 Pin Color Code Identification Assignment for Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown 1501 Webster Street Dayton, Ohio 45404 www.cablestogo.com...
