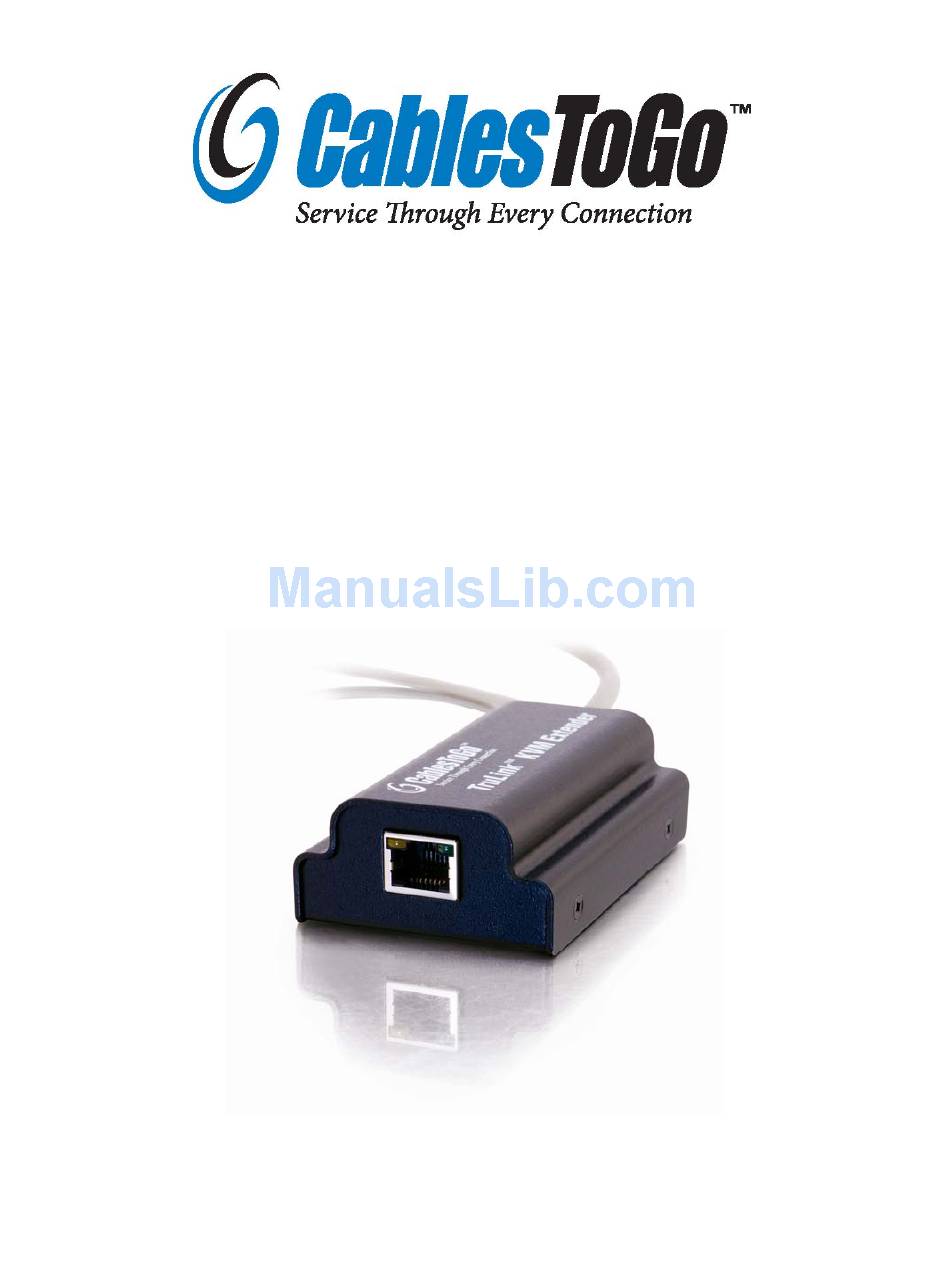

- Page 1 TruLink™ KVM Extender Model: 39969 - VGA/USB over Cat5 Model: 39970 - VGA/ (PS/2) over Cat5 Operation Manual Ver. 1.0...
-
Page 2: Operation Manual
39969 Function: The TruLink KVM Extender from Cables To Go allows you to control a computer up to 230ft. away from your keyboard, monitor, and mouse. Use it to give remote access from a server room, rack or KVM switch. - Page 3 Table of Contents Function...…………………………………………………………………………...ii Package Contents………………………………………………………………...ii Features……………………………………………………………………………..1 Connecting the KVM Extender...………...…………………...1 Operating the KVM Extender...………………………………...3 Specifications……………………………………………………………………...4 Warranty/Important Safety Information…………………………………………...5...
- Page 4 Features: • Up to 1600 x 1200 @ 75Hz (depending on distance) • Advanced CAT5 technology • Pure hardware solution – real time data transfer, no software conflicts • Plug-and-play installation – no extra protocols needed • Multi-platform Transmitter models - PS/2 / USB Connecting the KVM Extender Note: Before making any connections, please do the following •...
- Page 5 1a. Connecting the PS/2 Transmitter (model: 39970) 1c. Connecting a USB Transmitter (model: 39969) The USB Transmitter supports Windows 98 and later, SUN, SGI, MAC and other operating systems supporting a USB interface. Connect the USB Transmitter as illustrated in Figure 3.
-
Page 6: Operating The Kvm Extender
3. Connect the Receiver to a PS/2 KVM console as illustrated below in Figure 4. 4. Connect the supplied 5VDC Power adapter to the Receiver. The Transmitter receives its power from the connected computer. LED indicators Both the Transmitter and Receiver have 2 LEDs above the RJ45 port. The green LED indicates power is on. -
Page 7: Specifications
• For AIX, press Shift, Tab, U, 3, Esc Display Data Channel (DDC) hotkey Display Data Channel is a VESA standard for communication between a monitor and a video adapter. To input the monitor’s DDC information into the Transmitter’s memory, press: Shift, Tab, D, Esc Update the DDC information if you replace the monitor. -
Page 8: Important Safety Information
Cables To Go™ Three Year Warranty At Cables To Go, we want you to be totally confident in your purchase. That is why we offer a three year warranty on this device. If you experience problems due to workmanship or material defect for the duration of this warranty, we will repair or replace this device.
