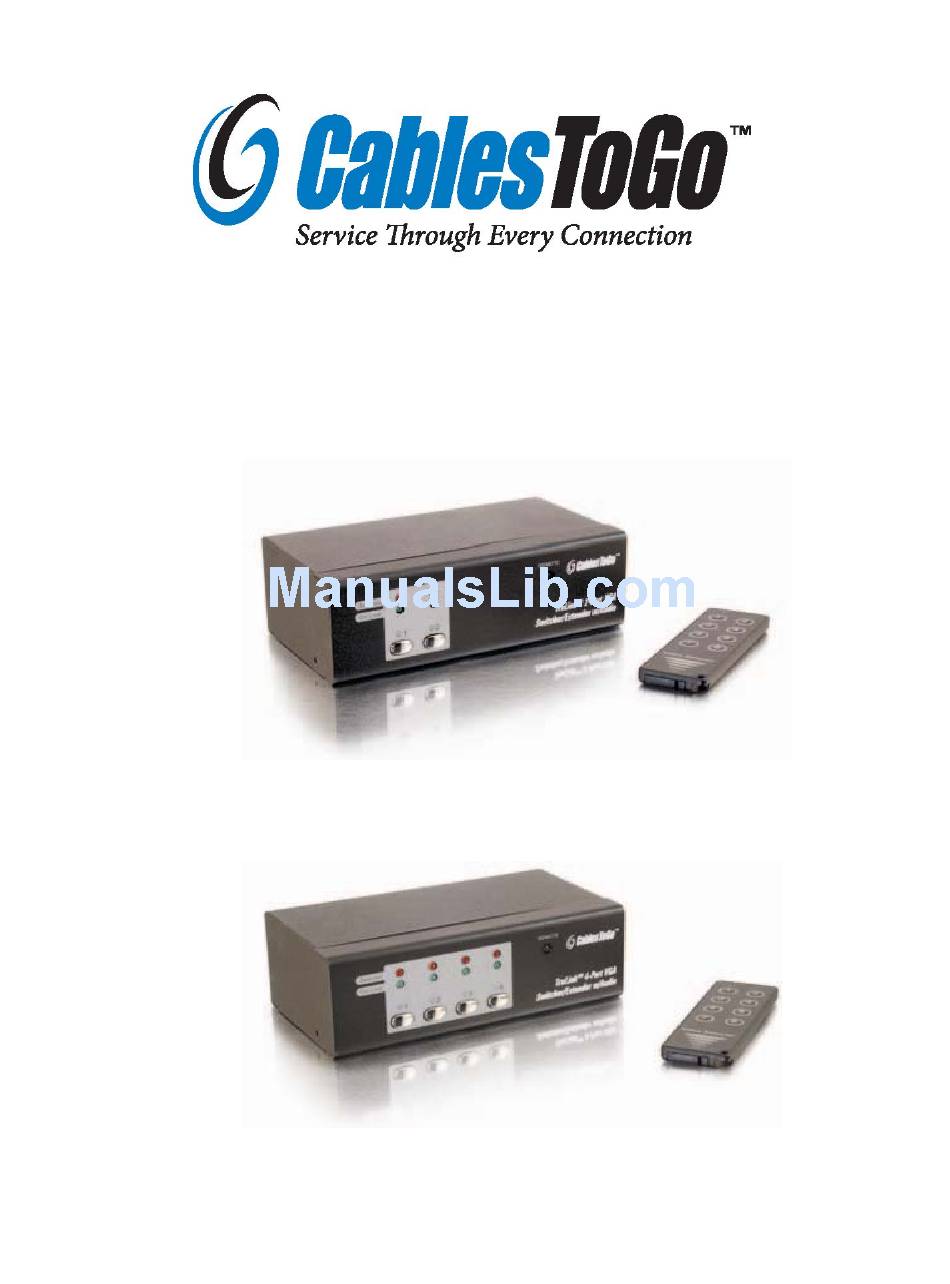

- Page 1 TruLink™ VGA Switcher/Extender w/Audio Model: 39971 (2-port) Model: 39972 (4-port) Operation Manual ver. 1.0...
-
Page 2: Operation Manual
Operation Manual TruLink™ VGA Switcher/Extender w/Audio Model: 39971 (2-port) 39972 (4-port) Thank you for purchasing the TruLink™ VGA Switcher/Extender w/Audio. We recommend that you read this manual thoroughly and retain for future reference. 39971 Function: The TruLink™ VGA Switcher/Extender with Audio allows you to choose between multiple PCs to display it on one monitor or projector. -
Page 3: Table Of Contents
Functions …………………………………………………………………………...ii Package Contents………………………………………………………………...ii Features……………………………………………………………………………..1 Connecting the VGA Switcher/Extender...…….…….…..…………….1-2 Operating the VGA Switcher/Extender...……………..…………………..2 Operating the VGA Switcher/Extender with the remote control...2 Operating the VGA Switcher/Extender from the front panel... 2 Troubleshooting…………………………………………………………………...3 Specifications……………………………………………………………………...3 Warranty/Important Safety Information…………………………………………...4 Table of Contents... -
Page 4: Features
Suitable for VGA, SVGA, XGA, SXGA, UXGA, and Multi-sync monitors Connecting the VGA Switcher/Extender Examples in this manual will be with reference to product 39971. Before you make any connections, you will need at least one VGA (HD15) male to male cable to connect from the switch to the monitor. -
Page 5: Operating The Vga Switcher/Extender
Back of 39971 DC 5V 1A Power Jack VGA port (PC1) VGA port of Monitor or Projector Operating the VGA Switcher/Extender Operating the VGA Switcher/Extender with the remote control 1. To operate the switch by remote first remove the isolation mylar from the back of the remote control. -
Page 6: Troubleshooting
2 or 4 x HDB-15 female 2 or 4 x Stereo speaker plugs 1 x HDB-15 female 1 x Stereo speaker jack Yes (Max. Resolution: 2048x1536)@85Hz 450 MHz DC 5V 1A 14 x 8.5 x 4.5 (cm) 400 g ( 39971) / 435 g (39972) -
Page 7: Warranty/Important Safety Information
Cables To Go™ One Year Warranty At Cables To Go, we want you to be totally confident in your purchase. That is why we offer a one year warranty on this device. If you experience problems due to workmanship or material defect for the duration of this warranty, we will repair or replace this device. - Page 8 Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
