Summary of Contents for Cables to Go 29550

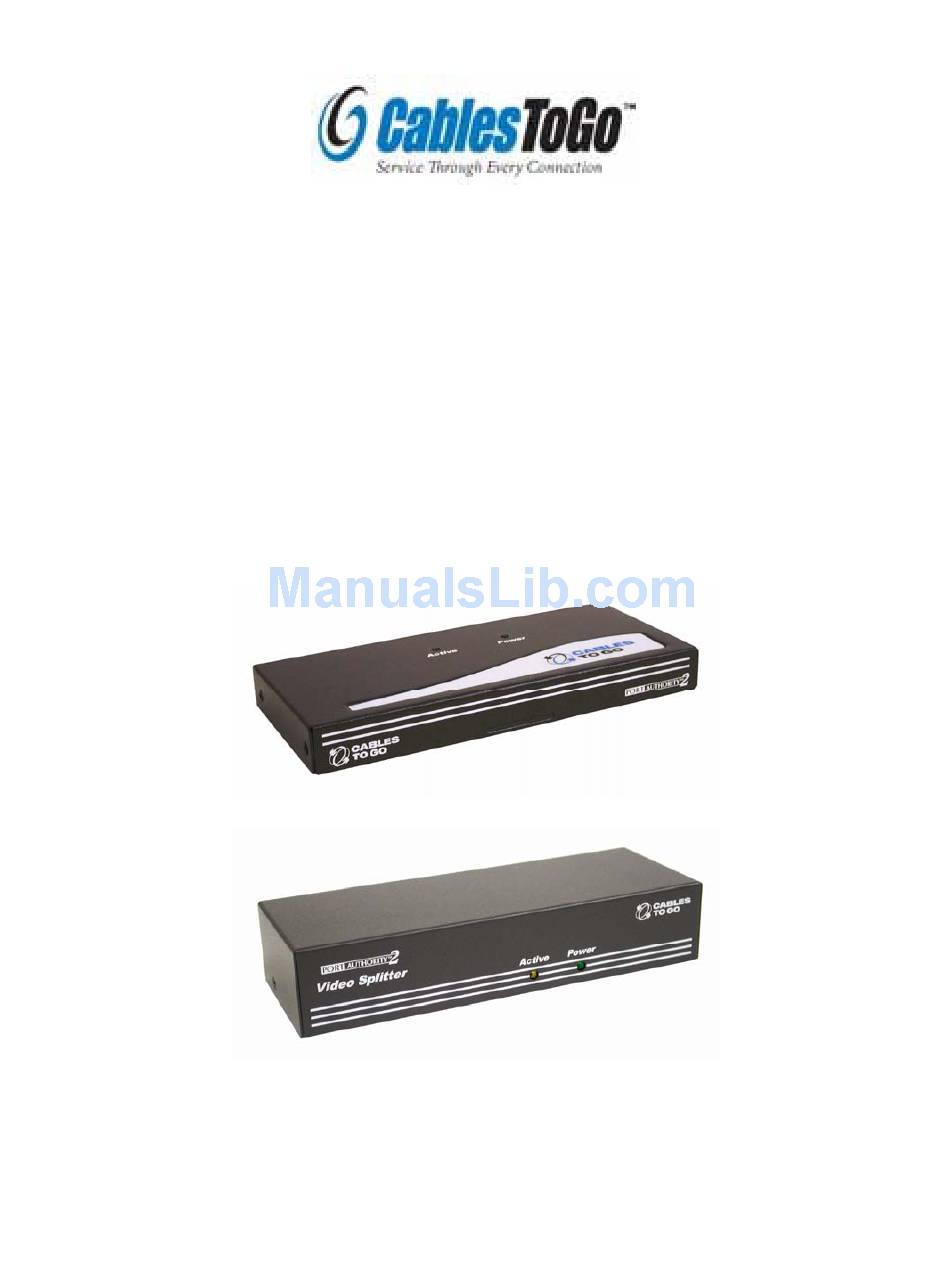

- Page 1 Video Splitter Extender User’s Manual Boost and transmit your VGA video signal to multiple Monitors #29550- 2 Port #29551- 4 Port #29552- 8 Port...
- Page 2 User's Manual Introduction …………………………. Break the limits of SVGA with a VSE from Cables To Go. Simultaneously distribute any video signal to up to 8 different video outputs, while maintaining vivid picture quality. The VSE is powerful, yet easy to use. Superb...
- Page 3 Video Splitter Input to a computer's VGA output. Multiple monitors should be connected to the Video Splitter's output ports as shown below. Figure 1 : 29550 Connection Figure 2 : 29551 Connection Figure 3 : 29552 Connection...
-
Page 4: Specifications
►ACTIVE LED turns on when there is VGA signal at the Input port. ►POWER LED turns on when the Video Splitter is powered up by the AC 9V power adapter. Specifications ………………………... Function 29550 Number of VGA output Signal bandwidth 350MHz Signal type... - Page 5 Optional Cables……………………... Description 6ft PRO SERIES HD15 UXGA MONITOR CABLE 10ft PRO SERIES HD15 UXGA MONITOR CABLE 15ft PRO SERIES HD15 UXGA MONITOR CABLE 25ft PRO SERIES HD15 UXGA MONITOR CABLE 35ft PRO SERIES HD15 UXGA MONITOR CABLE 50ft PRO SERIES HD15 UXGA MONITOR CABLE 75ft PRO SERIES HD15 UXGA MONITOR CABLE 100ft PRO SERIES HD15 UXGA MONITOR CABLE 28001 28011...
-
Page 6: Limited Warranty
For further information, please contact your direct vendor. All the brand names and registered trademarks are the property of their respective owners. 1501 Webster Street Dayton, Ohio 45404 1-800-293-4970 www.cablestogo.com Copyright 02/2007 Cables To Go CTG-V29550-100 Printed in Taiwan PP5-V7100-215...
