USB to Serial DB9
SuperBooster Wall Plate
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 29343 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cables to Go 29343

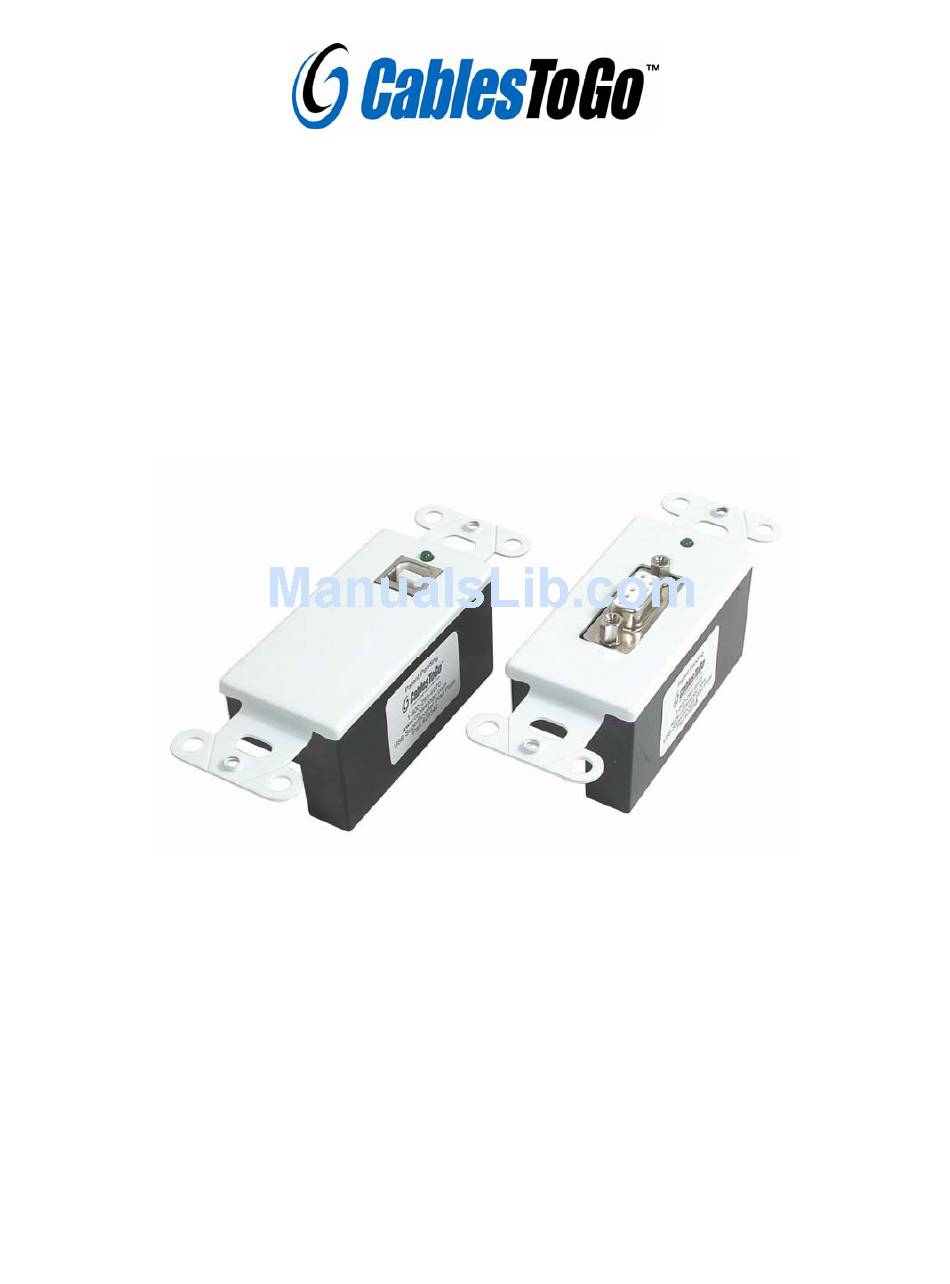

  • Page 1 USB to Serial DB9 SuperBooster Wall Plate User Manual...
  • Page 2 RS-232 serial port while conquering USB length limitations. The USB to Serial DB9 SuperBooster Wall Plate from Cables To Go extends the distance of a serial device to a host computer up to 150ft via USB so you can place your device (such as a cellular...
  • Page 3 Package Contents • USB to DB9 Serial SuperBooster Wall Plate- Transmitter Unit • USB to DB9 Serial SuperBooster Wall Plate- Receiver Unit • (2) Two RJ45 tool-less IDC connectors • (4) Four #6x32 slotted/phillips screws • User Guide • Driver CD Hardware Requirements •...
  • Page 4: Driver Installation

    Installing your USB to DB9 Serial SuperBooster Wall Plate Driver Installation Make sure you install the driver software before plugging the transmitter into the USB port for the first time! 1. Insert the CD into your CD-ROM. The CD should auto-run and a menu should appear.
  • Page 5 To change this COM number assigned, go to Device Manager under Ports and find the device, as above. Right-click that device and select Properties. Click the Port Settings tab. Click the Advanced Button. You will see a box in the lower left corner to assign a different COM port to the adapter.
  • Page 6 Terminating a Cat5/Cat5E/Cat6 Cable Using the Tool-less IDC 1) Open the plug by lifting the clear plastic end 2) Pin 1 of the connector is on the left side of the clear plastic shell while Pin 8 is on the right side of the connector (with RJ45 connector facing away from you) 3) Thread the white/orange conductor on your Cat5/5E/6 cable into Pin 1 4) Thread the orange conductor on your Cat5/5E/6 cable into Pin 2 5) Thread the white/green conductor on your Cat5/5E/6 cable into Pin 3...
  • Page 7: Application Diagram

    Termination Chart Pin Number Application Diagram Transmitter Network (Cat5/5E/6) Conductor Color white/orange orange White/green Blue White/blue Green White/brown brown Receiver 3555 Kettering Blvd. Moraine, OH 45439 1-800-293-4970 www.cablestogo.com...
