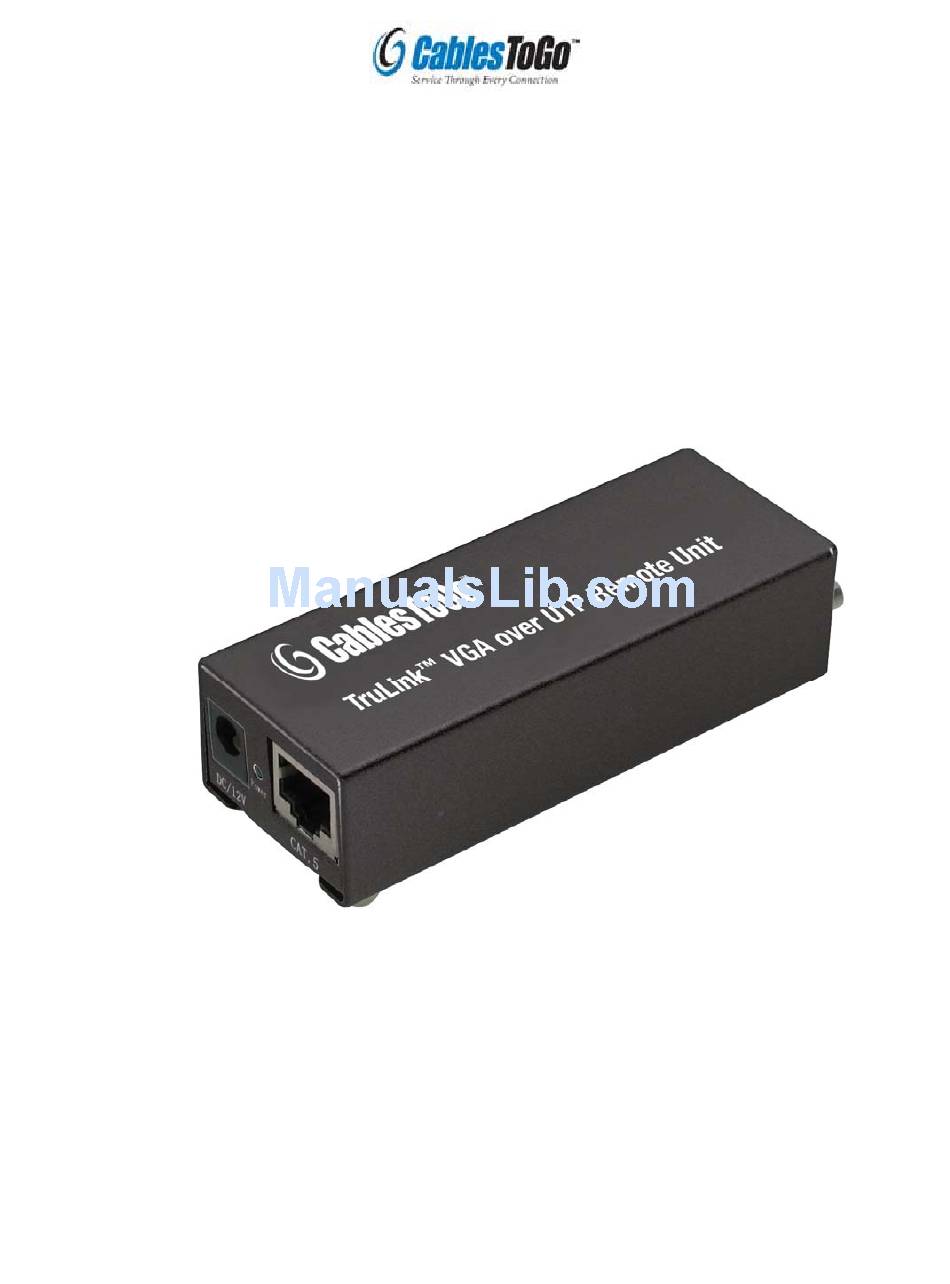

- Page 1 TruLink™ VGA over UTP Extender- Remote Unit USER MANUAL Model #39961...
-
Page 2: Package Contents
• User Manual System Requirements • Base Unit- Part #39959 or #39960 (sold separately) • Remote Unit- Part #39961 (included) • Cat5E UTP Cable • HD15 connection on computer • HD15 connection on each monitor, projector, or other display device •... -
Page 3: Application Diagram
Installation 1. Turn off the PC and monitor(s). 2. Connect the HD-15 female input connector on the VGA over UTP Extender Base Unit (sold separately) with the HD-15 male to male cable to the PC. 3. At each remote location, connect the HD-15 female output connector on the VGA over UTP Extender Remote Unit with HD-15 male cable from your monitor(s). -
Page 4: Specifications
Specifications Function 39961 VGA Out Connector HD-15 Female x 1 RJ-45 Connector 2048x1536 Max. Resolution 60Hz Cable Distance (Max.) 300 meters/1000 feet Power Adapter (Min.) DC 12V 600mA Housing Metal Weight (lbs) Dimensions (LxWxH) 3.75x1.5x1.25 inches Distances and Resolutions for CAT5/5E and CAT6... - Page 5 Wiring Information & Coding Conductor RJ45 Pin Color Code Identification Assignment for Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown 1501 Webster Street Dayton, Ohio 45404 www.cablestogo.com...
