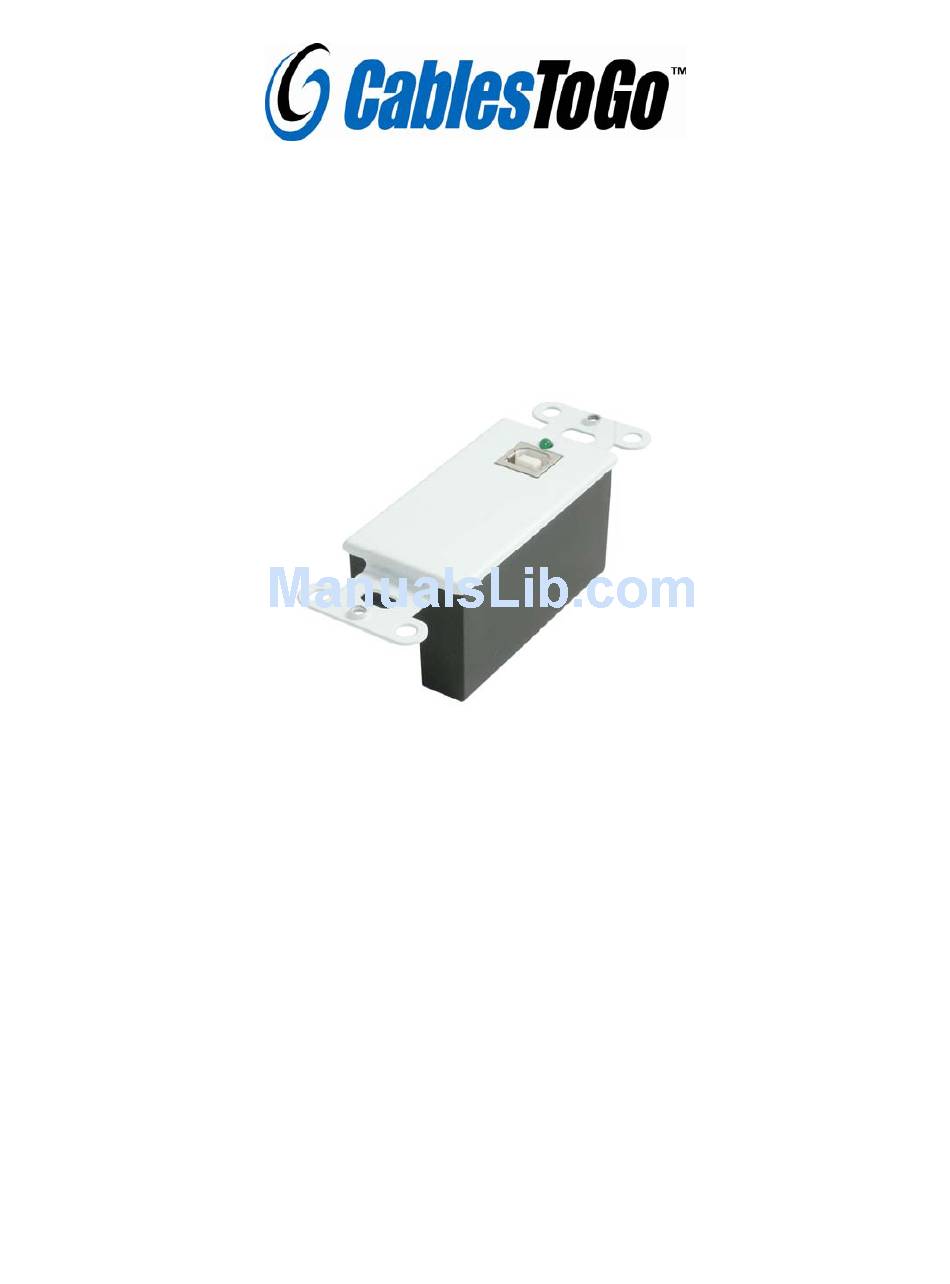

USB SuperBooster Transmitter Wall Plate Part #29344 User Manual... - Page 2 Introduction Thank you for purchasing the USB SuperBooster Transmitter Wall Plate. The USB SuperBooster Transmitter Wall Plate is one component of a complete solution that, when paired with a receiver (sold separately) allows you to conquer USB length limitations and put your USB devices where you need them.
-
Page 3: Package Contents
Features • Extends the distance of a USB device from a USB-enabled computer up to 150ft • One part of a total solution- receiver is purchased separately giving you the flexibility to customize the configuration to your specific needs • Receiver options include a 2-port wall plate (part #29345), a 2-port dongle (part # 29346), or a 4-port dongle (part #29347) •... - Page 4 Installing your USB SuperBooster Wall Plate The USB SuperBooster Wall Plate has a transmitter unit and a receiver unit (sold Make certain you install the transmitter unit at your separately). computer or source side. The receiver unit needs to be installed on the device side.
-
Page 5: Application Diagram
Termination Chart Pin Number Application Diagram Transmitter Network (Cat5/5E/6) Conductor Color white/orange orange White/green Blue White/blue Green White/brown brown 3555 Kettering Blvd. Moraine, Ohio 45439 1-800-293-4970 www.cablestogo.com Receiver...
