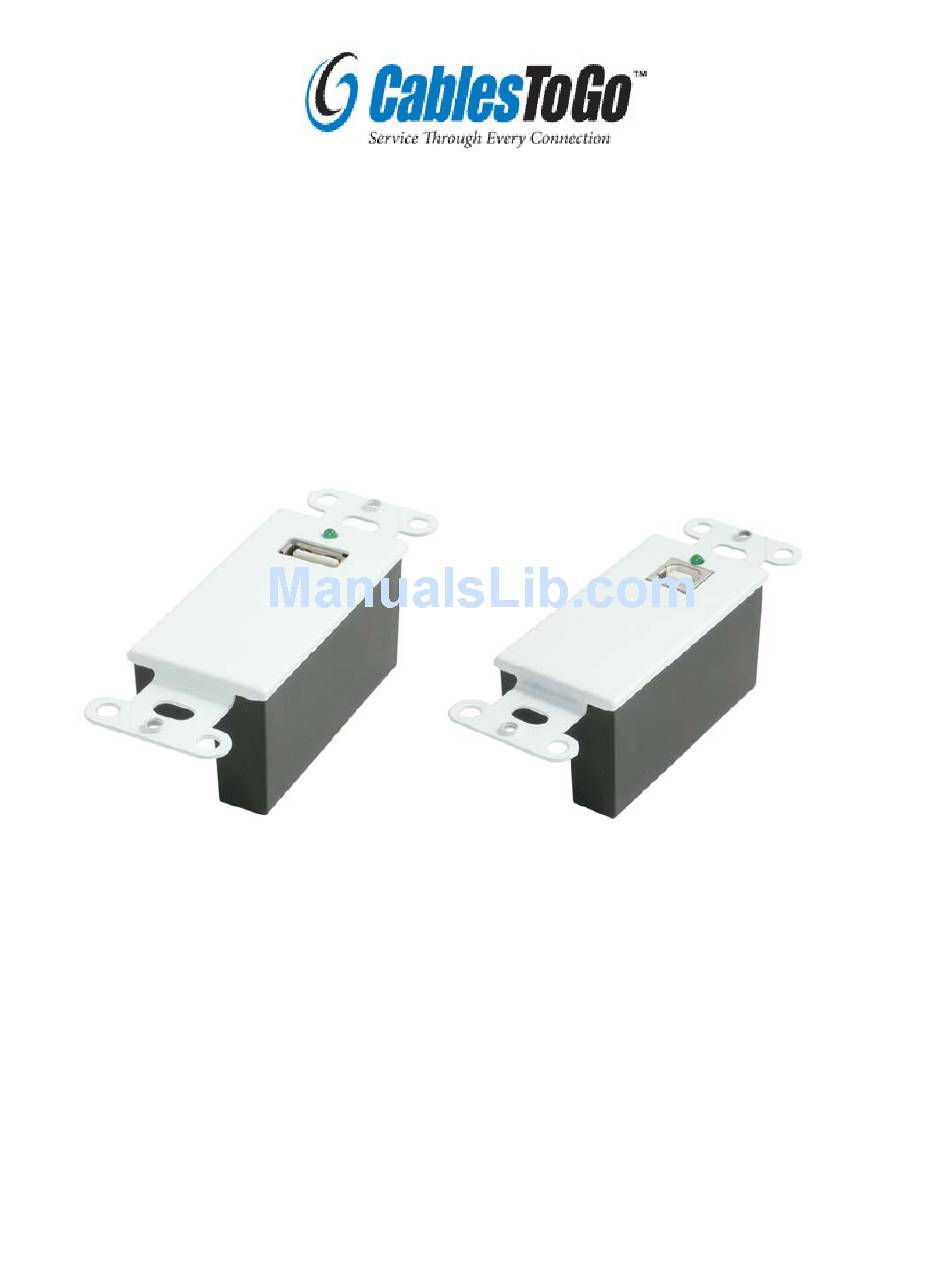

- Page 1 USB SuperBooster Wall Plate User Manual...
-
Page 2: Package Contents
USB devices where you need them with the patent pending USB SuperBooster Wall Plate from Cables To Go. This wall plate solution extends the distance of a USB device to a host computer up to 150ft so you can place your USB... - Page 3 Installing your USB SuperBooster Wall Plate The USB SuperBooster Wall Plate has a transmitter unit and a receiver unit. certain you install the transmitter unit at your computer or source side. The receiver unit needs to be installed on the device side. 1) Install the Transmitter unit in a standard J-box where you want your source/computer 2) Install the Receiver unit in a standard J-box where you want your USB device...
-
Page 4: Application Diagram
Termination Chart Pin Number Application Diagram Transmitter Network (Cat5/5E/6) Conductor Color white/orange orange White/green Blue White/blue Green White/brown brown 1501 Webster Street Dayton, Ohio 45404 1-800-293-4970 www.cablestogo.com Receiver...
