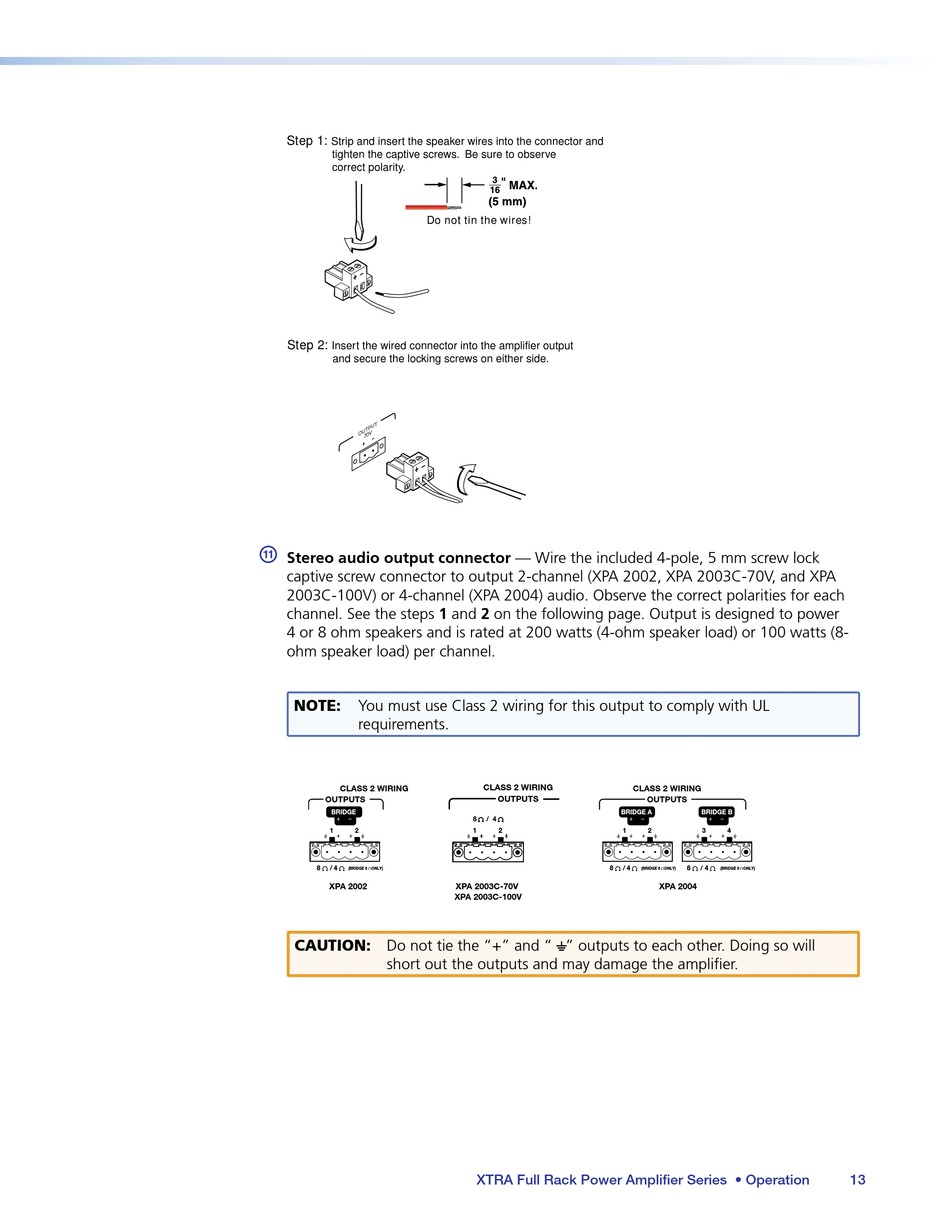

Step 1:
Strip and insert the speaker wires into the connector and
tighten the captive screws. Be sure to observe
correct polarity.
Do not tin the wires!
Step 2:
Insert the wired connector into the amplifier output
and secure the locking screws on either side.
U T
T P
O U
V
7 0
k
Stereo audio output connector — Wire the included 4-pole, 5 mm screw lock
captive screw connector to output 2-channel (XPA 2002, XPA 2003C-70V, and XPA
2003C-100V) or 4-channel (XPA 2004) audio. Observe the correct polarities for each
channel. See the steps 1 and 2 on the following page. Output is designed to power
4 or 8 ohm speakers and is rated at 200 watts (4-ohm speaker load) or 100 watts (8-
ohm speaker load) per channel.
NOTE: You must use Class 2 wiring for this output to comply with UL
requirements.
CLASS 2 WIRING
OUTPUTS
BRIDGE
1 2
8 / 4
(BRIDGE 8 ONLY)
XPA 2002
CAUTION: Do not tie the "+" and " _" outputs to each other. Doing so will
short out the outputs and may damage the amplifier.
CLASS 2 WIRING
CLASS 2 WIRING
OUTPUTS
BRIDGE A
8 / 4
1 2 1
8 / 4
XPA 2003C-70V
XPA 2003C-100V
XTRA Full Rack Power Amplifier Series • Operation
OUTPUTS
BRIDGE B
2 3 4
8 / 4
(BRIDGE 8 ONLY) (BRIDGE 8 ONLY)
XPA 2004
13
