Extron electronics XTRA Full Rack Series User Manual

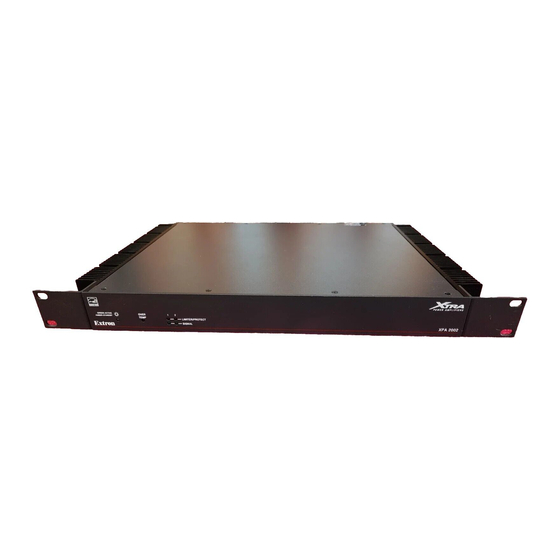

Full-rack 2-, 3-, and 4-channel mono and stereo audio power amplifiers
Hide thumbs
Also See for XTRA Full Rack Series:
- User manual (32 pages) ,
- Setup manual (2 pages) ,
- User manual (27 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Extron electronics XTRA Full Rack Series
Summary of Contents for Extron electronics XTRA Full Rack Series
- Page 1 User Guide Audio Products XTRA Full Rack Series: ™ XPA 2002-70V XPA 2004 XPA 2002-100V XPA 4002 XPA 2003C-70V XPA 4002-70V XPA 2003C-100V Full-Rack 2-, 3-, and 4-Channel Mono and Stereo Audio Power Amplifiers 68-783-01 Rev. F 04 20...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad WARNING This symbol, , when used on the product, is intended to avvertire l’utente della presenza di tensione non isolata pericolosa alert the user of the presence of uninsulated dangerous voltage within the all’interno del contenitore del prodotto che può...
- Page 3 Copyright © 2009-2020 Extron Electronics. All rights reserved. www.extron.com Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ® ), registered service marks ( ), and trademarks ( ) are the property of RGB Systems, Inc. or Extron Electronics (see the current list of trademarks on the...
- Page 4 FCC Class B Notice NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: Table Of Contents
Contents Introduction ..........1 About this User Guide ......... 1 Terms Used in this User Guide ......1 Features .............. 2 Installation ..........3 Application Examples .......... 3 Installing the XPA Amplifier ........6 Operation ........... 9 Front Panel Features and Operation ....9 Rear Panel Features and Operation .... -
Page 7: Introduction
Introduction About this User Guide This user guide contains information about the Extron series of full rack width audio power amplifiers. The Extron XTRA™ Series is a family of 1U convection cooled power amplifiers with mono, stereo, and multi-channel outputs. These professional grade amplifiers deliver from 200 to 800 watts of continuous output power and are available for low and high impedance applications. -
Page 8: Features
Features Extron Patented Class D Ripple Steering (CDRS™) technology — CDRS is an Extron patented technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifier designs. CDRS eliminates the high frequency switching ripple characteristic of Class D amplifiers, a source of RF emissions, which can interfere with sensitive A/V equipment such as wireless microphones. -
Page 9: Installation
Installation This section discusses how to install the XTRA Series of full rack power amplifiers. WARNING: Installation and service must be performed by authorized personnel only (see UL Rack Mounting Guidelines on page 20). AVERTISSEMENT : L’installation et l’entretien doivent être effectués par le personnel autorisé... - Page 10 Extron XPA 2003C-70V XPA 2003C-100V Combo Power Ampli er Extron Extron SF 26CT Extron Two-Way Ceiling ∞ Speakers XPA 2003C-70V ∞ ∞ A 200 Extron , 50-6 0 Hz - ACT 1.5A - STAN 240V 100- XPA 2003C-100V SM 28 Combo Power Ampli er Surface-Mount Speakers...
- Page 11 Equipment Room Rack Extron XPA 2004 GREEN - ACTIVE OVER AMBER - STANDBY TEMP LIMITER / PROTECT Power Ampli er SIGNAL XPA 2004 Extron GREEN - ACTIVE OVER AMBER - STANDBY TEMP LIMITER / PROTECT SIGNAL XPA 4002 XPA 2004 Extron GREEN - ACTIVE OVER...
-
Page 12: Installing The Xpa Amplifier
Installing the XPA Amplifier Power off — Turn off all equipment including the XPA amplifier by toggling the power switch off and disconnecting the power cord. Verify that the amplifier is disconnected from the power source before proceeding. Mount the amplifier — For diagrams of typical application examples, see Application Examples starting on page 3. - Page 13 4-pole (8 ohm or 4 ohm) output connector wiring: Do not tin the wires! Figure 8. Wiring 4-pole Connectors ATTENTION: • Do not short the + and outputs to each other. Doing so may damage the amplifier. • Ne pas créer un court circuit entre les sorties + et au risque d’endommager l’amplificateur.
- Page 14 Set the high pass filter — Use a small screwdriver to toggle this switch between off (no filtering) and 80 Hz (default). • The XPA 2002-70V, XPA 2002-100V, and XPA 4002-70V have two switches, one for each output channel. The XPA 2003C-70V and the XPA 2003C-100V •...
-
Page 15: Operation
Operation This section discusses how to operate the XPA power amplifiers. Topics that are covered, include: • Front Panel Features and Operation • Rear Panel Features and Operation Troubleshooting • Front Panel Features and Operation The XPA power amplifier front panels are shown below. GREEN - ACTIVE OVER AMBER - STANDBY... -
Page 16: Rear Panel Features And Operation
Power indicator LED — (see figure 9 on the previous page) This LED lights: • Green when the amplifier is receiving full power. • Amber when the amplifier is in Standby mode. Standby mode turns off all outputs from the amplifier, although the amplifier is still receiving power (see Rear Panel Features and Operation,... - Page 17 100-240V 1.5A, 50-60 Hz XPA 2003C-70V REMOTE ATTENUATION INPUTS OUTPUTS 8 / 4 70 V LIMITER/ PROTECT 80 Hz GREEN - ACTIVE AMBER - STANDBY ∞ ∞ ∞ SIGNAL CLASS 2 WIRING XPA 2003C-70V Rear Panel 100-240V 1.5A, 50-60 Hz XPA 2003C-100V ATTENUATION REMOTE...
- Page 18 AC power connector — (see figure 10 starting on page 10) Connect a standard IEC AC power cord here for power input (100 VAC to 240 VAC, 50/60 Hz) to the internal, autoswitching power supply. The mains plug or appliance coupler shall remain readily operable. Power switch —...
- Page 19 ATTENTION: • Do not tin the wire leads before installing into the connector. Tinned wires are not as secure in the connector and could be pulled out. They may also break after being bent several times. • Ne pas étamer les conducteurs avant de les insérer dans le connecteur. Les câbles étamés ne sont pas aussi bien fixés dans le connecteur et pourraient être tirés.
- Page 20 70 V OUTPUTS OUTPUTS 70 V CLASS 2 WIRING CLASS 2 WIRING XPA 2003C-70V XPA 2002-70V XPA 4002-70V 100 V OUTPUTS OUTPUTS 100 V CLASS 2 WIRING CLASS 2 WIRING XPA 2002-100V XPA 2003C-100V Figure 12. Mono Audio Output Connectors ATTENTION: •...
- Page 21 OUTPUTS 8 / 4 OUTPUTS 8 / 4 OUTPUTS 8 / 4 BRIDGE A BRIDGE B BRIDGE BRIDGE BRIDGE 8 ONLY 8 ONLY CLASS 2 WIRING CLASS 2 WIRING CLASS 2 WIRING XPA 4002 XPA 2003C-70V XPA 2004 XPA 2003C-100V Figure 13.
-
Page 22: Bridged Mode Output
Bridged Mode Output XPA 4002 bridged mono output speaker wiring In bridged mode, the output mode toggle switch for Input 1 must be set to the bridged (up) position (see figure 8 below). For Input 1: The channel 1 + output terminal becomes the bridged + output terminal and the channel 2 + output terminal becomes the bridged “-”... - Page 23 XPA 2004 bridged mono output speaker wiring In bridged mode, the output mode toggle switches for Input 1 (A) or Input 3 (B) or both must be set to the bridged (up) position (see figure 8 below). For Input 1: The channel 1 + output terminal becomes the bridged + output terminal and the channel 2 + output terminal becomes the bridged - output terminal (see figure 16).
-
Page 24: Troubleshooting
Troubleshooting The front and rear panels have LED warning indicators, as described in the following diagnostic information. Amplifier Fails to Exit Standby Mode Promptly The input channel (channels 1, 2, 3, and 4) Signal LED lights green per indicated input channel when an input signal is detected. -
Page 25: Limiter/Protect Led Warning Indicators
Limiter/Protect LED Warning Indicators The output channel ( channels 1, 2, 3, and 4) Limiter/Protect LED lights red per indicated output channel as shown in the following diagnostic information. LED State Problem Description Problem Solution Blinks Audio clipping is occurring Reduce the power output to avoid and the Limiter/Protect LED is overdriving the amplifier and causing... -
Page 26: Reference Information
Reference Information This section discusses the mounting instructions for the XPA seires of power amplifiers. Mounting the XTRA Series Power Amplifiers The XPA power amplifiers can be set on a table or mounted on a rack shelf. Tabletop Use Four self-adhesive rubber feet are included with the audio amplifier. For tabletop use, attach one foot at each corner of the bottom side of the unit and place the unit in the desired location. -
Page 27: Rack Mounting
Rack Mounting The XTRA series of audio amplifiers are housed in rack-mountable metal enclosures with pre-attached mounting ears for standard 19-inch racks. Mount the amplifier as follows: Disconnect all cables and power sources from the amplifier. Position the amplifier in the mounting rack so that the four slots in the mounting ears are aligned with the rack mounting holes. - Page 28 ID G W IR ID G ID G (B R ID G (B R W IR ∞ ∞ ID G ID G IT E (B R L IM ∞ ∞ ID G (B R W IR S IG -6 0 , 50 TI VE 1.
- Page 29 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
