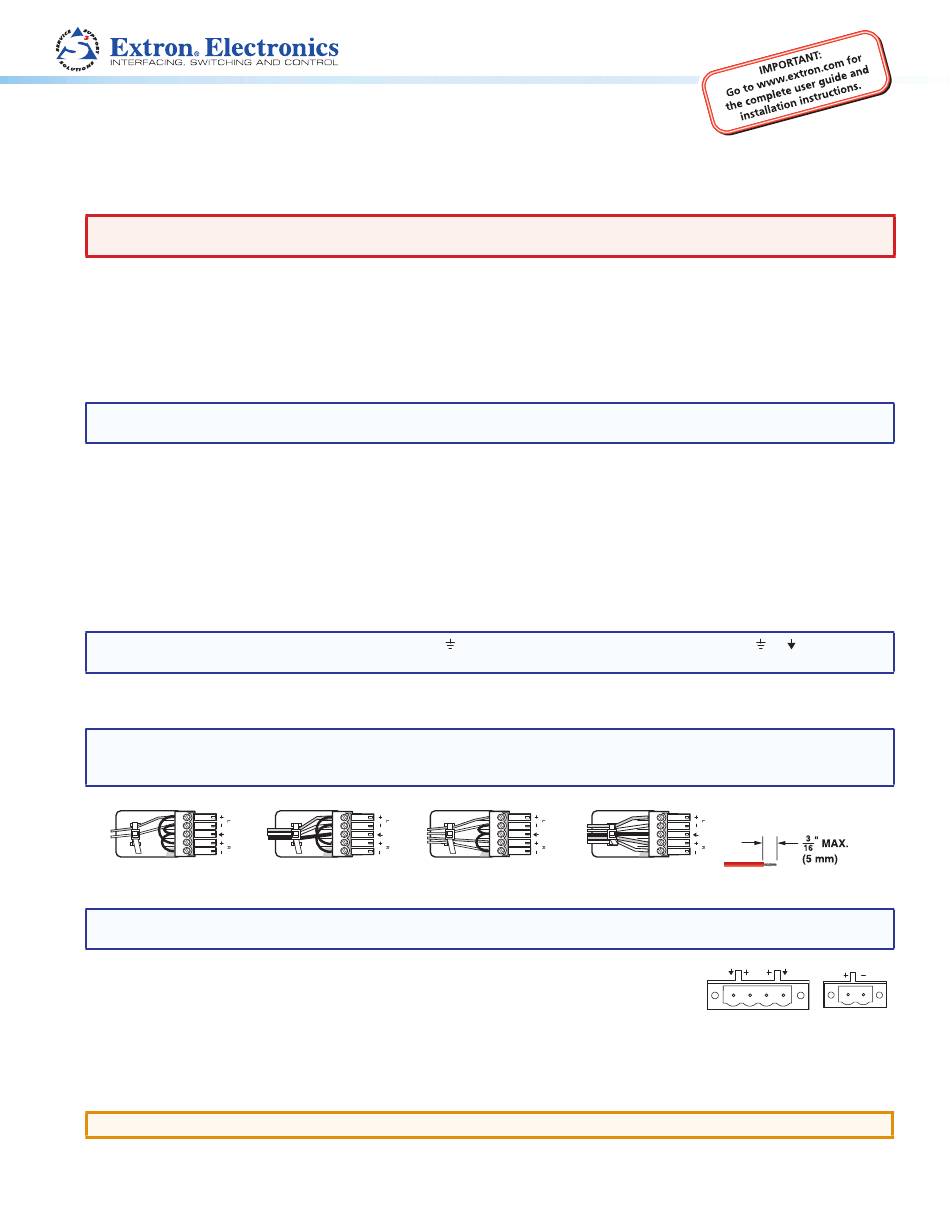

Extron electronics XTRA Half-Rack Series Setup Manual

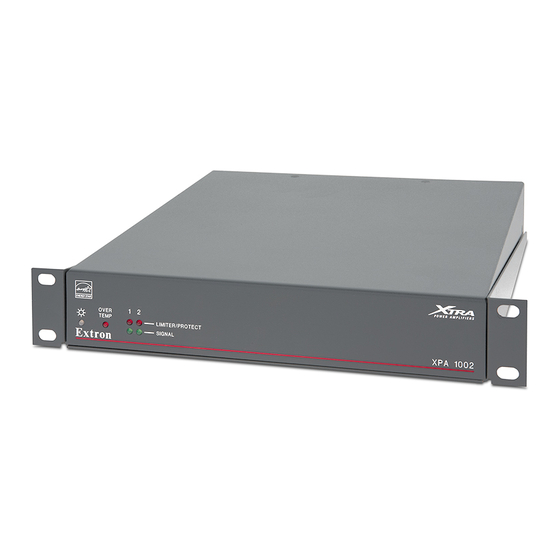

XTRA Half-Rack Series
™
Audio Power Amplifiers • Setup Guide
WARNING:
May cause serious injury. Installation and service must be performed by authorized personnel only. These
products must be used with UL approved, grounded, electrical boxes.
This guide provides startup instructions for an experienced installer to set up and operate the XPA 1002 or XPA 2001 Series
audio power amplifier. All references are to the XTRA
website.
Step 1
Be sure that power to the amplifier is turned off first.
NOTE: Adjust the audio level to = (full attenuation) prior to the amplifier being powered back up in step 5 (see
"Rear Panel Features and Operation" in the User Guide).
Turn off all other equipment and disconnect the power cords. Verify that the amplifier is disconnected from the power
source before proceeding.
Step 2
For diagrams of typical application examples, see "Application Examples" in the User Guide. For further mounting
instructions, see "Mounting the XPA 1002 and XPA 2001" in the User Guide.
Step 3
NOTE: Control signal ground pins may be labeled as
The wiring and function are the same, whichever way your product is labeled.
Wire the source output to the amplifier input 3.5 mm captive screw connectors as shown in the following illustration (see
"Rear Panel Features and Operation" in the User Guide).
NOTE: The output power of the XPA 1002 can be effectively doubled by using only one input channel and bridging the
output. The XPA 1002 outputs 200 watts @ 8 ohms in bridged mode (see "Bridged Mono Output" in the
User Guide for wiring instructions when bridging the XPA 1002).
Tip
Sleeve
Unbalanced Mono Input
XPA 1002
NOTE: For mono input on the XPA 2001, only the left channel needs to be wired; no jumpering to the right channel is
needed. The left and right inputs of the XPA 2001 are summed internally to mono.
Step 4
Wire the speakers to the output connector of the amplifier using the included 4-pole (XPA
1002) or 2-pole (XPA 2001-70V and XPA 2001-100V) captive screw plug as shown to the
right. See "Rear Panel Features and Operation" in the User Guide.
Step 5
ATTENTION:
The amplifier must be powered on last.
Reconnect all power cords and switch on all other equipment before powering on the power amplifier. The front panel
power LED of the amplifier lights green.
Tip
Tip
Sleeve
Ring
Sleeve Tip
Sleeve
Balanced Mono Input Unbalanced Stereo Input
XPA 1002
Half-Rack Series User Guide which can be found on the
™
or "G". Audio ground pins may be labeled as
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Input
Extron
or .
Do not tin the wires!
1 2
XPA 2001-70V
XPA 1002
XPA 2001-100V
