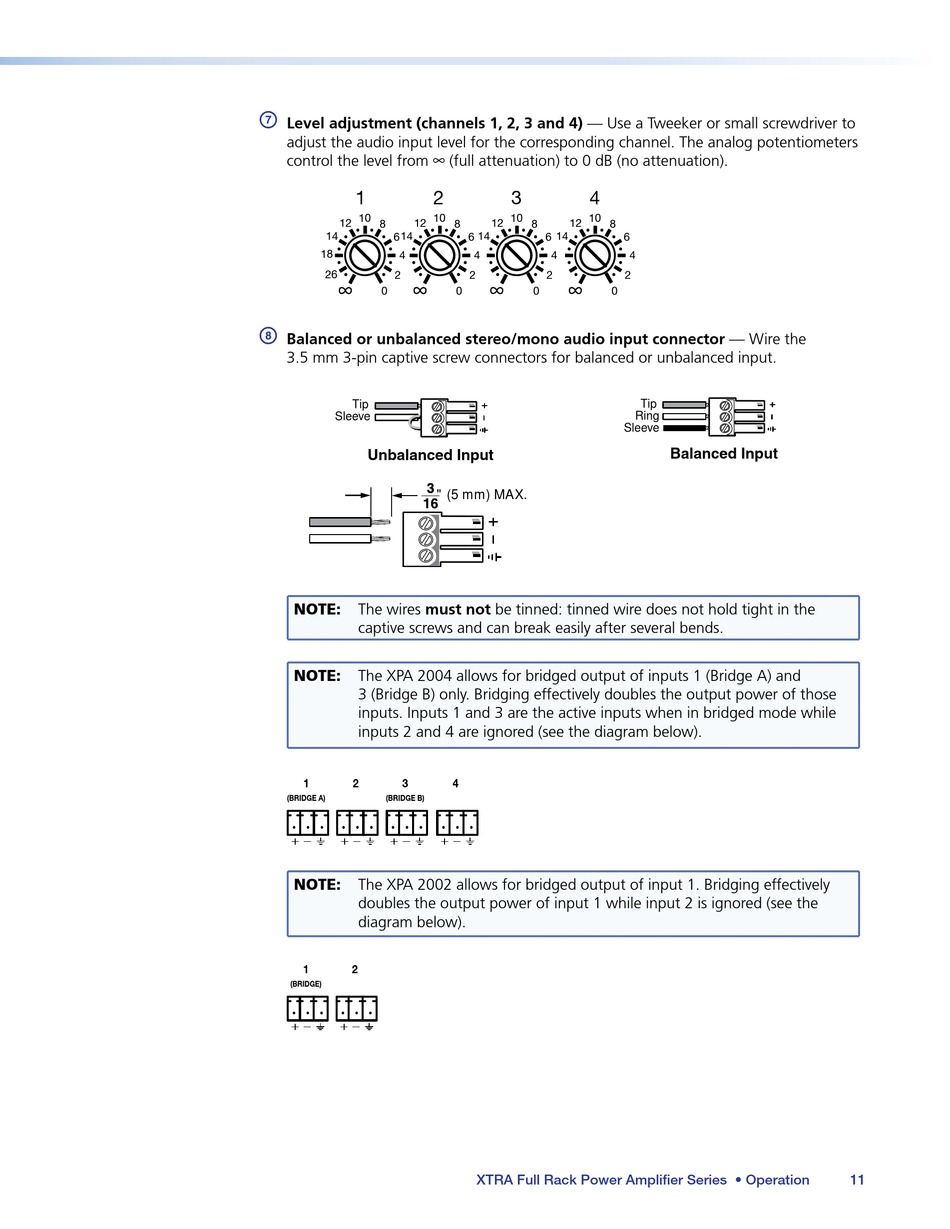

Level adjustment (channels 1, 2, 3 and 4) — Use a Tweeker or small screwdriver to
adjust the audio input level for the corresponding channel. The analog potentiometers
control the level from = (full attenuation) to 0 dB (no attenuation).
1 2
10 10
12 12
8
14 14
6
18
4
26
2
0
h
Balanced or unbalanced stereo/mono audio input connector — Wire the
3.5 mm 3-pin captive screw connectors for balanced or unbalanced input.
Tip
Sleeve
Unbalanced Input
" (5 mm) MAX.
NOTE: The wires must not be tinned: tinned wire does not hold tight in the
captive screws and can break easily after several bends.
NOTE:
The XPA 2004 allows for bridged output of inputs 1 (Bridge A) and
3 (Bridge B) only. Bridging effectively doubles the output power of those
inputs. Inputs 1 and 3 are the active inputs when in bridged mode while
inputs 2 and 4 are ignored (see the diagram below).
1 2 3
(BRIDGE A) (BRIDGE B)
NOTE: The XPA 2002 allows for bridged output of input 1. Bridging effectively
doubles the output power of input 1 while input 2 is ignored (see the
diagram below).
1 2
(BRIDGE)
LEVEL
3 4
10 10
12 12
8 8 8
14 14
6 6 6
4 4
2 2 2
0 0 0
Sleeve
4
