Summary of Contents for Recordex StudioJet AutoPrinter

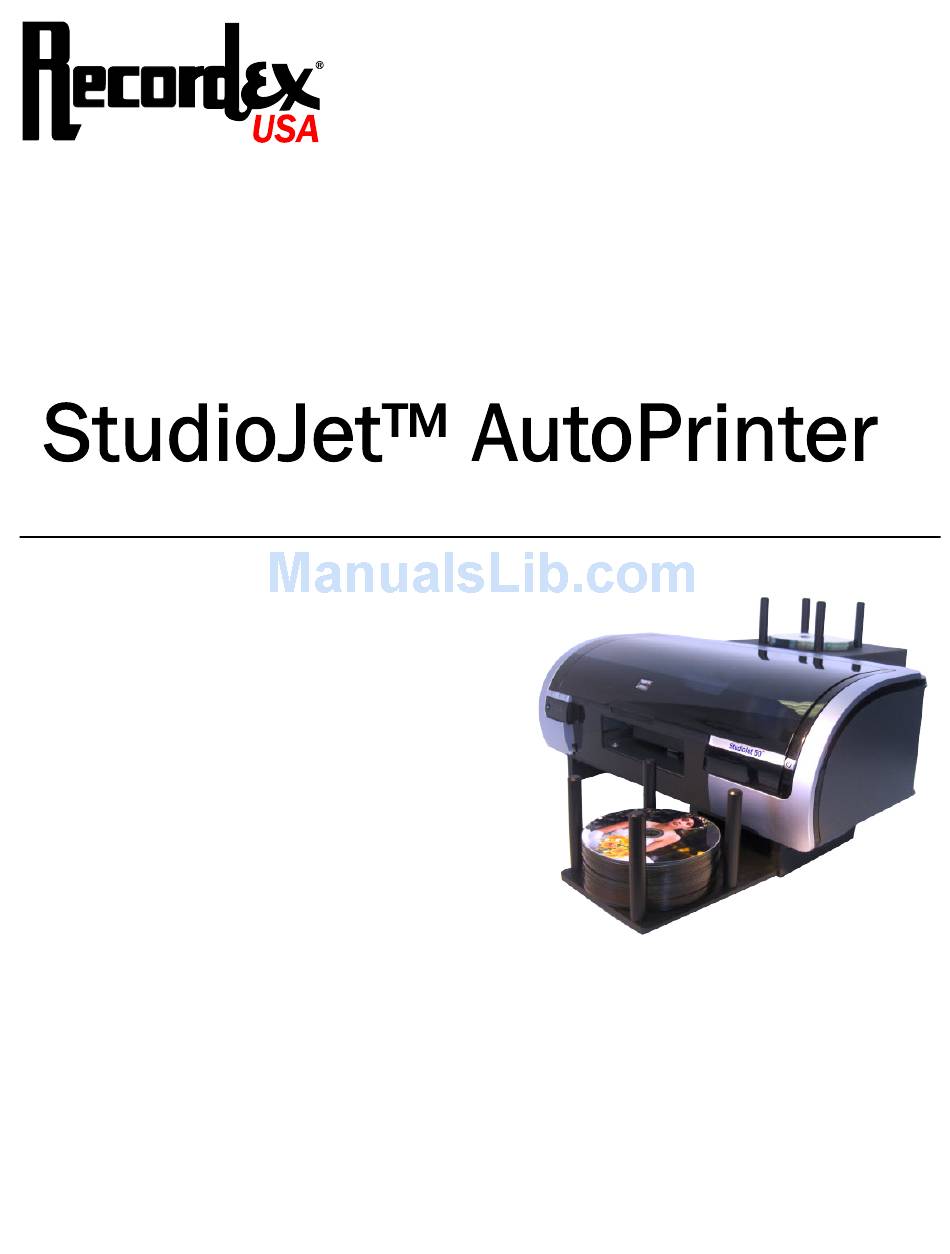

- Page 1 User’s Guide Commercial Grade Color DVD/CD Autoprinter Manual for Models: StudioJet™ StudioJet 100™ ENGLISH...
- Page 2 No part of this user’s guide may be reproduced in any Copyright ©2007 Recordex USA, Inc. All rights reserved. form without the express written permission of Recordex USA, Inc. Note: User’s are permitted to print copies of this guide for personal use.
-
Page 3: Warranty
(ii) to cosmetic problems or defects that result from normal wear and tear under ordinary use, and do not affect the per- formance or use of the product. If the autoprinter develops a covered defect within the first year, Recordex will, at its option, either repair or replace the autoprinter at no charge, provided that the autoprinter is returned during the warranty period. - Page 4 NOTE: Indicates a note that may provide useful information regarding operation of your autoprinter. Reading these notes will help you to better understand how your autoprinter operates ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 5 Chapter 3: Creating & Printing a Disc Label..................................15 Chapter 4: Printer Driver Settings......................................18 Chapter 5: Taking Care of Your Printer....................................22 Chapter 7: Trouble Shooting........................................23 Appendix A: Specifications..........................................25 Appendix B: Technical Support.........................................26 ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
-
Page 6: Customer Support
We strive to build the best product possible and we desire that every customer feel confident recommending Recordex products to their friends. If you are not fully satisfied please call our Customer Service Center today and we will do our best to make things right. - Page 7 One (1) Power Cord & AC Adapter One (1) 6’ USB Cable One (1) Black Ink Cartridge and One (1) Color Ink Cartridge One (1) StudioJet™ Setup Disc One (1) Manual and One (1) Quick Start Guide ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 8 8 - Tray Open/Close Button (pressing will open the disc tray) 9 - Cancel Print (pressing will cancel the current print job) ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 9 You may also hear the printer fan running. This fan helps to keep the printer cool and helps to clear the interior of the printer from ink spray. ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
-
Page 10: Installing The Ink Cartridges
C. Load Inkjet Printable Media 1. Load up to 50 discs, with the print surface facing up, into the disc input bin (see figure 2.4). Figure 2.4 Loading Disc Input Bin ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1... - Page 11 Windows Logo Testing lab. However, we guar- antee that our printer driver is safe for installation. Simply click “Continue Anyway” to complete the installation (Figure 2.8). Figure 2.8 ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 12 9. Select the Utilities tab and then click Test Print and your printer should begin printing a test disc within 10 to 20 sec- onds. Click OK to exit the printer preferences menu. Figure 2.11 Figure 2.12 Figure 2.13 ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 13 QuickTime. You should click Cancel (Figure 2.15) and then click Finish on the next screen (Figure 2.16). Figure 2.16: If QuickTime is already installed. ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 14 The serial number for your copy of Discus is located on the install disc. You will need this the first time you open Discus. 6. You may now click Exit on the StudioJet Driver setup screen. Figure 2.20 ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 15 50 copies but you will need to reload the printer as it gets low on discs. • Disc Quality: You should use high quality ink-jet printable media. Recordex recommends water proof ink-jet me- dia by Kodak Media Products for best results. This media is available wherever you purchased your printer.
- Page 16 To print multiple copies you simple enter the number of copies you want to print in the printer dialog box and click print. Your StudioJet™ will automatically load, print and eject however many discs you request to be printed. ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 17 8.5 x 11. If this is the case then you should still set the margins to .3 and create your design in the upper left corner of the document. You can then print to the StudioJet and your image should be properly aligned. ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 18 2. Within the program you are using to create the disc label select Print from the File menu (make sure StudioJet is selected) Figure 4.1: Accessing Printer Properties and then click on Properties (Figure 4.2). Figure 4.2: StudioJet Printer Properties ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 19 Advanced Features: You can alter the saturation level by moving the slider from low to heavy. We do not recommend making changes to the dry time setting. Figure 4.4: Basics ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 20 Hub you will need to reduce the inner diameter setting under Standard Area Settings to 35mm. Mask Origin & Parameter Unit: Leave these set to factory defaults (0,0, x1mm) Figure 4.6: Mask Settings ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 21 Move Left: Enter a negative value in the X offset and click offset. Note: To save an offset value you must click the Offset button. Clicking OK will not save an offset change. Figure 4.8: Alignment ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
-
Page 22: Cleaning Ink Cartridges
Printers and Faxes, right-click on StudioJet and click on Printing Preferences. Then click on the Utilities tab and then click Clean. (See chapter 4 for further instructions). Follow the on screen instructions for cleaning the ink cartridges. ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1... -
Page 23: Frequently Asked Questions
SOLUTION: Use the disc alignment feature if you are using Discus to align the disc. Or alter the mask settings, or center offset as necessary. See Pages 20-21 for more information. ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1... - Page 24 Printer is waiting for a disc to be loaded or an error needs to be cleared before continuing. Cartridge LED Ink cartridges are getting low. Cartridge LED Flashing Printer cover is open or cartridges are installed improperly ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 25 Pentium® 233 MHz or higher, at least 256 MB RAM, USB 2.0 Port, Windows XP(SP2) or Windows Vista, 50 MB Free Disk Space. DIMENSIONS 17.7” x 9.5” x 20.7” WEIGHT Printer: 19 lbs; Shipping Weight 25 lbs POWER VOLTAGE 100-240VAC (Global Ready Universal A/C Power Brick) POWER FREQUENCY 50-60Hz ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
-
Page 26: Contact Technical Support
2. Read the Common Problems list. 3. Write down the model number & serial number of your duplicator. Model#: _____________________ Date of Purchase: _____________________ Place of Purchase: _____________________ 4. Call 478-237-5501 ask for technical support. ©2007 Recordex USA, Inc. All rights reserved. Version: 1.1...
