Summary of Contents for Recordex RX-100SA

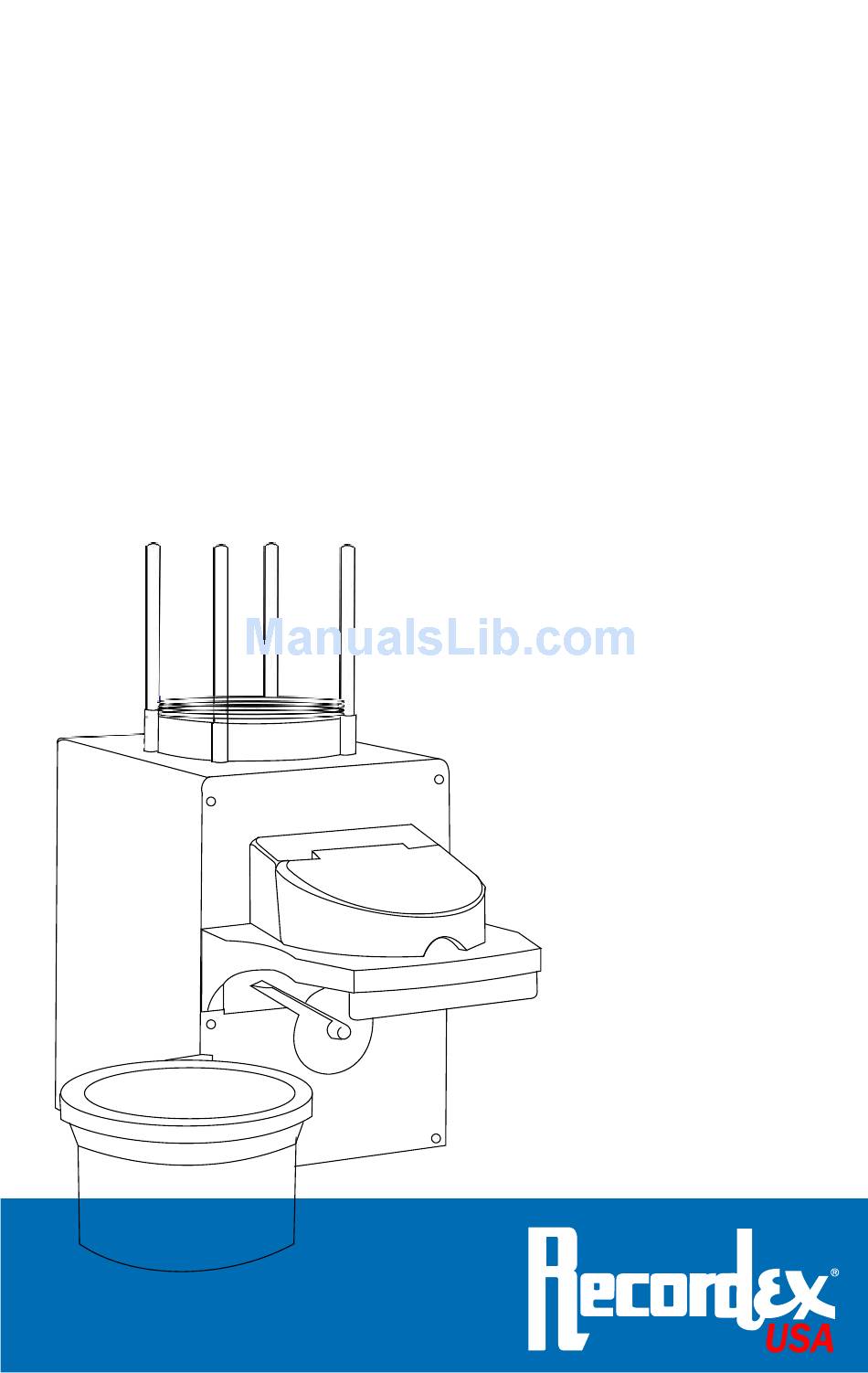

- Page 1 QUICKSTART GUIDE ™ Recordex RX-100 Standalone DVD/CD AutoLoader Duplicator...
- Page 2 RX-100™ then give us a call or send us a message. Service Phone: 478-237- Please duplicate responsibly and comply with all copyright rules. RecordexUSA is not responsible for the misuse of any RecordexUSA duplication equipment. Recordex® RX-100™ DVD/CD AutoLoader - QuickStart Guide...
- Page 3 STEP 1: Unbox and Verify Contents Verify the contents of your package against the image below. Save the box and packaging material for return shipment should your printer require service. Base Unit Input Tank Guide Rods 50-Disc Collection Tub Power Cable Disc Retrieval Rod* 100-Disc...
- Page 4 Plug end B into the rear of the base unit. Plug end A into a grounded 110V electrical outlet. 1. Connect the power cord to the RX-100SA. 2. Connect the power cord to the wall outlet. NOTE: Use only a grounded outlet. It is highly recommended that you pro- tect your autoloader from possible electrical damage by connecting it to a surge protector or an uninterruptible power supply (UPS).
- Page 5 STEP 4: Load Blank Media Into The Input Tank To fill the input tank start by placing a single disc into the input tank. This will give you a solid base to place the remainder of the blank disc stack. The input tank can hold 50 or 100 discs depending on which input tank guide rods are installed.
-
Page 6: The Control Panel
If you feel like you are lost just press the ESC button until you are back to one of the three main level menus: 1 to 1 Duplicate, Multi Duplicate, or Setup. Recordex® RX-100™ DVD/CD AutoLoader - QuickStart Guide... - Page 7 Duplication Modes & Installation of Optional Hard Drive The RX-100SA has two duplication modes: 1 to 1 Duplication and Multi-Master Duplication. A hard drive must be installed to operate in Multi-Master Duplica- tion mode. The unit is designed for easy installation of an optional hard drive.
- Page 8 STEP 6: Replace the panel cover. STEP 7: Power on your RX-100SA. The unit will automatically detect that the hard drive is present. STEP 8: Scroll to Setup, and press Enter, then scroll to Format Hard Drive and select DVD and press Enter.
- Page 9 Figure 5.3 Installing a Hard Drive STEP 1 STEP 2 & 3 CLOSE OPEN STEP 4 STEP 3 STEP 5 STEP 6 CLOSE OPEN Page 9...
- Page 10 It is recommended to copy from the hard drive if you are making a lot of copies. Recordex® RX-100™ DVD/CD AutoLoader - QuickStart Guide...
- Page 11 Multi-Master Duplication Multi-master duplication is a very convenient way to complete multiple small duplication jobs quickly. Simply setup each job by creating a disc stack with the master (source) disc on the bottom followed by however many blank discs you wish to copy. Stack as many job stacks as you wish (up to 100 discs) and then select Multi Duplicate and press Enter.
- Page 12 Warranty One Year Parts & Labor and Free Technical Support RX-100SA™ Autoloader, 50 Disc & 100 Disc Input Tank Guide Rods, 50 Disc & 100 Disc Collection Tubs, Tub Holding Arm, Power Cord, Disc Removal Tool, QuickStart Guide. Recordex® RX-100™ DVD/CD AutoLoader - QuickStart Guide...
- Page 13 Load a single disc first then add the remainder of the stack. This is much easer than trying to load the whole stack in one step. Included with your RX-100 is a handy little tool for removing discs from the output tub. Insert the disc removal tool into the stack of completed discs and then turn the output tub over.
- Page 14 Over burn mode default Disable Enable Copy mode DVD Burn Speed DAO* This controls the speed at which the target drive will attempt to burn DVD copies. * indicates the factory default setting Recordex® RX-100™ DVD/CD AutoLoader - QuickStart Guide...
- Page 15 Auto Compare Disable* = Auto Compare disabled Enable = Auto Compare enabled. After a success- ful copy the system will compare the copy to the source disc and report discrepancies. Read Error Skip Disable* = Read Error Skip disabled and discs will continue to burn even if read errors are detect- ed (this is discouraged).
- Page 16 If the autoloader develops a covered defect within the first year, Recordex will, at its op- tion, either repair or replace the autoloader at no charge, provided that the autoload- er is returned during the warranty period.
